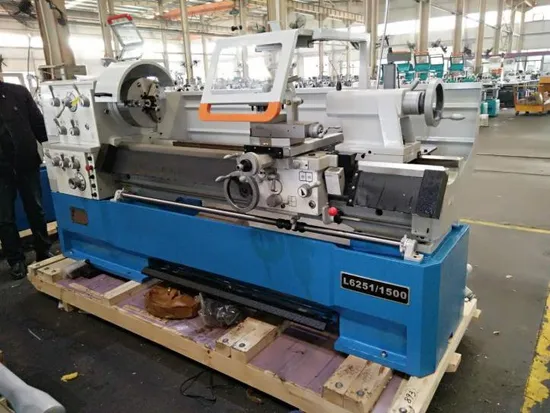

Precision Manual Price Torno Horizontal Parallel Mechanical Lathe Machine for Metal Turning
| US$7,200.00-9,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
L6241
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Manual
Automatic Grade
Automatic
Setting Mode
Table
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Wood Case
Specification
3000kg
Trademark
MacTech
Origin
Jiangsu
Product Description
Product DescriptionManual lathe is a metal cutting machine mainly used for machining forming surfaces such as inner and outer circles and threads. It achieves the manufacturing of various shapes and sizes of parts by turning rotating workpieces using a turning tool. The operation of manual lathes mainly relies on manual control, including adjusting speed, feed rate, and tool selection and installation, which have a direct impact on machining quality and efficiency.
| Precision ground and hardened bedways |
| With 2 precision D degree taper roller bearings on the spindle |
| Head stock gears are made of high quality steel ground and hardened more than HRC 48° |
| Integrated deluxe cast iron stand |
| Variable speed model for optional |
Accessories;
| Standard accessories | Special accessories |
| Three jaw chuck | Living center |
| Four jaw chuck | Taper turning attachment |
| Steady rest | Drill chuck |
| Follow rest | Stopper |
| Face plate | QCTP |
| Dead center | DRO |
| Thread chasing dial | Chuck cover |
| Reduction sleeve | Leadscrew cover |
| Splash guard | Tool post cover |
| Toolbox & tools 1set |
| major specifications | L6241 | |
| max. swing over bed | 410mm | |
| max. swing over cross slide | 224mm | |
| max. swing in gap | 640mm | |
| distance between centers | 1000/1500/2000mm | |
| spindle bore | 58mm | |
| taper of spindle bore | M.T.#6 | |
| range of spindle speed | 25-200rpm | |
| range of longitudinal feeds | 0.03-1.7mm/rev | |
| range of cross feeds | 0.014-0.784mm/rev | |
| range of metric threads | 0.1-14mm | |
| range of inch threads | 2-112 TPI | |
| diametrical pitchs range | 4-112 D.P. | |
| module pitches rage | 0.1-7 M.P. | |
| taper of tailstck bore | M.T. #4 | |
| pwer of mtor | 4KW/5.5KW | |
