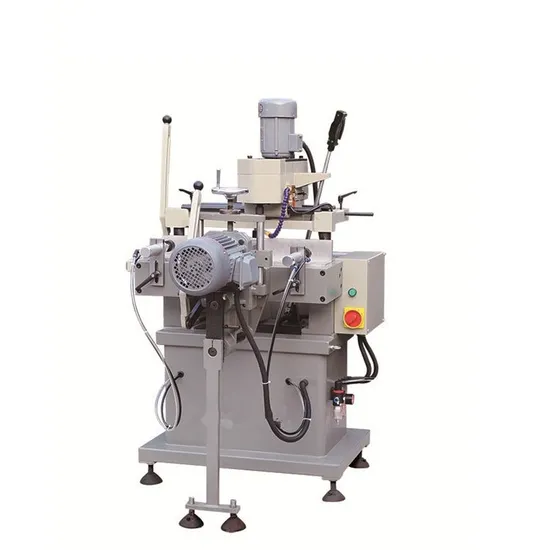

Aluminum Window Hardware Slot Copy Router Lock Hole Milling Machine
Basic Info.
Model NO.
CLZ3F-300*100
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
220V
Name
PVC Window Lock Hole Milling Machine
Applicable Industries
Construction Works
Operation Air Pressure
0.5~0.8MPa
Input Voltage
380V/50Hz
Input Power
2.25kw
Overall Dimension
1000*1130*1600mm
Machine Weight
260kg
Diameter of The Three-Hole Drilling Head
12mm
Centers Distance of The Three-Hole Drill
21.5*21.5mm
Cutter Diameter
5/8mm
Function
PVC Window Making Machine
Service
One Year Warrranty
Applicable Material
PVC /UPVC
Usage
Milling Lock Hole
Color
Customer′s Request
Transport Package
Wooden Box Package
Specification
PVC window welding machine
Trademark
TRUEPRO
Origin
China
HS Code
8479819000
Production Capacity
500sets/Year
Product Description
Aluminum Window Hardware Slot Copy Router Lock Hole Milling MachineEquipment features:
1.Used for copy-routing processing various kinds of holes,grooves and water-slots.
2.It has features of compact structure and small volume,the air pressure drives the clamping.
3.It can achieve continuous copy-routing milling,easy operation and safety.
Equipment Parameter:
| Model | CLZ3F-300*100 |
| Input Power | 2.25kw |
| Air Pressure | 0.6~0.8MPa |
| Power supply | 380v/50HZ |
| Diameter of the three-hole drilling head | 12mm |
| Centers distance of the three-hole drilling head | 21.5*21.5mm |
| Copy-routing range | 300*100mm |
| Cutter Diameter | 5/8mm |
| Overall dimension | 1000*1150*1600mm |
| Weight | 260kg |
Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with
well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and
stylish designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.
1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation
training. All of our engineers have passport.
4. If I make PVC window and door, how many basic machines do i need?
