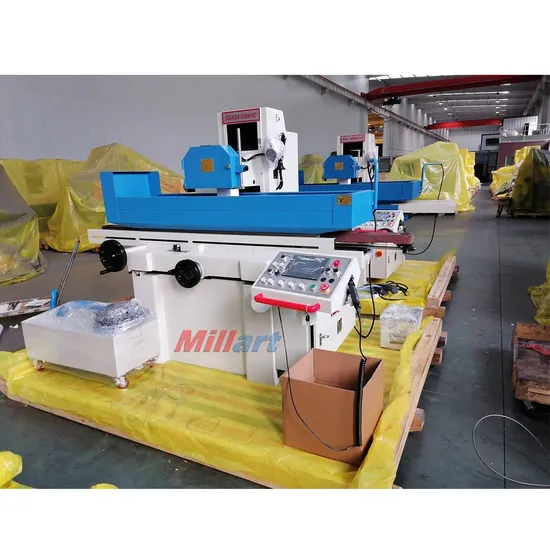

Factory Direct Sale Surface Grinder Machine Sga301000ah Sga301000ahr Sga30100ahd, Surface Grinding Machine

Product Description

Product description:
Technical parameter :
Feature :
Designed for continuous operation at maximum speed, very quiet operation, maximum accuracy and minimal heat accumulation ensure optimum machining results Grinding spindle runs in maintenance-free preloaded precision angular ball bearings
Automatic transverse and longitudinal feed
Rapid feed for setup to desired work height(HFS VC)
Adjustable roughing, finishing, and spark-out strokes hydraulic longitudinal table movement on Y axis(HFS VC)
Double table V-guide in transverse table, V-guide and flat guides in longitudinal table
Table guide ways are hardened, ground, and PTFE counter laminated-ensuring maximum wear resistance
High table load capacity for heavy parts
External hydraulic unit ensures high temperature stability
Automatic central lubrication
AH:Wheel head Manual up and down
AHR:Wheel head Motorized up and down
AHR:Wheel head servo motor up and down
Specification:

MODEL		Unit	SGA30100AH/AHR/AHD
Table size(W x L)		mm	305x1020
Max longitudinal travel		mm	1130
Max cross travel		mm	340
Max distance from spindle center to table		mm	580
Electro magnetic chuck size		mm	300x1000
Speed of table longitudinal movement		m/min	5-25
Table transverse movement	Auto feed	mm/min	0.1-8
	Rapid speed	mm/min	990
	Feed of handwheel	Mm/div	0.02
Wheelhead vertical movement	Auto feed	mm	0.005-0.05(AHD)
	Rapid speed	Mm/min	650(AHR) 480(AHD)
	Feed of handwheel	Mm/div	0.005
Grinding wheel	speed	rpm	1450(50Hz) 1750(60Hz)
	size	mm	350x40x127
Spindle motor		kw	4
Max loading capacity of table		KG	400
Gross weight		kg	3200
Package dimensions(L x W x H)		mm	2950x2220x2210

Standard accessories :
Wheel flange
Balancing arbor
Wheel exactor
Coolant tank
Working lamp
Tools box and tools
Wheel dresser stand
Standard electro magnetic chuck
Leveling wedge and bolt
Built in electro magnetic chuck controller
PLC auto grinding controller only for AHD models
Optional accessories :
Dust collect
Balance stand
Wheel flange
Coolant tank with magnetic separator
Coolant tank with paper filter
Coolant with magnetic separator and paper filter
Parallel wheel dresser screw rod type
