Good Price 3 System Computerized Flat Knitting Machine
| US$4,000.00-9,800.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
AS52-3S
Knitting Product Type
Sweater
Knitting Style
Flat
Needle Style
Latch Needle
Needle Bar Style
Flatbed Knitting Machine
Computerized
Computerized
Certification
CE, ISO9001: 2000
Condition
New
Gauge
1.5g-18g
System
Three System
Speed
1.6m/S
Sinker
Have
Racking
Double Racking
Roller
Double Roller
Control System
Hengqiang or Rayen
Product
Sweater ,Hat , Scarf ,Blanket,Glove
Transport Package
Wodden Case Packing
Specification
2.85*1.11*1.8M/1100KGS
Trademark
Arrow Star
Origin
China
HS Code
8447202000
Production Capacity
2000sets/Month
Product Description
Product Description| Gauge | 1.5G, 2G, 3G, 3.5G, 5G, 7G, 8G, 9G, 10G, 12G, 14G, 16G, Multi-gauge 3-5-7G |
| Knitting width | 52inch, (56inch, 60inch, 66inch, 68inch, 72inch, 80inch, 100inch, 120inch optioned) |
| Knitting function | Knitting single or double jersey, full needles, irregular jacquard, intarsia, cables, pointel fabric. |
| Knitting system | Single carriage with double system |
| Knitting speed | Max 1.6m/s |
| Stitch density | Stepper motor control, 24-segment density choices subdivision technology, adjustable range: 0-650degrees, more accurately control the length of the garment, using a dosed-loop system monitoring motor current location. |
| Dynamic stitch | Various density changes and controls can be carried out in the same line. |
| Double Racking | Motor-driven. Max 1 inch racking each side (2 inches total). 1/2 and1/4 pitch also available from any position. |
| Takedown device | Two monitor control roller, UP-POSITION roller |
| Transfer | Simultaneous transfer, front or back, independent of carriage direction. Split stitch possible without exchanging yarn carriers. |
| Sinker system | The motor control sinker system, the new design of the sinker can play a better weaving function. |
| Needle selection | Full jacquard selection via special solenoid actuators. 8 sections selection needles. |
| Yam feed roller | Prevention coiling device yam feed roller, Electroplating ceramic roller, effective anti static. |
| Yam ariers | The new design of the color change device(lever principle), to eliminate the yarn feeder does not take. 2 sets of yarns are equipped with rollers to reduce yam breakage. |
| Top tension | 24units. One-touch easy threading. Large knots cause machine stop. Small knots cause 0-9 courses at specified knot detection speed, then automatically resume at set speed. |
| Stop motion | Yarn break, large knot, fabric pileup, shock detection, piece count, Over-torque, program error, etc. |
| Drive system | Belt drive. AC servo motor. No lubrication necessary. |
| Safety devices | Full safety cover for noise-suppression and dust-proofing with stop motion sensor and interlock mechanism. Emergency stop switch. Emergency power off device. Ultra-low speed "crawl" setting. |
| Needle detector | Knitting area alarm, non alarm outside weave area. Automatic reset |

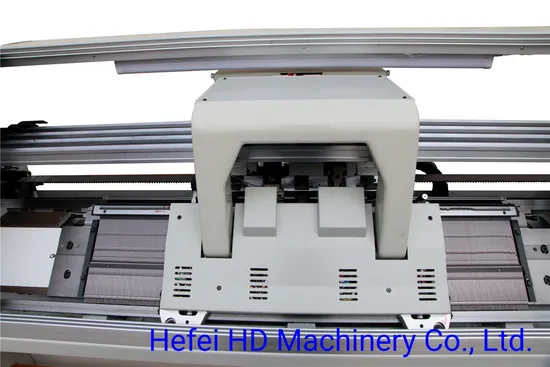

Detailed Photos
