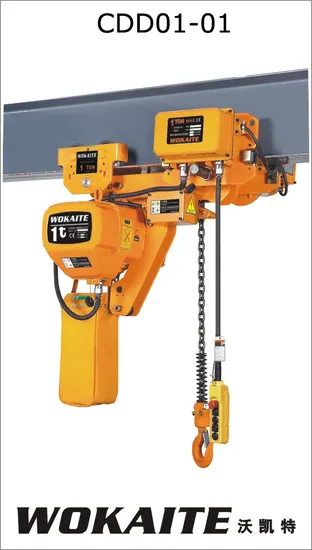

1t Low Headroom and Super-Low Lifting Loop Chain Electric Hoist

1t Low Headroom and Super-Low Lifting Loop Chain Electric Hoist

US$750.00-1,350.00 1 Piece (MOQ)

Basic Info.

Model NO.
SSDHL01-01L
Application
Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
Type
Electric Hoist
Sling Type
Chain
Lift Speed
6.6m/Min
Maximum Lifting Height
>20m
Chain Falls
1
Certification
CE, ISO9001:2000
Condition
New
Color
Orange
Motor Insulation
Class F
Running Model
Moving
Structure
Hook Crane
Installation
All-Terrain Crane
Type of Work
Middle-Level
Power Supply
3p 380V
Control Voltage
24V/36V/48V
Rotation Speed
1440r/Min
Delivery Day
7-30 Days
Motor Power(Kw_)
0.8
I Beam(mm)
58-153
Transport Package
Wood Carton
Specification
0.5 ton-10 ton
Trademark
WOKAITE
Origin
Zhejiang China
HS Code
8425110000
Production Capacity
1000sets/Month

Packaging & Delivery

Package Size
70.00cm * 43.00cm * 64.00cm
Package Gross Weight
60.000kg

Product Description

Product Description:
WOKAITE Electric Chain hoist is typical of unique optimal structure in shortening the distance between the machine body and the beam tracks, applicable to operations in side low buildings, especially suitable for use in temporarily erected plant buildings or on the sites where expansion of effective hoisting spaces inside the buildings is required the Most important parts of the Machine is Chain and brake system. WOKAITE 0.5-10t Low Headroom Electric Chain Hoist Limited switch
The limited swtich device is installed.In order to prohibit the chain from exceeding for safety.
Phase sequency relay
It is one of the control relay.Phase sequence automatically identifying the protective relay.Protect the low headroom electric hoist for power supply phase sequence after the reversal and cause equipment damage.
Chain
G80 ultra heat-treatable alloy steel chain.It can be safety used in severe environment.Such as rain,sea water and chemicals.
Hook
It is hot forging,high strength.Lower hook can be rotated 360.Lower hook is made up of forged steel hook with a heavy-duty hook latch.The material and heat treatment technology is very mature in hook applications.
Chain wheel
It can be ensure that the chain does not fall off&don't move,use more secure.We should checking the lifting chain before using.Ensure the hook is not reversed.
Chain bag
Canvas chain bag is standard configuration,steel bag is available for long chain.
Remote control
Waterproof,light,durable.

Model SSDHL
0.5-01L 01-01L 1.5-1.0L 02-01L 02-02L 2.5-01L 03-01L 03-02L 05-02L 7.5-03L 10-04L
Capacity(t) 0.5t 1t 1.5t 2t 2.5t 3t 5t 7.5t 10t
Lifting speed(m/min) 7.2 6.6 8.8 6.6 3.3 5.4 5.4 4.4 2.7 1.8 2.7
Motor power(Kw) 0.8 1.5 3 3 1.5 3 3 3 3 3 3
Rotation speed(r/min) 1440r/min
Insulation grade F
Power supply 3-phase 380V 50Hz
Control voltage 24V/36V/48V
No.of chain 1 1 1 1 2 1 1 2 2 3 4
Sepc.of load chain Φ6.3 Φ7.1 Φ10.0 Φ10.0 Φ7.1 Φ11.2 Φ11.2 Φ10.0 Φ11.2 Φ11.2 Φ11.2
I Beam(mm) 58-153 58-153 82-178 82-178 82-178 100-178 100-178 100-178 100-178 150-220 150-220

Dimensional Drawing:
Model H A B W U
SSDHL0.5-01L 440 460 230 585 400
SSDHL01-01L 480 520 260 630 445
SSDHL1.5-01L 570 615 295 720 505
SSDHL02-01L 570 615 295 720 505
SSDHL02-02L 565 520 260 665 445
SSDHL2.5-01L 640 615 295 775 529
SSDHL03-01L 640 615 295 775 526
SSDHL03-02L 685 615 295 750 503
SSDHL05-02L 740 615 295 825 541
SSDHL7.5-03L 890 615 295 1020 730
SSDHL10-04L 850 615 295 996 700
