Melamine Veneer Wood Door Hydraulic Hot Press Machine

Melamine Veneer Wood Door Hydraulic Hot Press Machine

US$12,500.00-13,000.00 1 Set (MOQ)

Basic Info.

Type
Hot Press Machine
Automatic
Semi-Automatic
Certification
CE, ISO
Usage
for Plywood Processing
Customize
Available
Color
Customize
Hot Press Plates
2500*1300*42 mm, 4 Sheets
Nominal Pressure
160 Tons
Opening Size
130 mm
Electrical Control Style
Semi-Automatical
Transport Package
Plastic Film
Specification
2960*1300*1800 mm
Trademark
ZHONGHE
Origin
Linyi City China
HS Code
8465960000
Production Capacity
10 Sets/Per Month

Product Description

Product Parameters
TECHNICAL PARAMETERS
160T 3 layers door panel hot press machine
1 Model BY21-48-160T-3
2 Hot press plates 2500*1300*42 mm, 4 sheets
3 Hydraulic pistons diameter φ140 mm, stroke 390 mm, 4 pieces
4 Nominal pressure 160 Tons
5 Opening size 130 mm
7 Electrical control style Semi-automatical
8 Hydraulic system limit pressure 25 Mpa
9 Main pump 100:100 double vane pump, 7.5 KW motor
10 Pressurized pump 10 ml/rev, 5.5 KW motor
11 No-load closing time 13 Seconds
12 Heating medium heat transfer oil or steam
13 Main frame steel thickness 20 mm, 12 mm
14 Frame style welding frame
15 Cross beams size 450 mm, 450 mm, 300 mm
16 Machine size 2960*1300*1800 mm
17 Total weight 8000 KGS

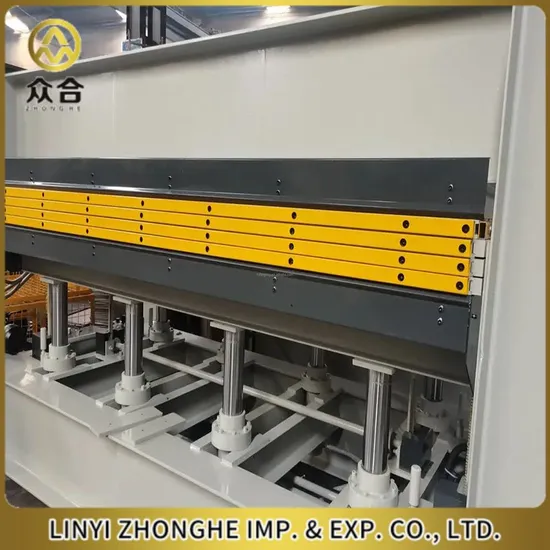

Detailed Photos

PRODUCT PICS
(MAIN PART)
(DETAILS)
Company Profile
Linyi Zhonghe Machinery Company is professional in solutions of wood veneer production machine, plywood production machine, particle board machine, MDF board machine, saw mill machine, related machine, materical and spare parts for wood-based panel machinery.
Main business range is as following:
1-wood veneer production machine:
Log cutting machine, log debarker, core veneer peeling machine, face veneer peeling machine, wood veneer dryer, wood veneer clipper, wood veneer stacker, veneer tape, etc.
2-plywood production machine, film faced plywood machine:
Core veneer composer, putty spreader, veneer sanding machine, veneer jointer, glue powder, glue making machine, glue mixer, glue spreader, base plywood forming machine, cold press, hot press, boiler, Double Dimension saw, sanding machine, wood dust collector, stainless steel plates, cushion pads, etc.
3- Particle board machine and MDF board machine.
4-Saw mill machine: Vertical band saw, horizontal band saw, saw blade sharpener.
Packaging & Shipping
FAQ
1.Can the product be customized?
Yes, we support product customization. Customize different products according to your needs.
2.Does the product have after-sales service?
Yes, we offer both online and offline service with a one-year warranty and lifetime after-sales.
3.Why choose us?
Excellent quality and service, as well as cost-effective products.
4.How to ensure the quality of the product?
Welcome to our factory to see the production process.
5.Who is responsible for the installation and commissioning of the machine?
We have more than 15 technicians on site to guide, install and commission the equipment.
