Pet Mineral Water Bottle Making Machine/Mineral Water Pure Water Whole Production Line

Product Description

Product Description

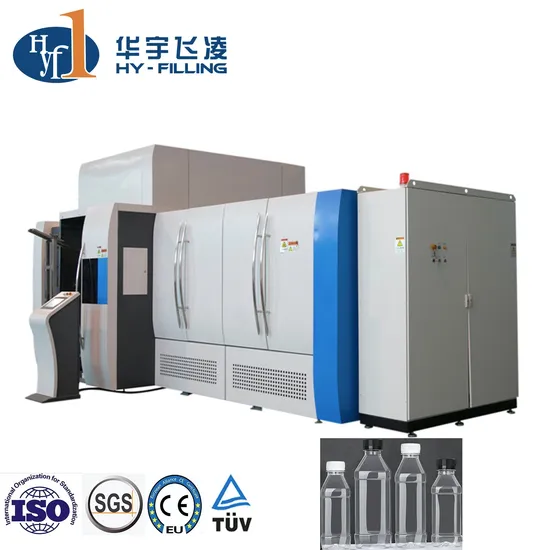

PET bottle -Rotary blow molding machine
1) Rotary blow molding machine
2) CE certificate
3) ISO9000: 2000 Certificate
4) Volume: 200-5L
5) PET bottle
General description
The full automatic rotary stretch blow molding machine is widely used for the blowing plastic container (including hot filling bottle), suitable for the product of water, carbonated beverage or cold bottles.
With the structure of multi-mold in one machine, can complete the actions of preform unscrambling, preform feeding, heating, feeding, stretch, blowing, cooling and bottle conveying etc full automatically. The main components on the machine are of international famous brand. The machine owns the advantage of high automation, reliable and stable operation and low power consumption.
High-speed rotary filling PET bottles blow-filling-capping Combi-block is based on "high-speed blow molding machine unit high-speed filling machine unit "and " high speed capping machine unit ", equipped with control system and on-line detection system. Through the optical, mechanical, electricity, gas, liquid and other disciplines comprehensive application with image recognition technology , the application of synchronous servo control system , allowing customers to achieve the integration of multiple unit control and production equipment , achieve the production line scientific layout , seamless and integrated control , improve the entire line of production efficiency, reduce investment costs, reduce energy consumption and maintenance costs of the integrated production capabilities.
Details Images
Blowing part
Base taking, base feeding, bottle taking and bottle arranging fully are automatically completed with manipulator for avoiding middle pollution.
The design of the recycling unit prevents the preform from getting bound up in the unscrambler.
Water cooling plate: cooling bottle neck is to avoid neck deformation during heating.
Filling part
304/316 Stainless steel high precision filling nozzle
Filling volume adjustable in fine rank, same liquid level after filling
All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
304/316 stainless steel filling pump
Capping part
Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
All 304/316 stainless steel construction
No bottle no capping
Automatic stop when lack of bottle

Technical parameters

Rated Capacity	12000-36000BPH (500ml)
Filling Method	Gravity Filling
Applicable Bottle	PET Bottle, Diameter 50-92mm, Height 150-320mm
Applicable Cap	Normal Standard Cap

We provide the Complete turnkey project for beverage production line includes: Water Treatment System (Water Filtration) Preparation/Processing System (Mixing System for Drinks like CSD, juice etc) Injection molding machines (for pet preform) Bottle Blowing Machine (Making plastic bottles) Air Conveyor (Transport empty bottles) Filling Machine (Filling product into bottles) Cap elevator (Transport cap) Blow dryer (Blow away water drops) Flat Convey (Transport bottle) Code Printer (Printing the date on the filled bottle) Labeling Machine (Labeling for filled bottle) Bottle Packing Machine (package the filled bottles) Palletizing Machine (to palletize the cartons) Auxiliary Machines
1.Water treatment
Water treatment is equipped for pure water, mineral water, and water used in beverage drink. It contains RO, natrium filter, ultra filter, activated carbon filter, ion exchanger, ozone processor etc.
2.Bottle Blowing Machine
Divided into: semi-automatic bottle blowing and full automatic bottle blowing machine.
Suitable for: PET bottle.
Bottle size: 500ml-2L
3.Filling Machine
The machine is combined with rinsing, filling and capping, which special designed for PET bottled. It is stable characteristic, advanced technology, nice appearance and complete function.
4.Filled Bottle Conveyor System
Conveying belt is designed by module, component can be interchanged easily, structure is compact, noise is little, easy assembling and maintaining, have flexibility to combine the bottle type according to the different capacity.
5.Packaging System
Customized: Sleeving Label Machine, Film Shrink-wrapping Machine, Palletizing machine, Date code printer etc.
