US$10,000.00-50,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Certification
RoHS, ISO 9001:2000, ISO 9001:2008, CE
Suitable for
Aluminum, Carbon Steel, Stainless Steel
Hydraulic Press Brake
Hydraulic Bending Machine
Control System
Estun E21 Nc System
Transport Package
in Container
Specification
bending width to 6000mm
Production Capacity
2000PCS/Year
Product Description

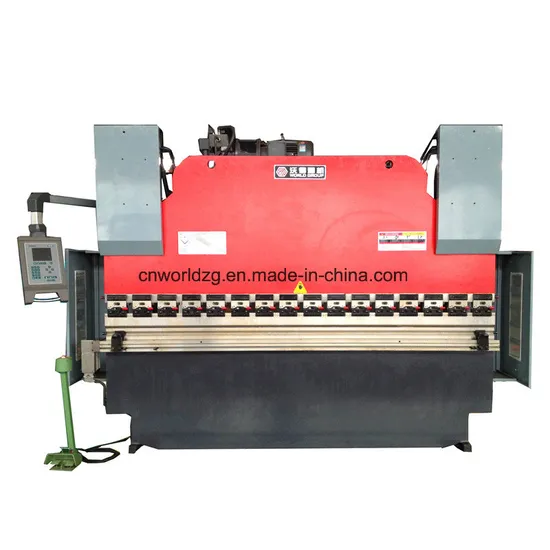

4 axis cnc press brake with famous cnc system
Features:
1) A fully welded steel construction with full strength and rigidity.
2) Hydraulic down-stroke construction.
3) Synchronizing mechanism of the RAM adopting torque-tube and mechanical stop unit, stable and reliable.
4) Deflection-compensating mechanism of wedge construction.
5) Power fast adjustment, manual fine adjustment and counter-showing for the RAM stroke.
6) Front-controlled backgauge by power fast-adjustment & manual fine-adjustment with counter display.
Details:
Specifications
Items | unit | WC67Y-40/2500 | WC67Y-63/2500 | WC67Y-63/3200 |
Nominal pressure | kN | 400 | 630 | 630 |
Length of table | mm | 2500 | 2500 | 3200 |
Distance between uprights | mm | 1900 | 2000 | 2300 |
Throat depth | mm | 200 | 250 | 250 |
Ram stroke | mm | 110 | 120 | 120 |
Daylight | mm | 370 | 380 | 380 |
Approach speed | mm/s | 120 | 110 | 100 |
Bend speed | mm/s | 10 | 10 | 9 |
Return speed | mm/s | 100 | 90 | 90 |
Main motor | kW | 5.5 | 5.5 | 5.5 |
Length | mm | 2600 | 2600 | 3400 |
Width | mm | 1350 | 1380 | 1400 |
Height | mm | 2100 | 2300 | 2400 |
|
Items | unit | WC67Y-80/2500 | WC67Y-80/3200 | WC67Y-80/4000 |
Nominal pressure | kN | 800 | 800 | 800 |
Length of table | mm | 2500 | 3200 | 4000 |
Distance between uprights | mm | 1900 | 2300 | 1900 |
Throat depth | mm | 320 | 320 | 320 |
Ram stroke | mm | 120 | 120 | 120 |
Daylight | mm | 380 | 380 | 380 |
Approach speed | mm/s | 120 | 110 | 100 |
Bend speed | mm/s | 10 | 10 | 9 |
Return speed | mm/s | 100 | 100 | 90 |
Main motor | kW | 7.5 | 7.5 | 7.5 |
Length | mm | 2600 | 3400 | 4100 |
Width | mm | 1400 | 1400 | 1400 |
Height | mm | 2300 | 2300 | 2300 |
Items | unit | WC67Y-100/2500 | WC67Y-100/3200 | WC67Y-100/4000 |
Nominal pressure | kN | 1000 | 1000 | 1000 |
Length of table | mm | 2500 | 3200 | 4000 |
Distance between uprights | mm | 1900 | 2400 | 3000 |
Throat depth | mm | 300 | 320 | 320 |
Ram stroke | mm | 160 | 150 | 120 |
Daylight | mm | 380 | 380 | 380 |
Approach speed | mm/s | 120 | 110 | 100 |
Bend speed | mm/s | 10 | 10 | 9 |
Return speed | mm/s | 100 | 100 | 90 |
Main motor | kW | 7.5 | 7.5 | 7.5 |
Length | mm | 2600 | 3300 | 4000 |
Width | mm | 1600 | 1800 | 1800 |
Height | mm | 2500 | 2500 | 2300 |
