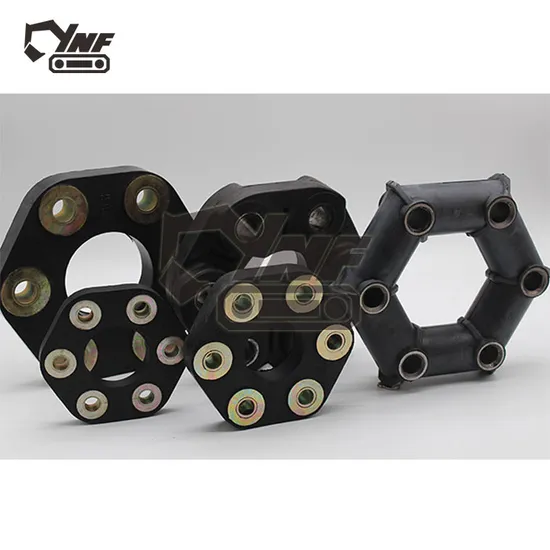

Jurid Flexible Coupling, Jurid Rubber Coupling

Product Description

Product Description

Place of Origin:	Guangdong, China (Mainland)	Brand Name:	Kubota excavator coupling	Model Number:	JURID couplings
Application 1:	Mini Excavators	Application 2:	Compact Loaders	Application 3:	Forlifts
Application 4:	Construction machines using a hydraulic drive system	Coupling model A:	BoWex MONOLASTIC size 28	Coupling model B:	BoWex MONOLASTIC size 32
Coupling model C:	BoWex MONOLASTIC size 50-140	Coupling model D:	BoWex MONOLASTIC size 50-170	Material:	Original material-GF-PA6
Availability:	In stock

Packaging & Delivery

Packaging Details:	JURID couplings 1. spare parts, with carton package as usual for mini order 2. Main pump, wooden box 3. if need wooden pallets, the customer needs to pay for the wooden pallet charges
Delivery Detail:	1-7 working days after payment

1. Material options for H series Couplings

H series coupling we produced is made of Hytrel. It has elasticity like that of rubber. It is excellent in absorbing vibrations and shocks. It also excels in resistance to heat, low temperature and oil.

Input and output can be connected and disconnected easily merely by moving axially. By using a unique claming mechanism, mounting in a spline shaft is possible. Hub and spline shafts are completely fixed by using a clamping hub of the mechanism. No fretting wear is caused.
2. Technical Data

COUPLING "H" SERIES TECHNICAL DATA
SIZE			30H	40H	50H	110H	140H	160H
TECHNICAL DATA
DESCRIPTION	SYMBOL	UNIT	500	600	800	1200	1600	2000
Nominal Torque	Tkn	Nm
Maximum Torque	Tkmax	Nm	1400	1600	2000	2500	4000	4000
Maximum Rotational speed	Nmax	Min-1	4000	4000	4000	4000	3600	3600
COUPLING "A" SERIES TECHNICAL DATA
SIZE			4A/4AS	8A/8AS	16A/16AS	25A/25AS	30A/30AS	50A/50AS	140A/140AS
TECHNICAL DATA
DESCRIPTION	SYMBOL	UNIT	50	100	200	315	500	700	1700
Nominal Torque	Tkn	Nm
Maximum Torque	Tkmax	Nm	125	280	560	875	1400	2100	8750
Maximum Rotational speed	Nmax	Min-1	7000	6500	6000	5000	4000	4000	3600

FAQ
Why chose us
A. 30 yease experience in the line of the market, produce high quality excavator spare parts
High quality at competitive price.
B. Factory manufacturer, factory price
C. One-stop shopping. We have Trading company based on our factory, supply with various spare parts for your need, with high quality at company price, one-stop shopping, save your time to searching the parts you need urgent.
D. Timely delivery
E. Various of transportation way: Sea, Air, Bus, Express, etc
F. Parts available in stock
Note:
A. In order to give you fast and accurate pricing information, we need some details about your engine/application and the part number of the part you want.
B. If you can not find the parts you want, please contact us
Guangzhou Xiebang Machinery Co., Ltd

Web: ynfmachinery.en.made-in-china.com
