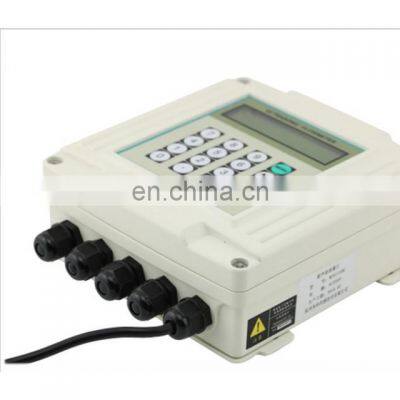

Taijia TUF-2000SW variable area flow meters ULTRASONIC water flow meter digital 0mm

Product Description

Product Description
Product DescriptionSpecificationTUF-2000SW Fixed ultrasonic water flowmeters Principle Transit-time ultrasonic flowmeter Power Supply DC8-36V or AC85-264V(Optional) Accuracy ±1% Power Consumption 1.5W Display 2x20 character LCD with backlight, support the language of Chinese, English, Italy, Turkish Dimension 132*150*85mm(convertor) Pipe material Steel, stainless steel, cast iron, copper, cement pipe, PVC, Aluminum, glass steel product, liner is allowed Data Interface Insulate Rs485 serial interface, upgrade the flowmeter software by computer, support the MODBUS. Pipe diameter 25-6000mm Special Cable Twisted-pair cable, generally, the length under 50 meters, select the Rs485, transmission distance can over 1000m Straight pipe Transducer installation should be satisfied: upstream10D, downstream5D, 30D from the pump. Pipe material Steel, stainless steel, cast iron, copper, cement pipe, PVC, Aluminum, glass steel product, liner is allowedSensor OptionSensor Options for wall mounted ultrasonic flow meterInsertion sensor Thread connections sensorClamp on sensorSensor Types Spec. Model Measurement Range TemperatureClamp on Small size TS-2 DN25-DN100 -30-90℃ Medium Size TM-1 DN50-DN700 -30-90℃ Large size TL-1 DN300-DN6000 -30-90℃High temp clam on Small size TS-2-HT DN25-DN100 -30-160℃ Medium Size TM-1-HT DN50-DN700 -30-160℃ Large Size TL-1-HT DN300-DN6000 -30-160℃Insertion Standard TC-1 DN80-DN6000 -30-160℃ Lengthen TC-2 DN80-DN6000 -30-160℃ πType(SUS304 thread connection) G1 DN15-DN32 -30-160℃Pipe Standard(Carbon steel thread connection) G2 DN40-DN1000 -30-160℃FeaturesDimensionsWall mounted type ultrasonic flow meter Title goes here.TUF2000B wall mounted Fixed ultrasonic flow meter can be added SD card the price will be addedInstallation method for TUF-2000SW Fixed stationary type ultrasonic flow meterTUF2000SW wall mounted ultrasonic flowmeter can work with temperature sensor CT10 , used as ultrasonic engergy meter, and it also can work with clamp on sensor and thread connection sensor & insertion sensor.Packing & DeliveryAccessories1.5m×2 Transducer Cable for sensor2. Clamp Fixture3. Spare ConnectorsCompany ProfieDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, hand held ultrasonic flow meter, portable ultrasonic flow meter, wall mounted ultrasonic flow meter, fixed ultrasonic flow meter; electromagnetic flow meter, insertion flow meter, vortex flow meter, gas flow meter, rotameter, turbine flow meter, thermal mass flow meter. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.Recommend ProductsTUF-2000H Hand held ultrasonic flow meterTUF2000H hand held ultrasonic flow meter is a battery power ultrasonic flow meter ,the capability of a full size flow meter. it is carefully designed for portability and easy for use .TUF2000M Modular ultrasonic flowmeterThe TUF-2000M modular ultrasonic flow meter can work alone without a LCD and Keypad module, the module can be used alone as a flow meter. TM8812 Ultrasonic thickness gaugeTEM82E electromagnetic flow meter UTG21-PY ultrasonic level meter
