Automated Rack Warehouse Stacker Crane as/RS Narrow Aisles Storage Crane System

Product Description

Automated Rack Warehouse Stacker Crane AS/RS Narrow Aisles Storage Crane SystemProduct DescriptionStacker Crane AS/RS for pallets is an automated system that efficiently stores and retrieves goods, replacing manual warehousing tasks.
The storage and retrieval machine(SRM) operate as a crane that moves horizontally within a single aisle.
Stacker cranes are machines designed to store and retrieve pallets automatically. They move in length, height, and depth to load and unload goods from racking structures in a highly agile, precise manner.
HYD stacker cranes are equipped with state-of-the-art technology, significantly increasing warehouse productivity and maximising space utilisation to boost storage capacity. Moreover, they help reduce errors and risks associated with manual operations.
Product Features
At HYD, we are a premier designer and manufacturer of material handling equipment and systems. One of our core product offerings is stacker cranes, which are available in standard and custom variations. Key features include:
♦ Stacker Crane Controls up to 6000kgs. load capacity
♦ Compatibility with multiple lifting attachments, carriages, and forks
♦ User-friendly design with four motion motorized movement and pushbutton operator controls
♦ Solid-state controls with variable speeds capabilities for smooth and precise positioning
♦ 4-Bar insulated conductor system for trouble-free and continuous power supply
♦ Trolley wheels that remain within bridge beams to prevent potential derailment
♦ On-board operator cage, two hoist brakes, hoist overweight limit, hoist free fall catching system
♦ Narrower aisle space requirements than conventional forklifts
♦ Maximum stability at high positions, minimum sway at any elevation
Related Components
Efficient Automated Movement
Storage / Retrieval Machine (S/RM)
Our S/RM enables efficient horizontal and vertical positioning movement within the AS/RS, providing versatility across many applications regardless of depth, height, or width constraints.
Double Mast Design: Provides added stability for heavier loads and higher speeds, supporting heights up to 140 feet.
High Speed: Achieves horizontal speeds of up to 900 ft./min and vertical speeds of 400 ft./min.
Load Capacity: Capable of handling loads up to 2 x 3,500 lbs for dual-load machines, and up to 5,000 lbs for single-load machines. Streamlined Material Flow
Conveying Systems
Our systems ensure efficient, continuous, and accurate movement of goods within the AS/RS, enabling seamless operations across diverse warehousing configurations.
Seamless Integration: Works in harmony with S/RMs and other devices commonly used in automated systems such as stretch-wrappers, label applicators, stackers, dispensers, staging systems, etc.
Precision Control: Provides real-time monitoring and precise control for reliable product movement throughout the warehouse.
High Throughput: Engineered to handle large volumes, meeting the demands of rigorous order fulfillment schedules.
Durability and Reliability: Built with robust components for continuous operation and minimal maintenance.ASRS Racking
ASRS racking offers compact storage in high bay warehouses where goods need to be accessed quickly. Pallets are retrieved efficiently for fast order fulfilment through software integration. Orders can be consolidated for shipment, streamlining warehouse operations.
ASRS rack structures are engineered to optimise space in high-bay warehouses. The system is manufactured with precision and is fully bolted to thefloor slab. This offers completely straight and robust racking catering to weight of goods, crane forces as well as local criteria such as environmental loads, soil type sand seismic zone requirements.
We also offer full product engineering certification and detailed trace ability, which under pins the product's structural integrity and thesafety of any installation.

Racking	Structural feature: ASRS System are usually equipped with pallet racking and drive-in racking, both of which are composite structure. Steel panels and wooden panels are available for loading with good capacity. Conveyors will do the loading and unloading job under the instruction from the central computer. ASRS System is mainly used in the food, tobacco, electronic,mechanical and armament industry.

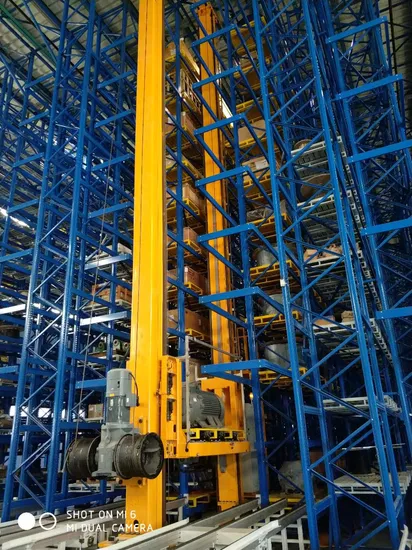

Stacker	Structural feature: Double upright structure, steady and reliable, vector frequency conversion drive and encoder position control,mechanical and electronic safety devices to ensure safe using of the system; All the way tracing technology by information transferring; Electric components are imported from abroad; Touching screen interface for easy operation; Making manual,semiautomatic, automatic and linkage control come true; Used in many situations by combining with other logistics equipment.
Conveying system	Structural feature: Conveying system is usually equipped in the front or back of warehouse for conveying goods here and there,bridging the procedures done by forklifts and stackers by using rolling conveyor or chain conveyor and combining with lifts,rotating devices and other equipments.
Controlling system	Structural feature: Communicating with WMS and ECS through OPC agreement, PROFIBUS bus network, set up by Siemens S7-300controller can operate all conveyors offline, doing conveying of goods automatically. Please refer to the attached drawing for details of conveying system.
WMS System	Hardwares of WMS System: Star network structure, network sever, RF server, computers for management and monitor, RF base station and RF terminal for in/out warehouse of goods
	Softwares of WMS System	Operating system: WINDOW 2000X SEVER
		Data-base: MS SQL SEVER 2000X
		Warehouse management software: WMS
		Equipment controlling software: WCS
		Bar code management software: RFS

FAQ Q. What we do ?
Pallet Type Automated Storage and Retrieval System (Unitload AS/RS)
Box/ Container/ Crate/ Case Type Automated Storage and Retrieval System (Miniload AS/RS)
Shuttle Storage & Sequencing system
Rack-supported building type AS/RS
Semi-automated Radio Shuttle System
Electrical Mobile Racking System
Floor conveying & sortation system
Automatic Truck/Trailer Loading System
In HUAYIDE, you'll get turnkey solutions for engineering & consulting , design & manufacturing, implementation & training, commissioning & after-sale service. With the best throughput capacity to really in-house all your warehousing requirements, grow your business in a cost effective way.
Q. Why choose us?
Complete mastery of the process
Self-developed, engineered, produced and installed;
Very competitive pricing
Manufacturing in Asia save you up to 50%!
Integrated by us save you up to 25% more!
Successful cases backup
Projects in various industries ready for you to visit;
We upgrade on existing successful experience;
High-efficient
Instant communication are available 24/7/365;
Solutions for RFQ shall be obtainable within 36 hours;
Professional team work
We care and carry out your every single requirement;
We trained our engineers to speak English;
Reliable & Flexible
We study your market local regulations to comply with;
Credible backup documents for your evaluation;
Q. How we work?
Step 1 Define
HUAYIDE Solutions' engineers work with project stakeholders to determine project objectives
Step 2 Measure
Information is collected to help our engineers better understand your business.
Step 3 Analyze
Analyze data from your operating systems and create models that predict future states
Step 4 Design
Analyze data from your operating systems and create models that predict future states.
Step 5 Validate
System costs are estimated and a complete analysis is done to determine feasibility of each alternative.
Step 6 Client Presentation
Client is given final presentation of costs and best solution.
