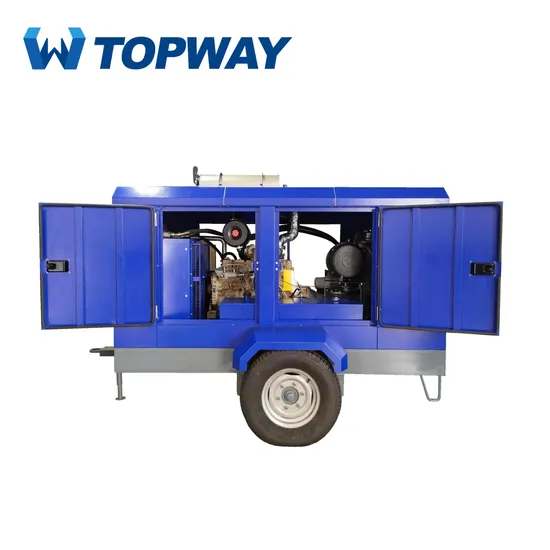

Dm12/10 12m3/Min 10bar Portable Screw Air Compressor with Diesel Engine

Product Description

DM Series Diesel Engine Mobile Rotary Screw Air Compressor
Product Description
MOQ: 1SET
Payment: T.T
Delivery time: 10-30 days
Start Port: Xiamen port,China.
Certification: CE GCCA
Packing: Paper box
Working pressure: 7-40BAR
Capacity: 6.0-40.0m³/min
Accept customerization
Twin rotary screw air end
Our high efficient twin rotary screw air end uses a large diameter rotor and is directly connected to the diesel engine using a highly flexible coupling. It does not require a speed increasing gear, and the rotation speed is in line with the diesel engine's needs, making it efficient, reliable and effective over a long service life.
Diesel engine
The Cummin.s diesel engine features a strong power and low diesel consumption, thus meeting international emission standards. We are able to provide all-round after-sales services and clients are always offered our quick, high quality services.
Air consumption control system
Users can adjust the air intake within 0-100% according to actual air consumption and adjust the diesel engine throttle to ensure minimum diesel consumption.
Intelligent control system
An automatic monitoring of the compressor's operating parameters, including air displacement pressure, temperature, speed, oil pressure, water temperature and oil tank level in the diesel engine can all be accomplished using an intelligent control system, which also features an automatic alarm and compressor shutdown protection.
Filtration and cooling system
A multistage fuel filter is designed for diverse fuel oil types and quality levels. It is used in dusty working conditions, and are often paired with a large air cooler for high temperature/high altitude working environments.
Easily accessible for maintenance
Nearly all compressor parts that need maintenance are easily accessible. The maintenance on the air filter, oil filter, fuel tank, battery and oil cooler is easy, which, to some extent, reduces compressor shutdown time.
Product Parameters
Main technical data of DM10/10 diesel engine portable screw air compressor

Model	Working pressure	Capacity	Engine model	Engine brand	Color
DM12/10	10bar	12m3/min	6BT5.9-C160	Cummin s	Blue

Detailed Photos
