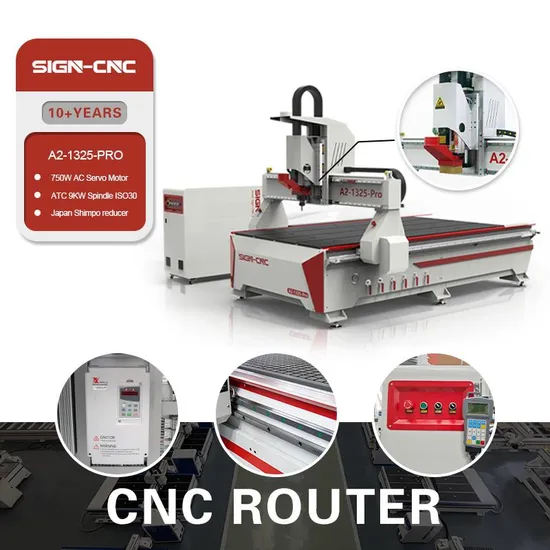

High Speed Woodworking Machinery A2-1325-PRO CNC Router Best Carving for Wood/Acrylic
Basic Info.
Model NO.
A2-1325-Pro
Condition
New
Certification
CE, FDA
CNC or Not
CNC
Voltage
380V
Inverter
Folinn 11kw High Frequency Inverter
Control System
DSP B11
Optional Parts
Vacuum Table and Dust Collector
Drive Motors
750W AC Servo Motor and Driver
Guide Rails
High Precision 25mm Square Guide Rails
Working Table
T-Slot
Spindle
9kw Air Cooling Spindle
Reducer
Japanese Shimpo Planetary Reducer
Guide Rail
25mm Square Guide Rail
Software
Artcam with Post Processor
Transport Package
Wooden Box
Specification
3.15*2.00*1.76m
Trademark
SIGN-CNC
Origin
China
HS Code
84659900
Production Capacity
50set/Month
Packaging & Delivery
Package Size
265.00cm * 176.00cm * 200.00cm
Package Gross Weight
1200.000kg
Product Description
Product DescriptionHigh Speed Woodworking Machinery A2-1325-Pro CNC Router Best Carving for Wood/Acrylic
Application
Advertising industry: advertising signs, logo making, acrylic cutting, plastic molding, a variety of materials advertising the production of decorative products.Woodworking: Furniture production, three-dimensional wave board processing, cabinet doors, solid wood doors, wooden craft, paint doors, screens, craft fan window processing, shoe polisher, game cabinets and panels, mahjong table, computer desk and furniture products, auxiliary processing .Mold Industry: engraving copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wood and other non-metallic mold.Other Industry: a variety of large-scale relief sculpture, shadow carving, widely used in the craft industry.
Technical Parameters
| Model | A2-1325-Pro |
| X, Y Working size | 1300*2500mm |
| Z feed Height | 300mm |
| Table Surface | Aluminum profile T-slot table with PVC protection |
| X, Y Structure | Helical rack and high precision 25mm Square Guide Rail |
| Z Structure | High precision 25mm Square Guide Rail and Ball Screw |
| Max. Power Consumption | (Without spindle) 2.0Kw |
| Max. Rapid Travel Rate | 35000mm/min |
| Max. Working Speed | 20000mm/min |
| Spindle Power | HQD 9KW Air-cooled spindle |
| Spindle Speed | 0-18000RPM |
| Drive Motors | AC servo motor and driver |
| Working Voltage | AC380V/50/60Hz |
| Command Language | G code |
| Control System | DSP B11 |
| X,Y,Z repositioning Accuracy | ±0.01mm |
| X,Y Resolution | <0.01mm |
| Software | Artcam with post processor |
| Running Temperature | 0 degree - 45 degree |
| Relative Humidity | 30% - 75% |
