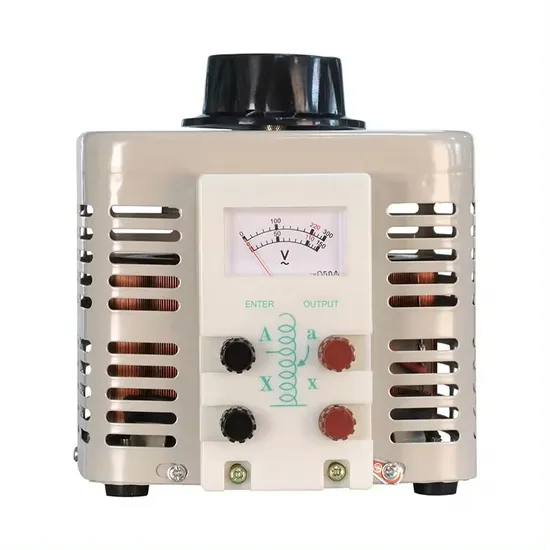

Shenglin Variac Tdgc2-1kVA Single Phase Manual Variable Voltage Regulators Single Phase Contact Adjustable Type Variac Transformer
| US$13.51-460.49 | 1 Piece (MOQ) |
Basic Info.
Model NO.
TDGC2-1KVA
Usage
SVC
Frequency
Low Frequency
Size
Small
Iron Core Shape
Ring
Power Source
Switching Regulated Power Supply
Application Range
Industrial and Mining Enterprises
Brand
Shenglin
Max Output Capacity(kVA)
1kVA
Input Volage
110VAC/220VAC/230VAC/240VAC
Output Voltage
0-250VAC or Customize
Efficiency
>95%
Ambient Temperature
-10°c~+40°c
Display
Analogue/Meter or Digital Customize
Protection
Over/Under Voltage, Short Circuit, Over Temperatur
Custom-Made
Accept
Transport Package
Packed in Standard Export Carton or Wooden Case
Specification
TDGC2-1KVA
Trademark
Shenglin
Origin
China
HS Code
8504330000
Product Description
Overview:The TDGC2 (TDGC2J) contact regulator is an ideal AC voltage regulator for industrial applications (e.g., chemical industry, metallurgy, instrumentation, electromechanical manufacturing, light industry, etc.), scientific experiments, household electrical appliances, speed control, dimming, and power control.
Fundamental Principle:
Voltage regulator is the turns ratio can be continuously adjusted autotransformer, when the regulator brush with the help of the handwheel spindle and brush holder, along the polished surface of the coil sliding, can change the turns ratio, so that the output voltage can be smoothly adjusted from zero to the maximum value.
Model and Meaning:
Main technical parameters:
| Model Specification | Rated capacity | Phase | Rated frequency | Rated Input Voltage | Rated voltage range | Rated output current |
| (KVA) | (Hz) | (V) | (V) | (A) | ||
| TDGC2-0.2 | 0.2 | 1 | 50/60 | 220 | 0~250 | 0.8 |
| TDGC2-0.5 | 0.5 | 1 | 50/60 | 220 | 0~250 | 2 |
| TDGC2-1 | 1 | 1 | 50/60 | 220 | 0~250 | 4 |
| TDGC2-2 | 2 | 1 | 50/60 | 220 | 0~250 | 8 |
| TDGC2-3 | 3 | 1 | 50/60 | 220 | 0~250 | 12 |
| TDGC2-5 | 5 | 1 | 50/60 | 220 | 0~250 | 20 |
| TDGC2-7 | 7 | 1 | 50/60 | 220 | 0~250 | 28 |
| TDGC2-10 | 10 | 1 | 50/60 | 220 | 0~250 | 40 |
| TDGC2-15 | 15 | 1 | 50/60 | 220 | 0~250 | 60 |
| TDGC2-20 | 20 | 1 | 50/60 | 220 | 0~250 | 80 |
| TDGC2-30 | 30 | 1 | 50/60 | 220 | 0~250 | 120 |
| TSGC2-3 | 3 | 3 | 50/60 | 380 | 0~430 | 4 |
| TSGC2-6 | 6 | 3 | 50/60 | 380 | 0~430 | 8 |
| TSGC2-9 | 9 | 3 | 50/60 | 380 | 0~430 | 12 |
| TSGC2-15 | 15 | 3 | 50/60 | 380 | 0~430 | 20 |
| TSGC2-20 | 20 | 3 | 50/60 | 380 | 0~430 | 27 |
| TSGC2-30 | 30 | 3 | 50/60 | 380 | 0~430 | 40 |
Appearance and installation dimensions:
