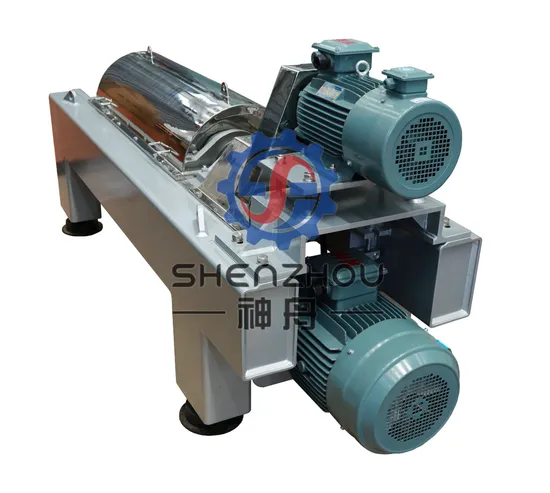

Industrial Horizontal Sedimentation Decanter Separation Centrifuge for Wastewater Dewatering Processing

Product Description

Industrial horizontal sedimentation decanter Separation centrifuge for wastewater dewatering processing Industrial horizontal sedimentation decanter Separation centrifuge: Industrial horizontal sedimentation decanter centrifuge is a horizontal centrifuge with continuous feeding and continuous discharging. The settling speed is determined by particle size, particle shape, difference in density between solids and liquids as well as their viscosity. Decanter centrifuge is suitable for solid-phase dewatering, liquid-phase clarification and separation, liquid-liquid-solid three phase separation and size-grading of various suspensions with solid-phase particle sizes of 0.005-15mm, consistency of 1-40% and temperature of ≤100°C It is used for oil-water-solid separation , Have good performance in olive oil , coconut oil ,palm oil avocado oil production line, etc.
LW series Decanter Centrifuge for Processing Tapioca cassava Starch production line Shenzhou Separation is a supplier specializing in the manufacture and research, and development of centrifuge equipment. For the cassava starch production process, SZ has specially developed a food-grade three-phase centrifuge, which can be used in the automatic separation and extraction process of cassava starch. It can effectively separate the juice in the cassava pieces and can dehydrate and concentrate the obtained juice. This helps tapioca starch production plants to reduce water consumption and energy consumption. Types Of Decanters There are several types of decanter centrifuges currently utilized in the industry, the most widely recognized are vertical, horizontal and conveyor centrifuges. The principle behind a decanter centrifuge is based on the theory of gravitational separation. For example, if you fill a vessel with a mixture of mud and water, over time the weight of the mud will cause it to settle down at the base of the vessel. With the mud congealed at the bottom, the water will be forced upwards, creating a clear separation between the two.
Decanter Principles
A decanter centrifuge employs the same principles of gravitational force. However, unlike the glass mixture, the process is expedited through the use of continuous rotation. In fact, rotation provides anywhere from 1000 to 4000 times the normal gravitational force, reducing the time required for separation from hours to seconds.
Rotational Separation
The concept of rotational separation is similar to rides found at amusement parks and county fairgrounds. In these rides, placing yourself at an angle allows you to overcome the gravitational forces induced by rotation. Similarly, a decanter centrifuge is essentially a bowl tube that rotates at an extremely high speed. The bowl tube is equipped with an internal conveyor which moves in the same direction but at a different velocity. Main Characteristics 1. Continuous working, spiral discharging, high capacity. 2. Compact structure and easy maintenance. 3. Wide applicability for chemical, oil, foodstuff, pharmacy industries and green industry in which solid-liquid separation is required. 4. Suitable for various products, capable for separating wide-ranging solid phase grains( 0.005 - 2mm ), especially when separating solid phase has different size grains. Details
Reference standard
Technical parameter

Name	Unit	Parameter
Model	LWM760	LWM760*3040-N
Capacity	M3/h	10-160M3/H
Solid content	%	0.5~20
Design Rotation speed	r/min	2260Variable frequency speed regulation
Working rotation speed	r/min	2000Variable frequency speed regulation
Max Separation factor	G	2060/Variable frequency speed regulation
Drum diameter	Mm	760
Drum length	mm	3040
Slag outlet		Wear-resistant ceramic or hard alloy
Mud scraping position of spiral blade		Surface spray welding tungsten carbide protective coating
Drum		AISI304/316 stainless steel/2205/2507Duplex steel
Screw		AISI304/316 stainless steel/2205/2507Duplex steel
Hood		AISI304stainless steel
Feed pipe, Drainage and slag discharge pipe		AISI304stainless steel
Machine base		High Quality Carbon Steel
Screw Torque	Nm	25000
Differential speed	Rpm	45-80/Stepless adjustable
Differential adjustment accuracy value	Rpm	≤1
Noise	dB(A)	90
vibration	mm/S	7.1
Motor power	KW	185(380/3/50HZ)
explosion protection level		EEx e II T3
Rated voltage	V	600
Protection class	IP	56
Insulation class		F
Frequency conversion electric control cabinet	760	ZK1

Model	Diameter(mm)	Lenght(mm)	Max speed	L/D ratio	G-force	Capacity(m3/h)	Main motor power(Kw)	Weight(kg)	Dimension(mm)
LW250*1000	250	1000	5000	4	2722	0.5-5	7.5	950	2120*1250*680
LW300*900	300	900	4200	3	2964	1-6	11	1160	2150*1300*900
LW300*1200	300	1200	4000	4	2784	2-6	11	1350	2450*1300*900
LW355*1160	355	1160	3600	3.3	2576	2-8	15	1400	2470*1350*830
LW355*1460	355	1460	3600	4	2576	2-10	15	1800	2750*1350*830
LW400*1200	400	1200	3200	3	2294	3-12	18.5	1800	2730*1600*1080
LW400*1600	400	1600	3000	4	2016	3-15	22	2000	3130*1600*1080
LW450*1800	450	1800	2800	4	1976	4-25	37	2500	3320*1700*1130
LW500*2000	500	2000	2800	4	1750	5-35	45	4000	3520*1800*1170
LW530*1855	530	1855	2600	3.5	2006	5-38	55	4680	3885*1350*1600
LW530*2120	530	2120	2400	4	1709	5-40	55	4800	4150*1350*1600
LW550*2000	550	2200	2800	4	2414	6-40	55	5700	4570*1380*1600
LW650*1950	650	1950	2200	3	1761	6-45	75	5000	4840*1510*1720
LW650*2600	650	2600	2000	4	1456	6-65	90	6000	5490-1510*1720
LW720*2160	720	2160	2000	3	1612	7-80	120	6000	5200*1600*1800
LW720*2880	720	2880	2000	4	1306	7-90	120	8000	3100*1600*1800
LW800*2400	800	2400	1800	3	1451	20-100	150	12000	5820*2000*1300
LW800*3200	800	3200	1800	4	1451	20-120	150	13000	7100*2000*1300

If you want to know more please contact me
What is a Decanter Centrifuge? Horizontal Bowl centrifuges are also known as decanter centrifuges, centrifugal decanters or simply decanter machines and are primarily used for separation of liquids from appreciable amounts of solids. Decanters can separate over
50% (v/v) solids from liquids on a continuous basis. Typical industrial decanter applications include Crude Oil Tank Bottoms; Waste Oil; Industrial Wastewater; Sludge Dewatering; Fish Meal; WVO/UVO De-Sludging; Paint Sludge; Rendering etc. etc.
How does it work? A decanter centrifuge separates solids from one or two liquid phases in one single continuous process. This is
done using centrifugal forces that can be well beyond 3000 times greater than gravity. When subject to such forces, the denser solid particles are pressed outwards against the rotating bowl wall, while the less dense liquid phase forms a concentric inner layer. Different dam plates are used to vary the depth of the liquid - the so-called pond - as required.
The sediment formed by the solid particles is continuously removed by the screw conveyor, which rotates at a different speed than the bowl. As a result, the solids are gradually "ploughed" out of the pond and up the conical "beach". The centrifugal force compacts the solids and expels the surplus liquid. The dried solids then discharge from the bowl. The clarified liquid phase or phases overflow the dam plates situated at the opposite end of the bowl.
Horizontal Decanter Centrifuges Centrifuge World offers a wide variety of horizontal continuous cleaning decanter centrifuges which provide effective, low-maintenance solutions to continuous liquid clarifying and / or solids dewatering with advanced process and mechanical performance features.
Decanter centrifuges are extremely versatile and capable of adapting to varying throughput and process and material types. The machines are easy to adjust, require little operator attention, are relatively quiet and feature a small footprint.
Biodiesel Centrifuges: Centrifuge World offers a wide range of manual clean and self-cleaning biodiesel centrifuges process capacities ranging from 1 to 30-gpm.
Decanter Centrifuges Limitations:
* The decanter centrifuges cannot separate biological solids with very small density differences, such as cells and viruses. A competitive process that is capable of separating these difficult-to-separate solids is the tubular-bowl centrifuge.
* The machine can be very noisy and can cause vibration.
* The device has a high-energy consumption due to high G-forces.
* The decanter centrifuge has high equipment capital costs. Hard surfacing and abrasion protection materials are required for the scroll to reduce wear and therefore reduce the maintenance of the scroll wear.
Application
1. Industrial and municipal wastewater treatment
2. Oil&gas drilling mud/fluid control
3. Washing, separation and dewater of starch
4. Mycelium and zymtotic fluid separation for antibiotic
5. Dewatering of soybean and wheat protein
6. Dewatering of fish power and fish meat
7. Dewatering of vinasse
8. Clarification and extraction of fruit juice
9. Separation and purification for animal and vegetable oil
10. Production and purification of olive oil, palm oil, avcado oil
11. Separation and purification for coal tar
12. Grading of kaolin and grapgite
13. Grading and dewatering of dyestuff and pigment
14. Froth flotation for cleaned coal and dewatering of coal mud
15. Grading and dewatering of minerals working principle Company Profile
Liaoyang Shenzhou Machinery Equipment Co., Ltd. belongs to SHENZHOU Group. We are the professional manufacturer of Centrifuge & Separator, Liquid Filling Machine and packing machine. With many years producing experience, our factory have become leading manufacturer with professional technical team and Independent after-sale department.
Our international trade department can supply the whole project service. With many years development, we have known which factories have strong product with competitive price and we have built long-term and stable cooperation relationship with them. Our main area are the food and pharmacy project. Our successful project are coconut oil production line, liquid filling production line, packing production line and the tablet press production line, soft gelatin production line and so on. Our aim is providing you efficiently solution and superior after-service. We sincerely hope YOU are our next customers! Exported country: At present, our products have been exported to South Korea, India, Denmark, Russia, Georgia, Jordan, Bangladeshi, Tailand, Ethiopia, Finland, the United States, Canada, Australia, Spain, Japan, Colombia, Romania and so on more than 30 countries
Packing & Delivery
1.Parking:standard wooden box
2.Spare parts :we supply some parts and accessories for free.
3.Electronic module:it is made up of electronic control cabinet.
4.Special tools:we supply a set special tools for free.
FAQ
1. 12 months guarantee period from machine arriving date.
2. Abundant spare parts in stock are available to provide.
3. Our technicians could be dispatched for overseas service.
4. 7*24 hours technical consultation.
5. Your workers could get trained both in our factory and yours.
6. Routine tracing till the machine work properly will be done timely.
7. We will remind you to do the normal maintenance.
8. Your suggestions or any comments & reflection would be treated in priority.
9. Marketing team will visit you during our visit in your country if you require.
