China Black Pepper Dryer Machine Dehydrator

Product Description

Summary:
The most important characteristics of HGX series box dryer are easy operation,good flexibility and wide application.It can process in large quantity,also can be used for small capacity,and can process many varieties simultaneously.It is very suitable for drying products with high sugar content,such as glucose-add carrot cube and crushed cabbage;also suitable for viscous products such as kelp.This series dryer is very easy to clean and maintenance,and fully complies with the hygienic requirement for export.

Main technical parameters of HGX-Z Steam-used box dryer

Model	Dimension (mm)	Blastvolume (m3/h)	Blast pressure (pa)	Power (kw)	Drying area (m2)	Steam consumption (kg/h,peak value)
HGX-Z	3600x2000x1590	11000	548	5.5	4	<300

Main technical parameters of HGX-Q Gas-fired box dryer

Model	Dimension (mm)	Blast volume (m3/h)	Blast pressure (pa)	Power (kw)	Drying area (m2)	Gas consumption (m3/h,peak value)
HGX-Q	5200x2000x1300	11000	548	5.5	4	<10

Detailed Images
Name:Heat Exchanger
Radiator shell is made of stainless steel 304,inner is seamless steel tube with aluminum fins.Ensure 100% close contact,achieving high effective of heat exchanging.

Name: Steam Control System
Two controlling ways.It can be controlled both automatically and manually.While the automatical valves are off working,the manual valve will play an indispensable role.

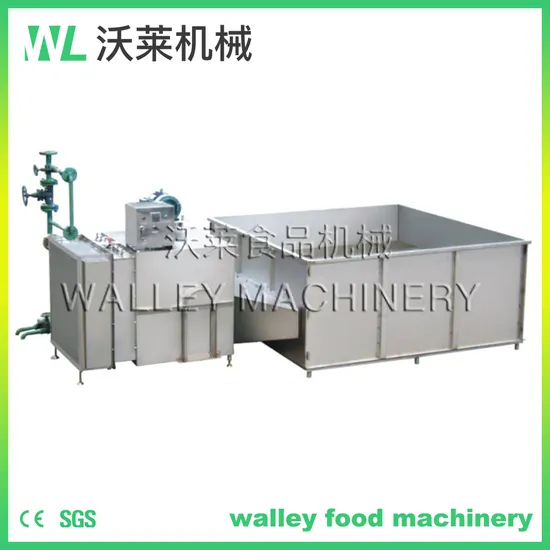

Name: Box Dryer Body
Main body is made of stainless steel 304.There is air room under the plate,making sure hot air blowing from bottom uniformly.Side latch design can open the box side plate more easier,convenient for clean.
