Triode Yd1212 for High Frequency Generator

Product Description

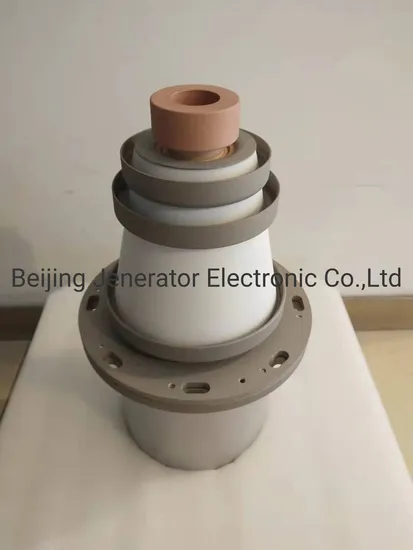

Triode YD1212 is a high power ceramic-metal triode; It has thoriated tungsten cathode and hyper-vapotron cooling of plate.
The tube maximum plate dissipation is 120kW and maximum frequency operation is 30MHz.
The tube designed for oscillator in the industry high frequency heating applications.
The tube can replace BW1185J2 and ITK90-1.
GENERAL CHARACTERISTICS
Electrical

Cathode	Thoriated Tungsten
Filament Voltage	12.6V
Filament Current	380A
Transconductance	160mA/V
Amplification Factor	41
Interelectrode Capacitances:
Filament to Grid	180pF
Filament to Plate	3.4pF
Grid to Plate	60pF

Mechanical

Overall Length	425mm
Overall Diameter	φ190mm
Net Weight	15.6kg
Mounting Position	Vertical, Plate Up or Down

4CX150F 4CX250B/FG 4CX300A 4CX350A/F
4CX1000A 4CX1500A/B 4CX3000A 4CX5000A
4CX10000D 4CX15000A 4CPX150K 6T51 7T62R
E3062 7T69RB 7T84RB 7T85RB 8T25RA 8T85RB
8T87RB 3CX800A7 3CX1500A7 3CX2500A3/F3/H3
3CX3000A1/A7/F1/F7 3CX4500F3(YU-108)
3CX6000A7(YU-148) 3CX10000A3/A7/H3
3CX15000A3/A7/H3 3CX20000H3 3CW30000H3
3CW40000H3 3CW45000H3
6T51 7T62R(E3062C) 8T25RA8T85RB 8T87RB
7T69RB 7T84RB 7T85RB 3CX800A7 3CX1500A7
3CX2500A3/F3/H33CX3000A3/F7/A7 3CX4500/F3
YU-108 3CX6000A7(YU-148) 3CX10000A3/F3/H3
3CX15000A3/F3/H3 3CX20000H3 3CW30000H3
33CW40000H3 3CX45000H3 BW1184J2 BW1185J2
BW1608F RS3060CJ RS3500C TH382 TH347 TH5-6
ITL5-1 TH6-3A
Microwave CW Magnetrons:
2450MHz 850W 950W 1000W 5KW 10KW,
915MHZ 5KW 30Kw,
At the same time, please be kindly to provide us your type needed, and then we can give you our similar products to replace it!
