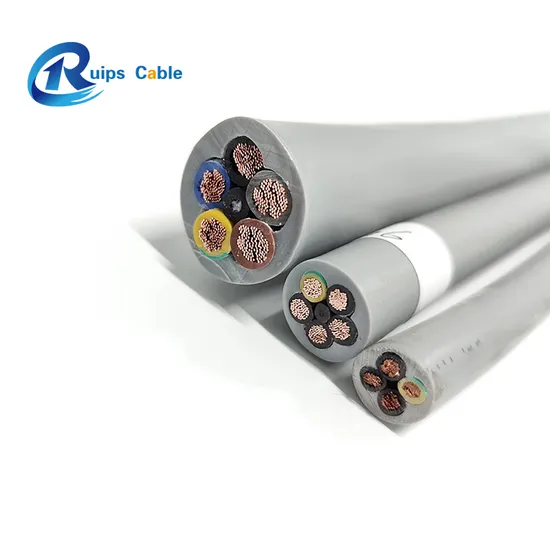

Industrial Wire Yy LSZH/Cy/Sy 0.75mm/1.5mm/2.5mm Tinned Copper Braid Shielded Halogen-Free Flexible Control Cable

Industrial Wire Yy LSZH/Cy/Sy 0.75mm/1.5mm/2.5mm Tinned Copper Braid Shielded Halogen-Free Flexible Control Cable

US$0.68-10.80 100 Meters (MOQ)

Basic Info.

Model NO.
YY LSZH/CY/SY
Application
Indoor
Conductor Material
Copper
Sheath Material
PVC
Insulation Material
PVC
Material Shape
Round Wire
Range of Application
Flame Retardant
Certification
ISO9001, CE
Brand
Reps
Color
Black Red Yellow Green Blue
OEM/ODM
Accepted
Whether It Is Environmentally Friendly
Yes
Delivery Time
15 Days
Transport Package
Optional
Specification
Single Core and Multicore
Trademark
REPS
Origin
Anhui
HS Code
8544492100
Production Capacity
Us$5 Million - Us$10 Million

Product Description

YY LSZH Power Control Flame Retardant 300/500V Halogen-free Flexible Cable
Conductor: Copper
Insulation: PVC
Outer Sheath: PVC
Nominal Voltage U0/U : 300/500 V
Test Voltage: 2500 V
Minimal Bending Radius: 10D
Temperature range: Flexible -5°C to +70°CFixed -35°C to +70°C
Application: Suitable for outdoor electrical installations in dry and humid indoor environments or within the allowable operating temperature range with UV protection. Used as measurement, sensing, and control cables in machine tool manufacturing, engineering, power plants, heating and air conditioning devices, refrigeration, and data processing devices. Can be used outdoors under protected conditions, or indoors in dry or humid environments
Cable
Description
No. Of
Cores
Nom. Conductor
Size
Nom. Cable
Diameter
Nom. Cable Weight
mm² mm kg/km
2 X0.5 2 0.5 4.6 28
3 X0.5 3 0.5 4.9 35
3 G0.5 3 0.5 4.9 35
4 X0.5 4 0.5 5.3 44
4 G0.5 4 0.5 5.3 44
5 X0.5 5 0.5 5.9 53
5 G0.5 5 0.5 5.9 53
7 X0.5 7 0.5 6.4 68
7 G0.5 7 0.5 6.4 68
9 X0.5 9 0.5 7.9 90
9 G0.5 9 0.5 7.9 90
10 X0.5 10 0.5 8.3 100
10 G0.5 10 0.5 8.3 100
12 X0.5 12 0.5 8.6 114
12 G0.5 12 0.5 8.6 114
14 X0.5 14 0.5 9.1 131
14 G0.5 14 0.5 9.1 131
16 X0.5 16 0.5 9.6 148
16 G0.5 16 0.5 9.6 148
18 X0.5 18 0.5 10.2 167
18 G0.5 18 0.5 10.2 167
20 X0.5 20 0.5 10.8 186
20 G0.5 20 0.5 10.8 186
2 X0.75 2 0.75 5.0 36
3 X0.75 3 0.75 5.4 46
3 G0.75 3 0.75 5.4 46
4 X0.75 4 0.75 5.9 58
4 G0.75 4 0.75 5.9 58
5 X0.75 5 0.75 6.5 70
5 G0.75 5 0.75 6.5 70
7 X0.75 7 0.75 7.2 91
7 G0.75 7 0.75 7.2 91
9 X0.75 9 0.75 8.9 120
9 G0.75 9 0.75 8.9 120
10 X0.75 10 0.75 9.3 134
10 G0.75 10 0.75 9.3 134
12 X0.75 12 0.75 9.6 154
12 G0.75 12 0.75 9.6 154
14 X0.75 14 0.75 10.2 176
14 G0.75 14 0.75 10.2 176
16 X0.75 16 0.75 10.8 199
16 G0.75 16 0.75 10.8 199
18 X0.75 18 0.75 11.4 225
18 G0.75 18 0.75 11.4 225
20 X0.75 20 0.75 12. 1 251

Wuxi Reps Power Technology Co., Ltd. is located in C Area, Guanlin Town, Yixing City, Jiangsu Province. Enterprise development environment is superior, convenient transportation conditions, is a focus on special cable research and development, design, manufacturing and sales of a full range of science and technology service enterprises.
Our company has all kinds of professional production and technical personnel to provide technical support, at the same time has advanced professional production line and a complete set of testing equipment, perfect testing system and strict process testing to ensure the stability of product quality.
The company's main flexible cable, drag chain cable, tensile wear-resistant coil cable, grab cable. Garbage cable, scraper cable, gantry cable, coil cable, high flexibility cable, encoder cable, robot cable, robot arm cable, palletizer cable, tower cable, crane cable, driving cable, crane cable, Spreader cable, container crane cable, cold resistant cable and all kinds of flat cable, polyurethane cable, etc. Cover fixed installation, mobile installation of data communication, power transmission, all kinds of wire and cable products used in extreme environment.
It involves railways, highways, data transmission, oil and gas plants and petrochemical industries, environmental power, mining and tunnels, ports and ships, drum winding and communication applications.
"Cable Customization" is a special service close to the user of the Reps brand. With our years of experience, we can analyze the challenges faced by customers and bring together our expertise and cutting-edge technology, research and design solutions for supporting cable, and carry out technical services.
Q1: How can Iplace order?
A: You can contact us by email about your order details, or place order online
Q2: Does your company provide OEM&ODM services?
A: Of course, we can produce cables by your samples or technical drawings
Q3: Doed your company test all your goods before delivery?
A. Yes. we have 100% test before delivery
Q4: Are you a cable and wire manufacturer?
A: Yes, our company is an integrated set of industry and trade company.
Q5: Can you offer free samples?
A: Sure, the price is negotiable. We will definitely give a discount based on your annual order.
Q6: How long is your delivery time?
A: Of course, according to your order quantity, we'd like to provide free sample.
Q7: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. Trade terms of EXW, FOB, CFR, CIF,are available.
