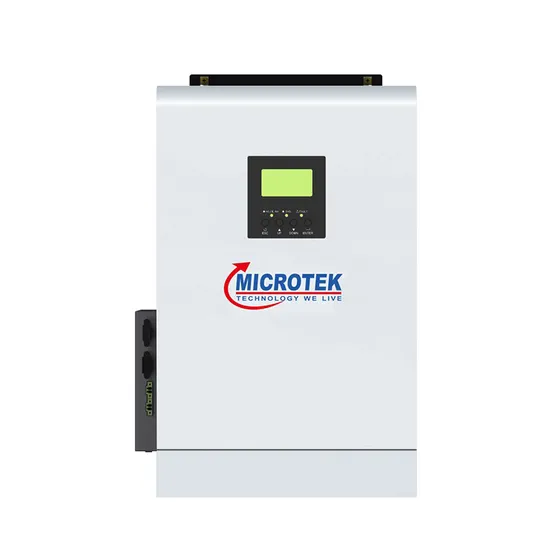

5kVA 50Hz off Grid Solar Hybrid System 5kw Solar Inverter

Product Description

5kVA 50Hz off Grid Solar Hybrid System 5kw Solar Inverter
Product Feature > Pure sine wave output
> Output power factor 1.0
>Wide DC input 120 ~ 450 VDC
> Battery independent design
> Built-in dust filter
> Unique ventilation design for harsh environment
> Built-in 80A MPPT solar charger
> Configurable output source priority via LCD setting
> Battery balancing to optimize battery performance and extend life
Detailed Photos
Working Structure
Product Parameters

MODEL		Mustang Pro 5KVA
Rated power		5000VA/5000W
INPUT
Nominal input voltage		230Vac
Selectable voltage range		170 ~ 280Vac(for personal computers)
		120 ~ 280VAC (for home appliances)
Frequency range		50 Hz/60 Hz (Auto sensing)
OUTPUT
AC voltage regulation (Batt. mode)		230Vac ±5%
Overload capacity		5s ≥150% load; 10s ≥105% ~ 150% load
Efficiency (Peak)		93%
Transfer time		10ms (for personal computers); 20ms (for home appliances)
Waveform		Pure sine wave
BATTERY
Battery voltage		48 VDC
Floating charge voltage		54 VDC
Overcharge protection		63 VDC
SOLAR CHARGER & AC CHARGER
Solar charger type		MPPT
Maximum PV array power		5000W
MPPT range operating voltage		120 ~ 450 VDC
Maximum PV array open circuit voltage		500 VDC
Maxmum solar charge current		80A
Maximum AC charge current		80A
Maximum charge current		80A
PHYSICAL
Dimension(L x W x H) mm		125*378*516
Net weight (kg)		16
Communication Interface		USB / RS232(Standard); GPRS / WIFI(Optional)
ENVIRONMENT
Humidity		5% to 95% Relative humidity (Non-condensing)
Operating temperature		-10ºC~50ºC
Operating temperature		-15ºC~60ºC

Company Profile
Certification FAQ Q: What can be included for this system?A:This system includes: solar panels, PV array combiner, Solar inverter with MPPT solar controller build in, Gel free maintenance battery, solar panel rack, cables.,etc.Q: Is the solution for complete set? If not, what else are needed?A: Yes, we can provide solution of complete set. If you don't need complete set, basic parts are also available.Q: Is the system solution always the same? Can I customize one?A: No. We have professional teams making solutions for our clients. Solutions are mainly customized based on different sunshine time and power consumption. So the 1kw system may be with different configuration.Q: Can the inverter switch automatically to national grid to protect batteries.A: Yes. It can also connect to third generator, as like diesel generator. Please tell our sales before production.Q: What is the lifetime of the solar power system?A: Solar panel's lifetime are 25 years, charger controllers 5~ 7 years, inverters 5~7 years, batteries 6~8 years.
