M7163 M7150A Wheel Head surface grinder machine
| US$12,000.00-16,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
M7163 M7150A
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Surface Grinder
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Table Size
500X1000mm
T-Slot Number X W
3X22
Power
7.5kw
Chuck Size(Wxl)
500X1000X1mm
Wheel Size
400X40 X203mm
Transport Package
Plywood Case
Specification
9000kgs
Trademark
HOTON
Origin
Shandong, China
HS Code
8460190000
Production Capacity
10 PCS/Month
Product Description
SURFACE GRINDERS MACHINE MANUFACTURER FEATURES:

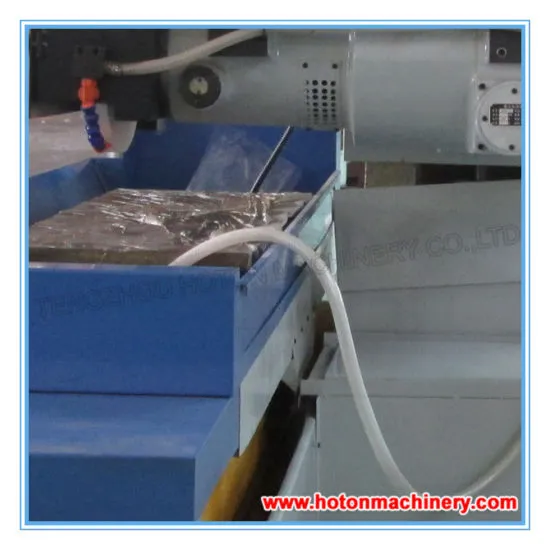

1.Wheel Head
The wheel head adopts the bearing bush structure, so that to handle the heavy duty machining job. The wheel head vertical movement is controlled manually, it also equips with the rapid elevating unit to reduce the labor intensity and improve the working efficiency.
2.Workable
The worktable longitudinal movement is driven by the vane pump, so that to make the movement stable and fluently with low noise.
3.Accuracy
The accuracy of this machine is 0.005mm and it can meet the routine machining job requirement.
4.Operation
The machine gets the hydraulic auto feed and manual feed in cross feed unit, which is very convenient for operation.
The machine not only works stable and performance reliable, but also gets the advantages of low noise, accuracy stable and easy operation.
SPECIFICATIONS:
| MODEL | UNIT | M7150A | M7150A | M7150A | M7163 | M7163 | M7163 | |||||
| Worktable size(WxL) | Mm | 500x1000 | 500x1600 | 500x2200 | 630x1250 | 630x1600 | 630x2200 | |||||
| Max matching dimension(W x L) | Mm | 500x1000 | 500x1600 | 500x2200 | 630x1250 | 630x1600 | 630x2200 | |||||
| Max distance between spindle center line and worktable surface | Mm | 700 | ||||||||||
| Longitudinal moving speed of worktable | m/min | 3-27 | ||||||||||
| T-slot number x W | Mm | 3x22 | ||||||||||
| Wheel head | Continuous feed speed | m/min | 0.5-4.5 | |||||||||
| Cross moving | Intermittent feed speed | Mm/t | 3-30 | |||||||||
| Hand wheel feed | Mm/gra | 0.01 | ||||||||||
| Vertical Moving | Rapid speed | Mm/min | 400 | |||||||||
| of wheel head | Hand wheel feed | Mm/.gra | 0.005 | |||||||||
| Wheel Head | Power | Kw | 7.5 | |||||||||
| motor | Rotation speed | Rpm | 1440 | |||||||||
| Total power | Kw | 12.25 | 13.75 | 15.75 | 13.75 | 15.75 | ||||||
| Max loading capacity of worktable (with chuck) | Kg | 700 | 1240 | 1410 | 1010 | 1290 | 1780 | |||||
| Chuck size(WxL) | Mm | 500x1000 x1 | 500x800 x2 | 500x1000 x2 | 630x1250 x1 | 630x800 x2 | 630x1000 x2 | |||||
| Wheel size (ODxWxID) | Mm | 400x40x203 | ||||||||||
| Machine dimension(LxWxH) | Cm | 311x190 x242 | 514x190 x242 | 674x190 x242 | 399x220 x242 | 514x220 x242 | 674x220 x242 | |||||
| Machine Weight | t | 5.78 | 7.32 | 8.78 | 6.86 | 7.85 | 9.65 | |||||
| Contact Us: |
| Andy Wang TENGZHOU HOTON MACHINERY CO.,LTD Tel:0086 632 5633796 MP:0086 13506328892 hotonmachinery.en.made-in-china.com |
| Company Profile: |
| Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008. |
| The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale. |
| Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills. |
