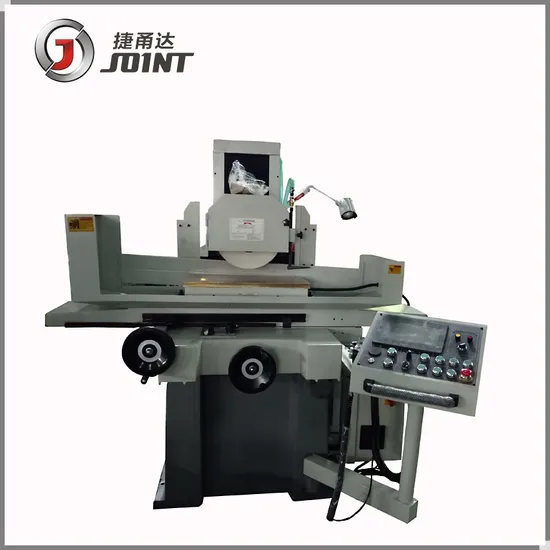

300*600mm Table Size High Precision Hydraulic Automatic PLC Control Surface Grinding Grinder

Product Description

Product Characteristics:
1. Imported high accuracy grinding head.
2. High quality resin, ageing treatment.
3.Taiwan high quality hydraulic system and high precision grinding head.
Specification sheet:
MSI: three-axis fully automatic, the left and right movements of the workbench are hydraulic automatic, the front and rear feeds are electric automatic, the spindle is driven by a servo motor for up and down movement, PLC program control. The front and rear, up and down feed was operated by electronic handwheel.

Model			306MSI
Table size		mm	600*300
X axis travel		mm	640
Y axis travel		mm	320
Table side way			Slide way
Max distance from spindle center to working table		mm	580
Auto crossward feed		mm	0.1-8
Crossward feed of hand wheel		1 Rev	0.1/1
		1 Div	0.001/0.01
Auto vertical feed		mm	0.001-0.999
Vertical rapid moving feed		mm	150
Vertical feed of hand wheel		1 Rev	0.01/1
		1 Div	0.001/0.1
Rotation speed	50HZ	rpm	1450
	60HZ	rpm	1750
Grinding wheel size			Φ355×(20-40)×127
Spindle motor			5*4
Hydraulic motor			2*4
Crossward driven motor			9NM
Vertical driven motor			1*4
Coolant pump motor			0.12*2
Dust-clean motor			-
Dimension (L*W*H)		mm	2280*2280*2040
Weight		kg	1950

Standard accessories: 1. Electonic magnet chuck+ demagnizer 2.Cooling system 3. Grinding wheel and extractor 4. Leveling pad and bolt 5. Working light 6. Wheel balance arbor 7. Wheel flange 8. Wheel diamond dresser 9. Tool and toolbox 10. Operation manual

Optional accessories: 1. Two axis DRO 2. Coolant system + Dust suction 3. Balancing stand 4. Magnetic seperator

Accessories:

Electric magnet chuck Permanent magnet chuck Demagnizer
Dust-suction Coolant system Balancing bracket
Overview:
Company Information: Shenzhen Joint Technology CO.,LTD., was established in 1995. One of our headquarters is located in PingHu town, Shenzhen City ,Guangdong province ,China, we are dedicating to research and development, production, sale, and service of mold processing machine tools and specialized machine tool equipments for machine work of excellent quality for more than two decades.
There are eight series of products-high speed turret milling machine, precision surface grinding machine, EDM machine tool, CNC milling machine, NC milling machine, Gantry type machine center, CNC engraving machine, and CNC lathe machine
Our own brand "JOINT " Has been the top quality machine's signal in domestic sales, JOINT also has been recognized as " GUANGDONG Famous Brand ", and milling machine was recognized as " TOP 10 Famous Brand of Milling machine " in China. Our product had been exporting to Europe, South America, Southeast Asia, the middle east etc, and enjoyed a good reputation there, Welcome your visit !
