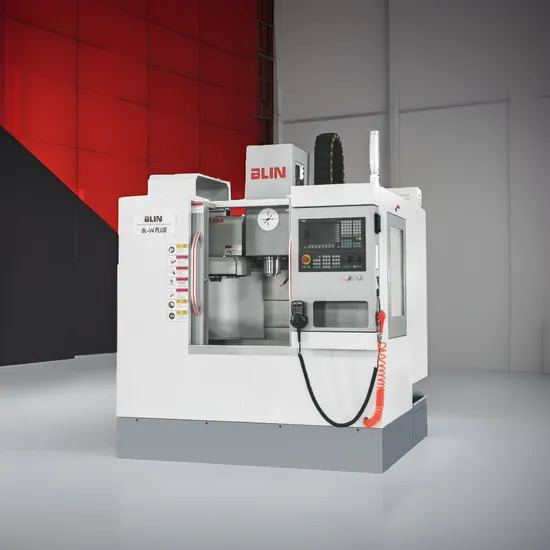

Desktop Mini CNC Milling Machine for Sale (BL-V4 PLUS)
| US$22,000.00-24,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BL-V4 PLUS
Type
Worktable Milling Machine
Object
Metal
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Table Size
800×320mm
X/Y/Z Axes
450/300/480mm
Spindle Type
Bt40
Spindle Motor
3.7kw
Spindle Speed Range
8000/10000/12000rpm
Rapid Moving Speed
36m/Min
Tool Magazine
Umbrella Type 12t/Arm Type 16t
Positioning Precision
±0.005mm
Repeatable Positioning Precision
±0.003mm
Overall Dimension
1830×1870×2120mm
Weight
2400kg
Transport Package
Wooden Case
Specification
Table size: 800*320mm
Trademark
BLIN
Origin
China
HS Code
8457101000
Production Capacity
480 Units/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg
Product Description
Desktop mini CNC Milling Machine for sale(BL-V4 PLUS)-3 axes adopt high precision linear guideway
-Designed by GERMAN engineer
-Whole production process accord to TAIWANESE standard
-Chips outlet set at the back of machine
-Most parts adopt GERMAN/JAPANESE/TAIWANESE brand
-High speed, high precision, long using lifespan
-Adopt HT300 high class cast iron,after aging treatment and FEA analysis
-Bridge shape column, high rigidity, high stability
-3 axes use C3 class precision ball screw, match up nut preloading and ball screw pre-stretching,pre-eliminate backlash and temperature rising, ensure stable positioning and repeatable positioning precision
Details:
| Item | Specification | Unit | BL-V4 PLUS |
| Worktable | Table size | mm | 800×320 |
| Table max. loading | kg | 200 | |
| T slot(NO./width/gap) | mm | 3/14/100 | |
| Travel | X/Y/Z axes | mm | 450/300/480 |
| Spindle | Distance from spindle nose to table surface | mm | 105~585 |
| Distance from spindle center to column surface | mm | 375 | |
| Spindle type | mm | BT40/Φ120 7:24 | |
| Spindle motor | kw | 3.7(option:5.5kw) | |
| Spindle speed | rpm | Belt-drive: 8000/10000 Direct-drive: 12000 | |
| Feeding axes | X,Y,Z axes ball screw O.D./pitch | mm | 32/12 |
| X,Y,Z axes linear guideway width | mm | 30 | |
| X/Y/Z axes motor | Nm | 6/6/11(SIEMENS 808D) | |
| Cutting feed speed | m/min | 12 | |
| X/Y/Z axes rapid moving speed | m/min | 36/36/24 | |
| Positioning precision | mm | ±0.005 | |
| Repeatable positioning precision | mm | ±0.003 | |
| Tool magazine | Tool magazine | / | Umbrella type 12T/Arm type 16T |
| Max. tool weight | kg | 8(Arm type 16T) | |
| Max. tool length | mm | 220(Arm type 16T) | |
| Max. tool dia.(fully loaded) | mm | 78(Arm type 16T) | |
| Max. tool dia.(no adjacent) | mm | 120(Arm type 16T) | |
| Others | Overall dimension(L×W×H) | mm | 1830×1870×2120 |
| Weight | kg | 2400 |
Main parts list:
| Item | Brand |
| Spindle bearing | JAPAN-NSK |
| Ball screw bearing | TAIWAN-TPI |
| Ball screw | JAPAN-THK/TAIWAN-HIWIN |
| Linear guideway | JAPAN-THK/TAIWAN-HIWIN |
| Spindle unit | TAIWAN-VYU CHEN |
| Tool magazine | TAIWAN-OKADA |
| Booster cylinder | TAIWAN-HAO CHENG |
| Lubrication pump | TAIWAN-BEISUN |
| Power switch | TAIWAN-MEANWELL |
| Pneumatic parts | TAIWAN-AIRTAC |
| Electric parts | FRANCE-SCHNEIDER |
Standard configuration: - SIEMENS 808D ADVANCED CNC Controller
-12T Umbrella type tool magazine
Optional configuration: -SIEMENS 828D/FANUC 0I MF CNC Controller
-16T Arm type tool magazine
-4th axes rotary table
