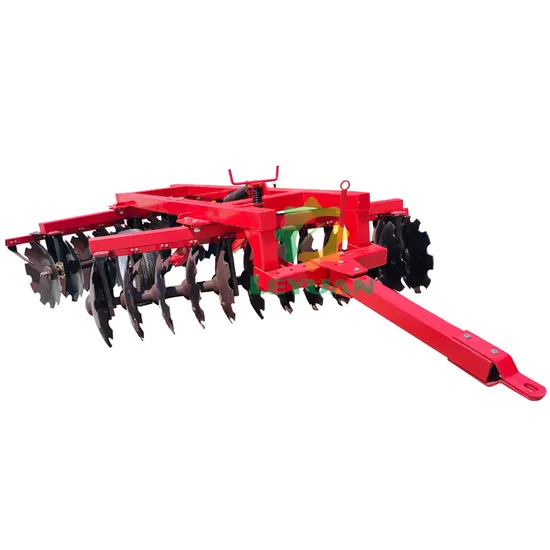

Hydraulic Heavy Disc Harrow 24 Discs Disk Harrow Tractor Trailed
| US$2,500.00-3,000.00 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
1BZ-2.5
Application Field
Agriculture
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Traction
Drive Type
Tractor
Arbor Configuration
Vertical Shaft
Color
Blue
Warranty
1 Year
Disc Qty
Cutom Made
Clour
Custom Made
Disc Diameter
Customade
Logo
Custom Made
Disc Material
65mn or Boron
Bearing
Optional Two Choices
Tractor
4 Wheel Tractors
Transport Package
Iron Box
Specification
1BZ-2.5
Trademark
LEYUAN
Origin
Shandong China
HS Code
84322100
Production Capacity
5000set /Year
Product Description
Product Description1BZ series of Hydraulic offset heavy disc harrow is well suitable for heavy clay soil, waste land and weedy field as well, mainly suitable for stubble cleaning before farming , it can break the hardened soil and return the chopped straw to the soil, and also can crash the soil after tillage and level the land. The heavy-duty disc harrow can cultivate the soil instead of plow.
Product Parameters
| Model | 1BZ-1.8 | 1BZ-2.2 | 1BZ-2.5 | 1BZ-3.0 | 1BZ-3.4 | 1BZ-4.0 | 1BZ-5.3 |
| Width of cut (mm) | 1800 | 2200 | 2500 | 3000 | 3400 | 4000 | 5300 |
| Depth of cut (mm) | 200 | ||||||
| Dia of disc (mm) | 660 | ||||||
| Q'ty of disc | 16 | 20 | 24 | 28 | 32 | 36 | 48 |
| Weight (hp) | 1160 | 1250 | 1350 | 1430 | 1550 | 1900 | 2500 |
| Tractor power (hp) | 70 | 80 | 90 | 100 | 120 | 150 | 180 |
Detailed Photos
Packaging & Shipping
