RG6 Coaxial Plug Cable for CCTV Computer Data Communication Audio Cable

Product Description

Product Parametersrg6 coaxial cable
Construction

Inner conductor	Plain copper	Φ1.02±0.025mm
Dielectric	F. PE	Φ4.7±0.10mm
Outer conductor	Tinned copper	112x0.13mm
Shield coverage		95%
Sheath	PVC o rLSZH	Φ7.00±0.10mm

Electrical & Mechanical Characteristics

Impedance	53±3 Ohm0
Nominal capacitance	94pF/m
Velocity of propagation	66%
Insulation resistance	>2000 Mohm.Km
Inner conductor resistance	35.0 Ohm/Km
Outer conductorresistance	16.5Ohm/Km
Test/Operatig Voltage(max)	5KV/2KV
Operating temperaturerange	-30°C-+70°C
Copper Weight	18.7Kg/Km
Cable weight(approx.)	39.9Kg/Km
Screening effectiveness	100-900MHz	>55dB

Attenuation

Frequency(MHz)	Attenuation(dB/100m)	Attenuation(dB/100ft)
50	9.1	2.77
100	13.1	3.99
200	19.4	5.91
400	28.4	8.66
500	32.2	9.82
600	35.7	10.88
860	44.8	13.66
1000	49.0	14.94

Return Loss

30-300MHz	>26dB
300-600MHz	>25dB
600-900MHz	>24dB

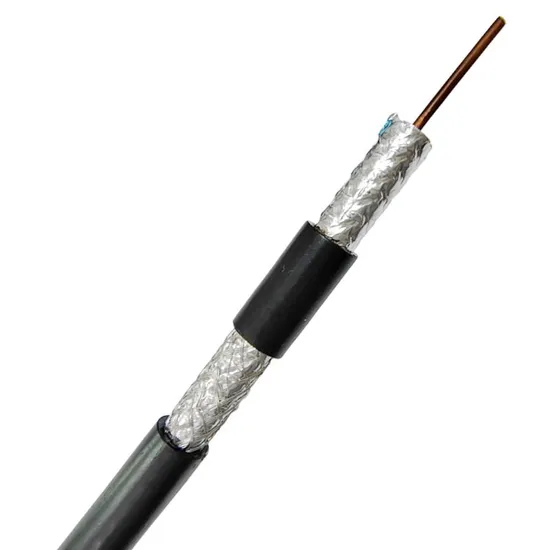

Detailed Photos
Company ProfileABOUT US
Zhejiang Hanli Cable Co., Ltd. is a professional manufacturer of tv cables and cable television network equipment. It has more than 300 employees, including 100 engineers with college degree or above, and more than 50 directly engaged in high-tech and new product research and development. And has a production site of more than 38,000 square meters, 12 domestic and imported production equipment, and a number of advanced cable testing equipment. The company's leading products include SYWV(Y)-75 series physical high foaming RF coaxial cableRG series access network coaxial cableSYWLY-75 series aluminum tube cable,digital communication cable and digital monitoring lineetc sold abroad. The company's technology center mainly develops new productsnew processes and new technologies, and has successively developed more than 30 provincial-level new products of which 26 have obtained national patents,and ten products have been identified as high-tech products in Zhejiang Province. This project was identified as a National Torch Program project. In the futurethe company will continue to develop new products and new processes to meet the high-tech and high-standard demands of the market.
Our AdvantagesWelcome to visit our factory and get our samples.
Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you.
Choose us, won't make you disappointed:
1.20years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001
6.Quick delivery time(20ft,25days)
FAQ1.Can I have some samples for testing quality?
A1.Yes, you can buy some samples of any our products for testing quality and market.
2.What is delivery time if we place order?
A2. It depends on order quanities. Usually,we can deliver goods within 15 days for small order. For more QTY, Let's confirm when you place official order.
3.Do you accept OEM/ODM?
A3. We support OEM/ODM service.pls don't hesitate to tell us your details.
