Farm Use Agricultural Machinery Hay Grass Packing Machine Round Hay Straw Baler

Product Description

Product Description
It is widely used for silage and dry storage of animal husbandry forage. It can save storage space and prolong the feeding time of green straw. After being packed and sealed, it will naturally ferment to produce probiotics, lactic acid bacteria and protein, thus naturally ferment.After being fed, livestock such as cattle and sheep are easy to absorb, and the growth rate will increase by 2%, which greatly reduces the cost of feed transportation and storage, and reduces the labor intensity of workers. It has brought real economic benefits to animal husbandry.

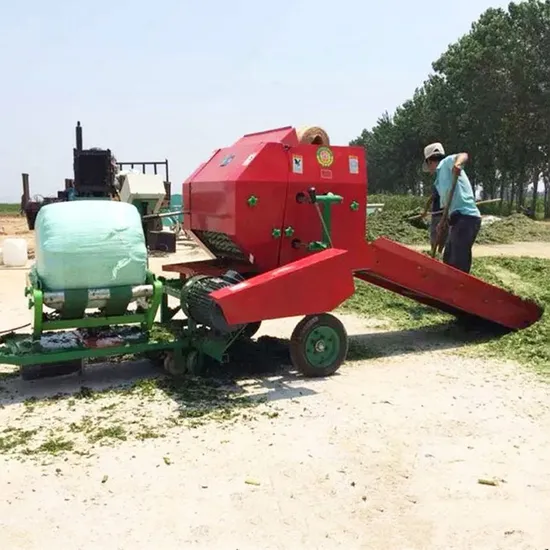

Silage Baler&Wrapper Machine is a machine for compressing, bundling and packaging crushed corn straw. This machine has the advantages of compact structure, simple operation, stable and reliable transmission, and flexible mobility. This series of forage baler is mainly composed of diesel engine, hydraulic system, storage system, compression mechanism, bagging mechanism, traveling mechanism, and electrical system.

Product Parameters

Model	BFSTW100	Bale size(mm)	550*520
Bale weight(kg)	35-85	Auxiliary power(kw)	0.55/1.1
Rated speed rpm	350	Production efficiency	50-65 bale/h
Bale size(mm)	550*520	Envelope efficiency	18 turns/2 layers * bundle
Wall panel material	pickled cold steel plate		26 turns/3 layers *bundle
Film cutting mode	voluntarily		37 turns/4 layers *bundle
Binding Method	voluntarily	Air pmp vlume(m³)	0.17
Number of Aluminum Rolls	30	Open and close the warehouse	manual/automatic
Diesel Engine Horsepower	15	generator model	STC-3
Diesel Engine Origin	Henan, Zhengzhou	Gen	three-phase alternator
Power	3kw	Start mode	key
Number of Coating Layers	counter adjustment	Wall plate thickness (mm)	4
Binding Material	rope made of hem(p)	Film pulling method	manual
Hem(p) Rope Binding S	distribution box regulation	Coating machine reducer	light worm gear
Density Regulation	travel switch	Operation of distribution box	manual/automatic
Aluminum Roller Bearing	built-in	Weight	980
Feeding Conveyor Belt(mm)	500*1750	Conveyor belt connection	leather belt
Aluminum Roller Material	aluminum alloy casting	Overall size(mm)	3500*1800*1600
Chain Model Common	10A 140knots	Gantry steel pipe(mm)	4*4
	08B 134knots	Overall unit	spray plastic
	06B 148knots	Turnover and turn-back mode	voluntarily
	10A 38knots	Matched forage film(l*w*h)	1800m*250mm*25um

Detailed Photos
Certificate of honor
Customer Evaluation
Delivery
FAQ
Frequently Asked Questions
Q: What's Service commitment?
A: 1.Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
3.Send every client a preferential quotation.
Q: What to do if the machine has a problem?
A: 24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
Q: How long is the warranty of your equipment?
A: Our warranty period is one year generally.
Q: What is your payment term?
A: Our usual payment term is: 30% TT in advance, 70% TT before shipment. Other ways can also be received after we both sides discussion and agreement.
Q: Does your price include freight?
A: Our usual price is based on FOB Shanghai, if you request CIF, please give us your delivery port
