CNC Whighway Guardrail Roll Forming Machine

Product Description

Product parameters
Raw Material:
Steel grade: Q235
Thickness: 2.5~4.0mm
Coil inner diameter:φ508~φ600
Coil out diameter: ≤φ1900
Coil weight: ≤10T

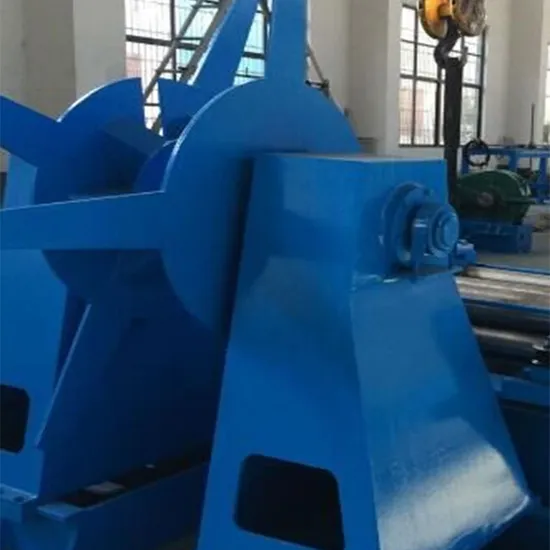

Automatic decoiler - Feeding - Leveling - Punching and cutting - Roll forming - Product packing manually The Structure of Machine Automatic expansion decoiler 1.Double unrolling machine, 2.Adopt automatic expansion system, power 2.2kw 3.Maximum coil weight: 10,000kg, 4.inner diameter: 450-600mm, out diameter max 1900mm 5.with brake system. Feeding & leveling wall plate type 9 rollers leveler, 2 roller feeding, 7 roller leveling. Leveling roller 120mm, material 40Cr, heat treatment HRC48º~52º. Four stand roller to control sheet up and down movement. Power: 11kw, inverter adjusting, speed: 10-25m/min, feeding width max 500mm. Punching and cutting: 1.Use four column type press from Yangli group, equip with punching and cutting die set, fit for 9 or 10 holes. With one set of middle hole punching, cylinder dia 160mm, traveling distance: 60mm 2.Cut to length by encoder: length accuracy 4320±2.0mm, length can set in PLC. 3.Fast feeding unit: after cutting, sheet feeding into roll forming unit, 2.2kw, roller Dia: 120mm, material 40Cr, HRC48º~52º. Roll forming machine 1.Main motor power: 45kw 2.Drive: gearbox driving, 10units, GY230 3.Main shaft diameter: 80mm and 40Cr steel 4.Roller material: GCR15 quenched 58°-62°, chromed 5.Roll station:12 stations 6.Speed: 2-3pieces per minute (4320mm length) Output table Control panel 1.Control system 2.Voltage, frequency, phase: 380v, 50hz, 3phase 3.Automatic length measurement: One-unit tooling of length measuring which is lightly pressed on the surface of the steel sheet; the tolling will roll with the moving speed of the steel sheet and then sense to measure its length. 4.Automatic quantity measurement 5.Computer used to control length & quantity, machine will automatically cut to length and stop when required quantity is achieved 6.Length inaccuracy can be amended easily 7.Control panel: button-type switch, touch screen 8.Unit of length: millimeter 9.Protection function 10.Motor over: Load protection 11.System over: Current protection 12.Short circuit protection e. Additional function Display total length produced Display total quantity produced Display forming speed
