Full Cover 3kw 6kw Fiber Laser Cutting Machine Sheet Cutter Equipment Cutting Laser Machine Metal New Design

Product Description

Full cover 3kw 6kw Fiber Laser Cutting Machine Sheet Cutter Equipment Cutting Laser Machine Metal new design
Product Description
Product Introduction

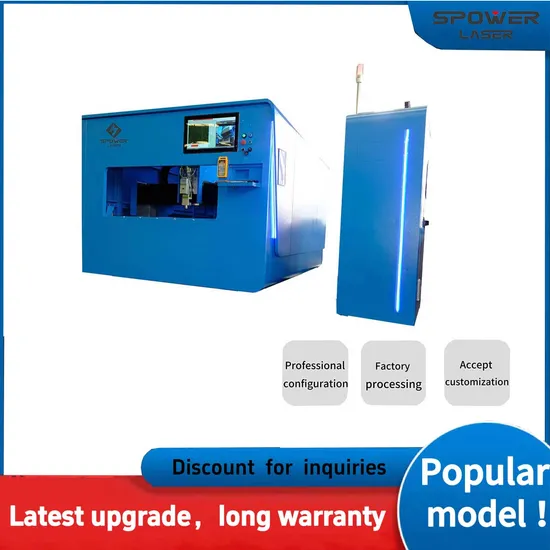

*Fiber laser cutting machine with cover and exchange table is designed for thin and thick metal sheets cutting. It adopts strong steel bed, rack drive system, professional pipe laser cutting CNC system, which ensure good cutting accuracy and efficiency of the CNC laser cutting machine.

*The covered structure reduces dust spillage during cutting and protects the environment. The design of the switching platform improves the loading speed, saves time cost, and is very cost-effective

Machine Advantages
1.Full Enclosed Design
Full-protection enclosed design to prevent laser damage to personnel;
Installed the real-time monitoring system monitors the processing process and observes the processing progress of each link.
2.Exchange Table
The dual-platform exchange function is added to save the time of material loading and unloading.
3. How it works:
When the first platform is cutting, the other platform can receive the cut workpiece and place the new steel plate, the whole process is automatic control, which saves time and cost for the factory.

Cutting Parameters

Laser(source)	1kw	2kw	3kw	4kw	6kw	8kw	10kw	12kw	15/20kw
mild steel(mm)	10	16	20	20	30	40	50	60	60
stainless steel(mm)	4	10	15	20	30	40	50	60	60
aluminum(mm)	2	6	12	15	30	35	40	50	50
brass(mm)	2	4	6	8	12	15	20	30	30
copper(mm)	1.5	4	6	6	10	15	20	25	25

Specifications

Technical Parameters

Models :	SPL1212P
Voltage	380V
control system	Cypcut
ball screw	Taiwan PMI
assistance	Wifi remote
motor and drivers	Japan Yaskawa servo
Location system:	Red dot indicator
laser cutting head	Au3Tech
square guide rail	Taiwan Hiwin
water chiller	Industrial CW6200
Application :	Metal cutting
Heavy duty body frame thickness	more than 9500kg

Machine Configuration

Auto focusing laser head 1. Laser head follow up function 2. Quick piercing3. Long service life	Machine Table The graphite plate with obvious protective effect is used to form the anti-burning partition, which can effectively prevent the beam from damaging the lathe and left and right mechanisms of the bed on the steel cutting machine laser
Aluminum alloy beam The laser cutting machine quipped the hollow aluminum alloy beam has undergone special processing	Water cooler It is dual temperature and dual control for the Metal Fiber Laser Cutting Machine. It has 2 water channels to cool the two core positions-laser and laser head.

Company Profile

Company Profile
BCAM has more than 15 years of experience and has built and installed thousands of machines for industries including Aluminum &Metal Composite Cladding, Signmaking, Graphics &Print Finishing, Cabinetry, Woodworking, Plastic Fabrication, Metal Fabrication, Foam Packaging, Point of Purchase, Solid Surface etc.

Cutting Samples
Appication
Metal plates, tubes: stainless steel, carbon steel, manganese steel, galvanized sheet,alloy plates, rare metal Application Industry Industry of kitchen ware, lamps and lanterns, panel beating, metal cabinets, auto parts, refrigerators, air condition, elevators, hotel metal supplies processing, etc

Related Machines
If you have any questions, please contact us Packaging & Shipping
How it is Packaged

1.Anti-collision package edge: All parts of the fiber laser cutting machine for tube are covered with some soft materials, mainly the use of pearl wool .
2.Fumigation wooden box:Our wooden box is fumigated, do not need to check the wood, saving the transport time.
3.Whole film packaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust. The outermost is a wooden box with a fixed template.
4.Wooden box at the bottom of a solid iron socket for easy handling.
After Sales Service

After-sales Service
1) 24 hours Technical support by Email or Calling .
2) English manual and CD video for machine using and maintaining.
3) Hardware: 1 years for machine, 10 month for laser tube (without person damaged).
Software: Whole life on update for free.
Maintenance and technological support: Whole life.

Customer Feedback

FAQ
Q1: How do I get the best price?
A: Different type of CNC machine apply to the different price.
Q2: What machine suits me best?
A: Different material and the different model apply to the different machine.Please tell us what's material you want to cutting or engraving ?And what's MAX size of carved material ?We will recommend the most suitable model and the best price for you.
Q3: What should I do if the machine fails during warranty period?
A: Just contact us----our sales are online for 24-hours and ready to help.Replacement of damaged parts for free(make sure it is not broken because of wrong operation).The CD and operation manual----It shows the most common failures in working processing and how to solve the problems.
Q4: Are you trading company or manufacturer?
A: We are a factory direct sale, can guarantee you got the best product at the best price.All the products have CE, ISO certifications, all the machines are tested well before delivery. There is a 12 months warranty.
Q5: How long is your delivery time?
A:Generally it is a weekday if the goods are in stock. or it is 15 working days if the goods are not in stock, it is according to your quantity.

If youhave any questions, please contact us
