Wholesale Floating Pontoon Undercarriage Hydraulic Amphibious Excavator Undercarriage Amphibious Undercarriage

Product Description

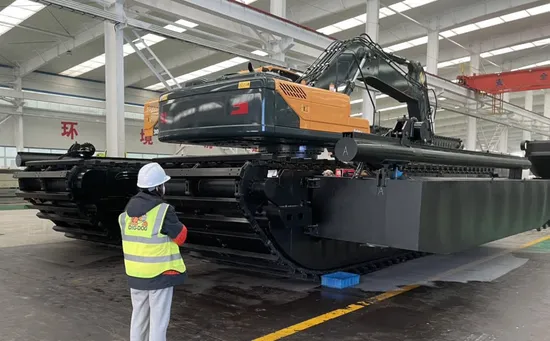

AMPHIBIOUS EXCAVATOR
DIG-DOG Amphibious Excavator is specially designed to work in a swampy area, wetland, shallow water, and all soft terrains with the ability to float on water. DIG-DOG well-designed amphibious pontoon/undercarriage has been widely and effectively applied for removing silty clay, clearing silted trenches, removing wood, and all swampland and shallow water operation where the traditional standard excavators have limits.
Amphibious excavator is also called floating excavator, which is specially designed to function effectively on rivers, swampy lakes, canals and settling pond rehabilitation areas. We have professional team to design and custom made high quality and versatile models of amphibious excavators for all major brands of excavators ranging from 5 to 50 tons.Bonovo team can offer different project solutions including dredging pump, long-way walking, loading platform,
sectional barge and long reach arms.
This product with beautiful appearance, high configuration,superior perfomance,low fuel consumption,wide operating range. It is suitable for loosing soil of vegetable greenhouse,campus greening of municipal departments. digging the hole for tree planting of.Fuit-land Nurseries. concrete pavement crushing,sand-gravel material mixing, construction work in the narrow place and so on.
Model and Specification

Description	Amphibious Undercarriage Models
	AP-50		AP-80		AP-140		AP-180		AP-200		AP-250		AP-300		AP-350		AP-450
Upper Tons	3-5t		6-8t		11-15t		16-19t		20-24t		25-27t		27-30t		30-40t		40-50t
Pontoon Grounded Length	1200		2000		3500		4500		5000		6000		6500		7000		7000
Undercarriage Length	5200		5700		6200		8500		9500		10500		10500		11500		13500
Overall Length	6100		7260		8070		10290		11460		13300		13610		14480		14480
	7300		9550		11300		12950		14450		14450		15450		15950		15950
	8500		10550		12300		13950		15750		15750		16750		17100		17100
Overall Height	2600		3700		3770		2870		3950		3980		4040		4140		4800
Counterweight Ground Clearance	1510		1810		2010		2010		2010		2010		2010		2200		2540
Spuds Height	6000		6000		6000		8000		8000		10000		10000		12000		12000
Overall Width	4700		5500		6160		6360		6800		6800		8000		8000		8000
Pontoon Height	1340		1640		1840		1840		1840		1840		1840		2040		2340
Track Gauge	2700		3500		3660		3660		3700		3700		4700		4700		4700
Overall Width	3700		4500		5160		5160		5200		5200		6400		6400		6400
Pontoon Width	1000		1300		1500		1500		1500		1500		2000		2000		2000
Spuds Cross Range	3500		4000		4500		5000		5600		5600		5600		6000		6000
Spuds Width	4100		4900		5560		5560		5600		5600		6800		7000		7000

Details Images
FAQ
Does it float?
Yes. However, working in open water requires additional pontoons and anchoring legs that are designed to give the extra stability necessary for safe operation on open water.
Is it safe to operate an amphibious excavator? Stability of the pontoons is the best on the market, hands down. We do the design calculations with a "safety first" frame of mind and our instructions explain how to operate the machinery in a safe manner. Each pontoon is divided into several water-tight compartments to minimize any risk in case of accident.
What are the advantages of your brand? We manufacture our products locally. Our customer service is exceptional and personalized for every customer. Every DIG-DOG product is armed and durable with a 12-month warranty. We use high quality materials & parts sourced from the very best in China.Our design team works closely with customers for any customized orders.
What logistics way for product delivery? 1). 90% in shipment by sea, to all main continents such as South America, Middle East, Africa, Oceania and Europe, etc.
2). For neighborhood countries of China, including Russia, Mongolia, Uzbekistan etc., we can ship by road or railway.
3). For light parts in urgent need, we can deliver in international courier service, including DHL, TNT, UPS or FedEx.
Which payment terms do you accept? We can work on T/T bank transfer and 100% irrevocable L/C. Please contact our customer representatives directly for a specific term.
