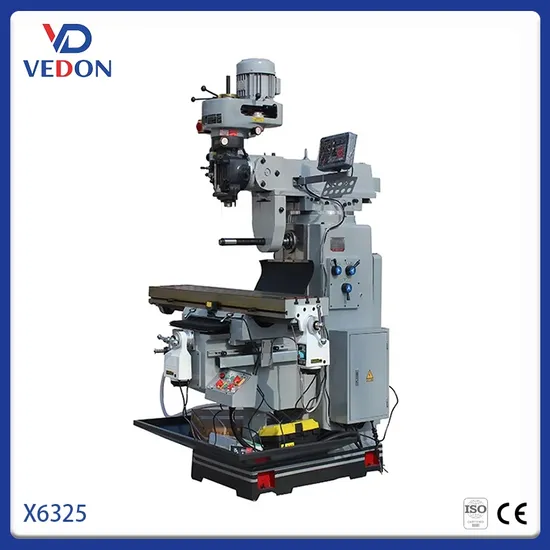

High Rigid Medium 3 Axis Metal Universal Turret Milling Machine Milling and Drilling Machine X6325c/X6325D Turret Milling Machine
| US$3,200.00-4,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
X6325
Type
Tool Milling Machine
Object
Tool
Structure
Rocker
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Table Travel (X) (mm)
850
Table Travel (Y) (mm)
420
Table Travel (Z) (mm)
420
Spindle Taper
Standard: R8, Optional: ISO30 / ISO40
Range of Spindle Speed(r.p.m)
65 - 4500 r.p.m
Weight (Kg)
1550
Max. Table Load(Kg)
300 Kg
Voltage
380V 50Hz
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Spindle Travel
127 mm
Spindle Motor Power
3HP
Head Swivel
90°
Head Tilting
45°
Number of Axes
3
Single Gross Weight
60.000 Kg
Transport Package
Plywood Box
Specification
1516*1550*2080mm
Trademark
Vedon
Origin
Shandong China
HS Code
8459590000
Production Capacity
350sets/Year
Product Description
Product DescriptionX6325 - Rectangular guideways on Y, Z axes with good rigidity,
X6323A - Dovetail guideways on Y, Z axes,
X6325B - Rectangular guideway on Y axis, and dovetail guideway on Z axis,
Hardened and ground table surface and guideways with precision ground,
Milling head adopts 3HP motor, 16 steps speed pulley head, variable speed head is optional.
Product Parameters
| Model | X6325C | X6325D |
| Table size | 254×1270 (10″X50″) | 254×1270 (10″X50″) |
| Table longitudinal travel | 850mm | 950mm |
| Cross travel | 400mm | 400mm |
| Vertical travel | 420mm | 420mm |
| T-slot Number/Width | 3-16mm | 3-16mm |
| Ram travel | 470mm | 470mm |
| Distance from spindle nose to table surface | 0~405mm | 0~405mm |
| Distance from spindle center to column | 140~609mm | 140~609mm |
| Spindle taper | ISO40 | ISO40 |
| Spindle travel | 127mm | 127mm |
| Spindle speed | 50HZ: 65~4500rpm 60HZ: 80~5440rpm | 50HZ: 65~4500rpm 60HZ: 80~5440rpm |
| Spindle feed | 0.04 ( 0.0015″ ) / 0.08 ( 0.003″ ) / 0.15 ( 0.006″ ) mm/revolution | 0.04 ( 0.0015″ ) / 0.08 ( 0.003″ ) / 0.15 ( 0.006″ ) mm/revolution |
| Spindle motor power | 3.75KW / 5PH | 3.75KW / 5PH |
| Head swivel | 90° | 90° |
| one miller per case | 1516×1550×2080mm | 1516×1550×2080mm |
| two miller per case | 1650×1750×2170mm | 1650×1750×2170mm |
| three miller per case | 1650×2285×2235mm | 1650×2285×2235mm |
| Machine weight | 1590kg | 1590kg |
Detailed Photos
At Shandong Vedon Intelligent Equipment Co., Ltd., We Specialize In The Design And Manufacturing Of High-Precision Cnc Machines For Metalwork Processing. Including 5 Axis Machining Center, Gantry Type Machining Center, Horitonal Type Machining Center, Vertical Machining Center, Cnc Lathe Etc.. With A Strong Focus On Innovation, Quality, And Reliability, Our Advanced Cnc Equipment Enables Precision And Efficiency In Every Application. Whether For Small-Scale Operations Or Large Industrial Projects, We Deliver State-Of-The-Art Solutions Tailored To Meet The Diverse Needs Of The Metalworking Industry. Powered By Cutting-Edge Technology And A Commitment To Excellence, We Are Dedicated To Enhancing Productivity And Driving Success For Our Global Clients.
FAQ
Q1. Could I put my LOGO on it or paint my own color?
A: Yes, As long as the order quantity reach to the MOQ.
Q2. What's your trade terms?
A: FOB, CIF, DAP or other terms are acceptable.
Q3. Could I order trail small order?
A: Yes,we have no MOQ for standard version products. The price is different from different order quantity.
Q4. What points need to be confirmed before placing the order?
A: Voltage, frequency, plug type trade term and have shipping agent or not.
Q5. What is your terms of payment ?
A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance, 70% before shippment. If you have another question, pls feel free to contact us as below.
