Soft Magnetic Nanocrystalline Core High Frequency Pulse Audio Transformers Core
| US$160.90-268.20 | 1 Set (MOQ) |
Basic Info.
Model NO.
KMNC-630
Certification
ISO9001, RoHS, ISO14001
Name
Nanocrystalline C Core
Part No.
Kmnc-630
Type
Tape Wound Coe
Ribbon Thickness
25um
Applications
Transformer, Pfc Choke, Output Inductors
Custom
Size, Material, Shape, Epoxy Coated
Lead Time
25-30days
Transport Package
Carton, Foam, Pallet
Specification
Nanocrystalline Alloy, 1k107b
Trademark
King Magnetics
Origin
China Guangdong
HS Code
8504901900
Production Capacity
5000000sets/Month
Product Description

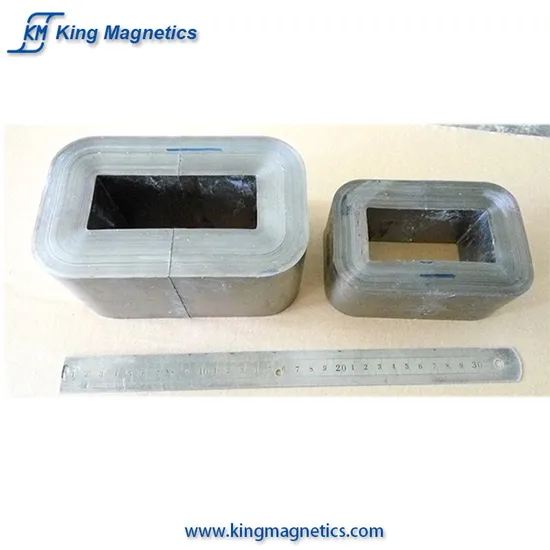

Features Material: Fe-based nanocrystalline
Saturation flux density induction: 1.25T
Curie temperature(ºC): 560
Stacking factor: >0.75
Saturation magnetostriction(*10^-6): <2
Resistivity (μΩ.cm): 130
Ribbon thickness: 25μm
Core shape: C type cut core
Applications >> High frequency transformer (frequency recommended 20-30KHz)
>> Solar inverter filter
>> PFC choke
>> Differential mode choke
>> Output filter
>> Hi-Fi Audio transformer
>> High efficient transformer
Standard Core Dimensions Of Nanocrystalline C Cores
| Part No. | Core dimensions | Mean path length | Effictive cross section | Weight | |||||
| A | B | C | D | E | F | LFe | Ae | Wt | |
| mm | mm | mm | mm | mm | mm | cm | cm2 | g | |
| KMNC-6.3 | 10 | 11 | 33 | 20 | 31 | 53 | 12.8 | 1.56 | 141 |
| KMNC-8 | 11 | 13 | 30 | 20 | 35 | 52 | 13.0 | 1.72 | 157 |
| KMNC-10 | 11 | 13 | 40 | 20 | 35 | 62 | 15.0 | 1.72 | 184 |
| KMNC-16A | 11 | 13 | 40 | 25 | 35 | 62 | 15.0 | 2.15 | 230 |
| KMNC-16B | 11 | 13 | 50 | 25 | 35 | 72 | 17.0 | 2.15 | 263 |
| KMNC-20 | 11 | 13 | 50 | 30 | 35 | 72 | 17.0 | 2.57 | 316 |
| KMNC-25 | 13 | 15 | 56 | 25 | 41 | 82 | 19.4 | 2.54 | 355 |
| KMNC-32 | 13 | 15 | 56 | 30 | 41 | 82 | 19.4 | 3.04 | 426 |
| KMNC-40 | 13 | 15 | 56 | 35 | 41 | 82 | 17.9 | 3.55 | 497 |
| KMNC-50 | 16 | 20 | 70 | 25 | 52 | 102 | 22.7 | 3.12 | 567 |
| KMNC-63 | 16 | 20 | 70 | 30 | 52 | 102 | 22.7 | 3.74 | 663 |
| KMNC-80 | 16 | 20 | 70 | 40 | 52 | 102 | 22.2 | 3.74 | 884 |
| KMNC-100 | 16 | 20 | 70 | 45 | 52 | 102 | 22.2 | 5.62 | 994 |
| KMNC-125 | 19 | 25 | 83 | 35 | 63 | 121 | 27.2 | 5.19 | 1102 |
| KMNC-160 | 19 | 25 | 83 | 40 | 63 | 121 | 27.2 | 5.93 | 1260 |
| KMNC-200 | 19 | 25 | 83 | 50 | 63 | 121 | 27.2 | 7.41 | 1575 |
| KMNC-250 | 19 | 25 | 90 | 60 | 63 | 128 | 28.6 | 8.89 | 1987 |
| KMNC-320 | 22 | 35 | 85 | 50 | 79 | 129 | 30.6 | 8.58 | 2047 |
| KMNC-400 | 22 | 35 | 85 | 65 | 79 | 129 | 30.6 | 11.15 | 2662 |
| KMNC-500 | 25 | 40 | 85 | 55 | 90 | 135 | 32.5 | 10.73 | 2722 |
| KMNC-630 | 25 | 40 | 85 | 70 | 90 | 135 | 32.5 | 13.65 | 3464 |
| KMNC-800A | 25 | 40 | 85 | 85 | 90 | 135 | 32.5 | 16.58 | 4207 |
| KMNC-800B | 30 | 40 | 95 | 85 | 100 | 155 | 36.1 | 19.89 | 5602 |
| KMNC-1000 | 33 | 40 | 105 | 85 | 106 | 171 | 39.0 | 21.88 | 6665 |
