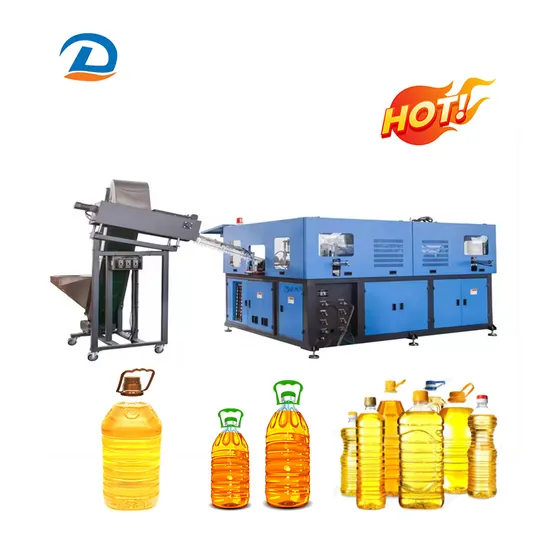

100ml-20L Automatic Pet Bottle Blowing / Plastic Mineral Water Blow Molding Machine/Blow Moulding Machine Price

Product Description

Product Parameters

	item	J2
Bottle type specification	cavity	2
	theoryoutput(PCS/HR)	1500
	Max. volume (L)	5L
	Bottle mouth maximum overall diameter (mm)	150mm
	Bottle biggest diameter	180mm
	Bottle maximum height	400mm
Power specifications	Light tube quantity	32pcs
	Light tube power	1.5kw
	Maximum heating power	48kw
	All electric machine installation	51kw
	actural consumption	35.7kw
Air pressure specification	Work pressure	7-9kg/cm2
	Low-pressure gas consumption	1600Ltr/min
	Blow bottle pressure	25-35kg/cm2
	Higher -pressure gas consumption	3400Ltr/min
Frozen water specification	Work pressure	5-6 kg/cm2
	Temperature range	10 C
	Consumption	6000kcal/hr
	Frozen water flow	50Ltr/min
Machine specification	Size of the machine	4.7x1.6x1.9 (m)
	Weight of the machine	3.0ton

This system is ideal for start-up and small-scale companies and is reliable, heavy duty, and capable of producing a wide variety of high quality P.E.T. bottles for many industries like water,juice, liquid detergent, vegetable oil, cosmetics, personal care items which are just a few examples. Feature: 1.Original air cylinder. 2.Minimize your initial investment by starting small. 3.Add additional systems economically as your business grows. 4.Bottles of different sizes can be produced simultaneously to meet your exact requirements. 5.Change over from one size to another can be completed simply and quickly. 6.The tooling costs (molds) are low since the design of the system is simple. 7.Systems can be dedicated to produce particular bottle sizes. A short operator-training period due to the simplicity of the design. 8.Maintenance costs are kept to a minimum and highly-trained personnel are not required
Related Products
Flow Chart
Drawing & Moulds
Details
Assistant Machine
FAQ
Q: How about the spare parts?
A: We will send Two year easy broken spare parts for free together with machines,shipping together.
Q: How long time for installation?
A: According your machines order , we will send one or two engineers to your plant, it will take about 7 days to 20 days .
Q: How to install my machines when it arrives ? how much the cost?
A: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.Customer pays for air tickets go and back, accommodation and USD50/ day/person.
Q:When can I get my machine after I paid ?
A: The delivery time is around 30-45 working days.
Q:What's your guarantee or the warranty of the quality if we buy your machines ?
A: We offer you high quality machines with 2 year guarantee and supply life-long technical support.
Q:Are you a trading company or a manufactory?
A : We are a manufactory, we supply the factory price with good quality, welcome to visit !
