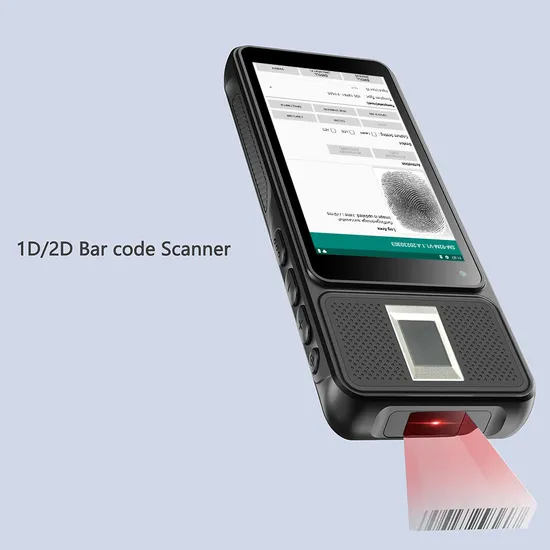

Uniwa F501 5inch Display Portable Handheld PDA Rugged Smart Mobile Phone 2D Scanner Terminal Scanner with Biometric Fingerprint Reader
Basic Info.
Model NO.
UNIWA F501
Kind
Laser Scanner
Scan Speed
300 scans/sec
Scanning Light Source
Laser
Usage
Barcode Scanner
Network Scanning
Support Network
Interface Type
RS232, USB
Scanning Element
Laser
Optical Resolution
300dpi
Application
Commercial Application
Operation System
Android 12
Battery
Removable 3.8V/5000mAh Li-Po Battery
Camera
5.0MP Front, 13MP Rear Camera with Flashlight
Display
5.0 Inches G+F IPS Capacitive Touch Screen, 1280*7
RAM/ROM
2+32GB
Buttons
Power Button, Volume +/- , Scan Button*2
Processors
Mt6762 Cortex A53 Octa Core
NFC
13.56MHz, Support Type a/B, MIFARE, ISO14443
Gnss
Support GPS/Glonass/Beidou
SIM Card Slot
* 2SIM+1 Psam or 1SIM+2 Psam
Transport Package
Carton
Specification
20PCS/CTN
Origin
China
HS Code
8471605000
Production Capacity
5000PCS/Month
Product Description
Product Features UNIWA F501 5inch Display Portable Handheld PDA Rugged Smart Mobile Phone 2D Scanner Terminal Scanner with Biometric Fingerprint ReaderHighlights:
1) FAP10/FAP20/FAP30 Optical Biometric Fingerprint Reader 2) Support NFC 3) Type-A and Type-C Doube USB Ports 4) MT6762 Octa Core Processor 5) Android 12 Operating System 6) 1D/2D Barcode Scanning Optional 7) 2GB/32GB or 4GB/64GB Memory 8) Removable 5000mAh Battery Detailed Photos
Product Description
| BASIC INFO | |
| Model No. | UNIWA F501 |
| Operating system | Android 12 |
| Dimension | 191*80*21.3mm |
| Weight | 310g |
| Material | Plastic |
| Color | Black |
| Languages | Multi-language |
| HARDWARE | |
| Display | 5.0 inches G+F IPS capacitive touch screen, 1280*720px |
| Processor | Mediatek MT6762 Cortex A53 octa core, 2.0GHz; GPU: IMG PowerVR GE8320 650MHz |
| RAM | 2GB RAM (4GB RAM optional) |
| ROM | 32GB ROM (64GB ROM optional), support TF card up to 128GB maximally |
| Camera | Double cameras: 5.0MP front, 13MP rear camera with flashlight |
| Battery | Removable 3.8V/5000mAh Li-Po battery |
| Sensors | G-sensor |
| Buttons | Power, volume +/-, scan button |
| NETWORK & CONNECTIVITY | |
| Bands | 2G: GSM 850/900/1800/1900MHz |
| 3G: WCDMA 850/900/1900/2100MHz | |
| 4G: FDD-LTE B1/B2/B3/B5/B7/B8/B20, TDD-LTE B38/B39/B40/B41 | |
| Wi-Fi | IEEE 802.11 a/b/g/n/ac, 2.4GHz/5GHz dual-band Wi-Fi |
| BT | V4.2 (BLE) |
| NFC | 13.56MHz, support Type A/B, Mifare, ISO14443 |
| GNSS | Support GPS/GLONASS/Beidou |
| I/O INTERFACES | |
| SIM Slots | * 2SIM+1 PSAM or 1SIM+2 PSAM |
| TF Card slot | * 1 |
| USB Type-A | * 1 |
| USB Type-C | * 1 |
| DC-IN | * 1 |
| FEATURES | |
| Fingerprint Module | Optional: FAP10/FAP20/FAP30, optical sensor (FBI and STQC certified) |
| 1D/2D Barcode | Optional |
| OTG function | Support |
| RELIABILITY | |
| Waterproof | IP54 |
| ACCESSORIES | |
| Charger(5V/2A) | *1 |
| Protective case | *1 |
| User Manual | *1 |
| BASIC INFO | |
| Model No. | UNIWA V5P |
| Operating system | Android 10.0 |
| Dimension | 179*74.5*22.5mm (Printer 49.5mm) |
| Weight | 330g (including battery) |
| Material | Plastic |
| Color | Black |
| Languages | Multi-language |
| HARDWARE | |
| Display | 5.5 inch IPS capacitive multi-touch screen, 1440*720px |
| Processor | Mediatek MT6762 Octa core, up to 2.0GHz; GPU: IMG GE8320, 650MHz |
| RAM | 2GB RAM or 4GB RAM |
| ROM | 16GB RAM or 64GB ROM, support TF card up to 256GB maximally |
| Camera | Double cameras: 2.0MP front camera, 13MP AF rear camera with flashlight |
| Battery | Removable 7.6V/2750mAh Li-ion battery (equal to 3.8V 5500mAh) |
| Sensor | Gravity sensor, light sensor, proximity sensor |
| Speaker | 1W |
| Keys | Home key, delete key, back key, confirm key |
| Buttons | Power button, Volume +/- , Scan button*2 |
| Thermal Sticker Printer | Sticker/label black printing: 70mm/s; 384 dots; 58mm paper slot; 35mm papar diameter |
| NETWORK & CONNECTIVITY | |
| Bands | 2G: GSM 850/900/1800/1900MHz |
| 3G: WCDMA 850/900/1900/2100MHz | |
| 4G: FDD-LTE B1/B3/B4/B7/B8/B12/B20; TDD-LTE: B38/B39/B40/B41 | |
| WiFi | IEEE 802.11 ac/a/b/g/n/d/e/h/i/j/k/r/v protocol, support 2.4GHz/5.0GHz dual-band WiFi |
| BT | V5.0 (BLE) |
| GNSS | Support GPS/GLONASS/Galileo/Beidou |
| I/O INTERFACES | |
| Nano SIM slot | *1 |
| TF card slot | *1 |
| USB Type-C port | *1, support OTG function |
| PSAM slots | Optional |
| RELIABILITY | |
| Waterproof | IP54 |
| Anti-shock | 1.2 meters drop on marble |
| Temperature range | Operating: -20ºC~+55ºC; Storage: -40ºC~+70ºC |
| OPTIONAL FUNCTIONS | |
| 2D Barcode Modules | Optional: Honeywell N5703 N6703, 6602, Newland E483 |
| ID Card Identification | Optional |
| NFC | Optional |
| ACCESSORIES | |
| USB charger(5V/2A) | *1 |
| USB cable | *1 |
| Protective film | *1 |
| User manual | *1 |
