Automatic Powder Coating Spray Booth for LPG Tank in Batch, Electrostatic Powder Painting Booth Equipment
Basic Info.
Model NO.
COLO-3145
Type
Powder Coating Booth
Substrate
Steel
Certification
CE, ISO
Condition
New
Filters Count
4 PCS(325*900cm)
Filters Type
Polyester Materical , Detacheable Filters
Power Supply
Electric
Inner Size
L3m*W1.4m*H1.55m
Booth Type
Pass Through Type
Frequency
50/60 Hz
Voltage
220V/380V 3phase
Filter Count
4 PCS, Quick-Release Type
Filter Material
Polyester
Filter Cleaning
Pneumatic
Transport Package
Wooden Case
Specification
COLO-3145
Trademark
COLO
Origin
China
HS Code
8424899990
Production Capacity
300sets/Month
Packaging & Delivery
Package Size
1000.00cm * 1000.00cm * 5000.00cm
Package Gross Weight
450.000kg
Product Description
Product Description

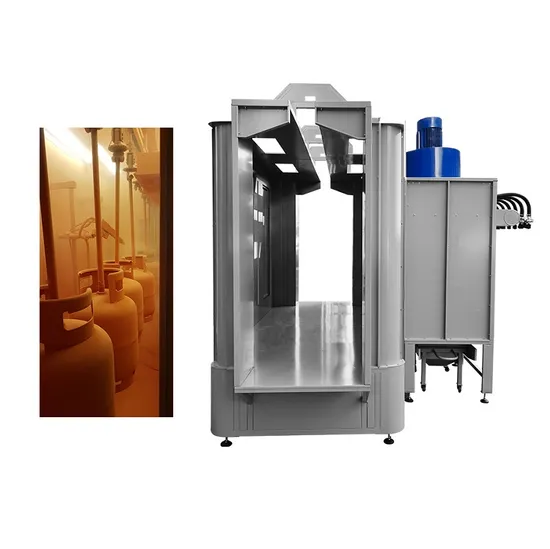

Automatic Powder Coating Spray Booth For LPG Tank in Batch, Electrostatic Powder Painting Booth Equipment
This is an automatic powder spray booth,drive through type, sutaible for painting LPG tank or gas cylinder or other metals in the powder coating line,can finish a lot painting parts,some fetures as below:
1. Booth material is powder coated steel. Booth one side is opened for automatic reciprocator powder coating and manual stand powder coating.
2. It equip with PLC control panel system ,more easily,quickly and accrurately for value settings. PLC controller also can control the value for oven at the same time.
3. It is easy to clean resulting in a quick color change and is safe to operate,no powder spillage out of the booth due to the powder recovery filters. Detail Features
Automatic Powder Coating Spray Booth Features 1. 0.1micron high-precision filters effectively separate powder particles and return clean air to the workshop.
2. A load-triggered pulsing system intermittently cleans filters for a longer life span.
3. Powerful and rigid exhaust fan provides a substantial decrease in noise at your shop.
4. Full-function PLC controller provides easy-to-use interface to set all processing parameters.
5. An economical fixed-collector-module solution for automatic powder coating operations.
6. Our booth fully constructed with powder-coated steel exceptionally increases stability and durability.
Specifications
| Model | COLO-S-3145 |
| Operating Dimensions | Width880 * Height1550 * Depth3000mm |
| Overall dimensions | Width1400 * Height2484 * Depth3000mm |
| Power Supply | 220V/380V, 3Phase, 50-60HZ |
| Fan Power | 5.5kw |
| Filter Count | 4 pcs, Quick-release Type |
| Filter Material | Polyester |
| Filter Cleaning | Pneumatic |
Application
COLO-3145 automatic powder coating spray booth with rotatable hanger and top track is specially suitable for powder coating LPG tanks, allows automatic and continuous production.
