High Precision Circular Saw Blade Sharpening Gear Grinding Machine for Alloy

Product Description

High Precision Circular Saw Blade Sharpening Gear Grinding Machine For Alloy Product Description

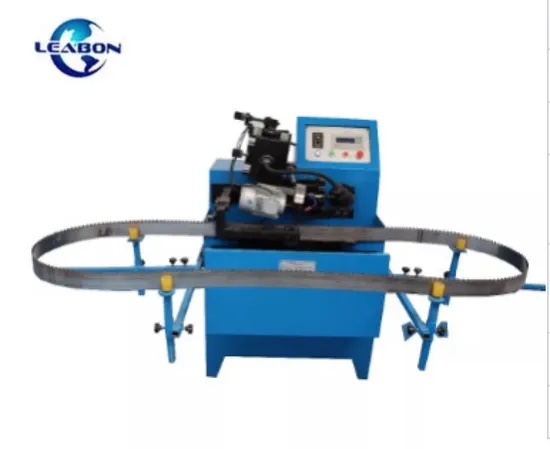

Automatic Carbide Band Saw Blade Sharpener
Automatic Band Saw Blade Sharpener mainly used to polish and process the tooth flank,the back of tooth,and the throat of tooth of the jugged saw blade.It's size is small-sized,easy to adjust and of simple structure.
Product Parameters

Grinding Blade Length	2800-11000mm
Grinding Blade Width	15-150mm
Grinding Teeth Pitch Range	10-35mm
Feeding Speed	0-50 Teeth/min (Adjustable)
Grinding Head Motor	0.37kw
Voltage	380V

Details Images
Related Products
Other Model Automatic Band Saw Blade Sharpener

Technical Parameter	MR1111	MR1115	MR1118
Grind Width	30-80mm	30-125mm	60-150mm
Sand Wheel Diameter	150mm	250mm	250mm
Working Frequency	50 tooth/min	50 tooth/min	50 tooth/min
Weight	52kg	100kg	200kg

Band Saw Blade Sharpener

Model	MR1106 Blade Sharpener
Grind Blade Width Range	15-60mm
Grind Blade Teeth Peeth Range	3-25mm
Grinding Teeth Speed	10-180 teeth/min
Sand Wheel Power	550w 50 hz 220v
Sand Wheel Speed	2800r/min
Weight	100kg

Metal Band Saw Blade Sharpener

Model	MR1103 Bi-Metal Band Saw Blade Sharpener
Grind Blade Width Range	5-60mm
Grind Blade Teeth Peeth Range	2-30mm
Grinding Teeth Speed	40-60teeth/min
Sand Wheel Power	250w 220v 50hz
Sand Wheel Speed	2800 rpm
Weight	30kg

Packaging & Shipping
Normally, we adopt wooden case or container.If export to European countries,the wooden box will be fumigated.If container is too small,we will use PE film for packing or pack it according to customers special request. Our transport operators & delivery facilities are ready on time and when the contains arrive at the factory , they are guaranteed to ship according to the scales.
Company Profile
After Sales Service 1.We can provide you the one year warranty but without the spare parts. 2.The professional and timely 24 hours after-sale service. 3.The relative video of the machine installation and instruction will be provided for you. 4.We can provide you the different mould to meet your different requirements. 5.We can also meet the special voltage demand. 6.The engineer is available to service machinery oversea.
