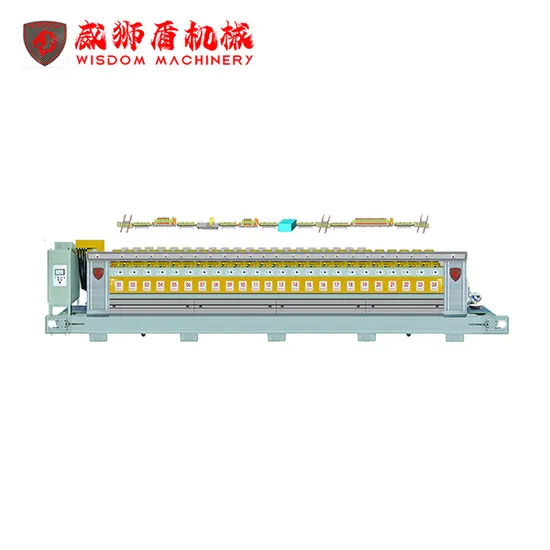

Automatic Stone Grinding Polishing Machine for Granite Marble Slab Poshlier Line

Product Description

Machine Features
The automatic line polishing machine is used for shining finish to granite slabs,granite tiles,terrazzo slabs or other cements slabs.This kinds of granite line polisher equipped with disk polishing heads,top of heads is casting material with aluminum bottom,and equipped with a whole reinforced phase rubber pad in the middle.Reasonable collocation can reduce the polishing cost and increase the output while ensuring the polishing quality.
Specification

Model	Model	ZDM-1200/08	ZDM-1200/12	ZDM-1200/16	ZDM-1200/20	ZDM-1200/24
No.Of head		8	12	16	20	24
Main motor power	kw	7.5	7.5	7.5	7.5	7.5
Total power	kw	71	101	132.5	170	194
Plate diameter	mm	200	200	200	200	200
Max polishing width	mm	1200	1200	1200	1200	1200
Polishing thickness	mm	10-60	10-60	10-60	10-60	10-60
Beam traveling speed	m/min	3-35	3-35	3-35	3-35	3-35
Feeding speed	m/min	1-4	1-4	1-4	1-4	1-4
Water pressure	mPA	0.1-0.15	0.1-0.15	0.1-0.15	0.1-0.15	0.1-0.15
Water consumption	m³/h	12	18	25	31	37
Air pressure	mPA	0.85	0.85	0.85	0.85	0.85
Weight	kg	12000	13000	14000	15000	16000
Dimension	mm	5300X3200X2500	6600X3200X2500	7900X3200X2500	9200X3200X2500	10500X3200X2500

Machine Pictures


Company Intruction
You can always trust Wisdom With more than 10 years committed to the stone machinery industry, Wisdom Machine is an experienced manufacturer.
Our machines are designed with American standard, and for maximum durability and high efficiency so that we can provide competitive stone machines for customers and continuously create value for customer, to achieve mutual benefit.
.
Other Products
Q: ARE YOU MANUFACTURER ? A: Yes,We are a branded company with its own factory,With more than 10 years committed to the stone machinery industry, Wisdom Machine is an experienced manufacturer. Q: CAN YOU MAKE CUSTIMZED STONE MACHINE? A: Sure. We have experienced and professional engineer, to make custmized stone machine is our advantage,Welcome OEM and ODM orders. Q: HOW TO ENSURE PRODUCT QUALITY? A: Our machines are designed with American standard,raw materials have quality control tests and the qualified products after inspection will enter the production workshop.In addition, complete the QC comprehensive inspection before packaging. QC will conduct a comprehensive inspection of our products prior to shipment. Q: WHAT'S YOUR MOQ AND DELIVERY? A: Our MOQ is 1 set.For standard machine, takes around 20-30 days, for custimzed machine, lead time will depends. Q: WHAT IS YOUR WARRANTY TIME? A: We provide 12 Months free parts warranty for our bridge saw. Q: IS THE MACHINE EASY TO OPERATE? A: Yes, Our machines are PLC full automatic,With easy operation interface available in English and Spanish.Feel free to contact us if have any questions or confusion,we will provide free professional online guide for you until you could use machine well.
