New Type UV Coating Line for PVC Floor Tile

Product Description

Product Description
UV Coating Machine
SPECIFICATION

(I)	Horizontal heating conveyor 3M length	1 set
1	m/c Dimension3000*1650*850(250)mm
2	Mode:SS stainless mesh belt1320mmW
3	motor/inverter 0.75KW/TaiwanShilin brand	Taiwan-Shilin-good quality
4	baking oven:2000*1500*250mmH
5	Temperature T50-80ºC
(II)	model1300 high Precise/evenness single roller coating mc.	1 set
1	machine dimension 1760*2800*850(700)mm
coating system
1	coating roller Φ300*1450mm* 1piece:
2	Evenness shinning coating rollerΦ165*1450mm*1 pc
3	Base coating roller Φ185*1310mm*1pc
4	power motor-TECO motor-very very good TECO 2.2KW/ inverter-Shilin
5	base roller coating motor 1.5KW/inverter Shilin
6	Shinning roller coating motor TECO 0.75KW/INVERTER Shilin
7	diaphragm pump 44* -1pc
8	heating tank:450*400*300* 1pc
2 conveyor system: dual roller conveyor system
(III)	Shilin inverter 0.75KW /* 2sets
(III)	2 meter belt conveyor 1300 model	1 set
1	machine size2000*1700*850 mm
2	belt conveyor PVC 2T*1320 mm
3	motor Shilininverter0.37KW

FEATURES
1.The UV coaing machine is suitable for all kinds of PVC sports flooring, plastic, metal, such as surface coating, the coating machine of the paint surface is smooth, good plumpness, without off color, luster evenly.
2.The UV coaing machine adopts PLC control system, synchronous operation convenient quickly.
3.Electric operation by independent wheel and tire machine of decelerate of inverter and control precision.
4.Configuration import scraper, solvent resistance.
5.The UV coaing machine can be coated all kinds of paint, such as UV, NC coating recovery quickly without waste.
6.Workpiece coating can be controlled between 5-10 g / m2.

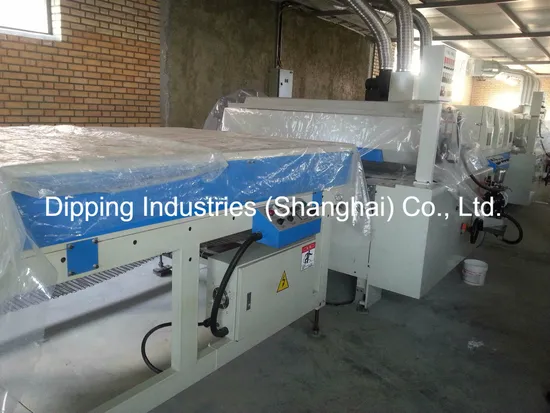

FLOWING LINE STRUCTURE
