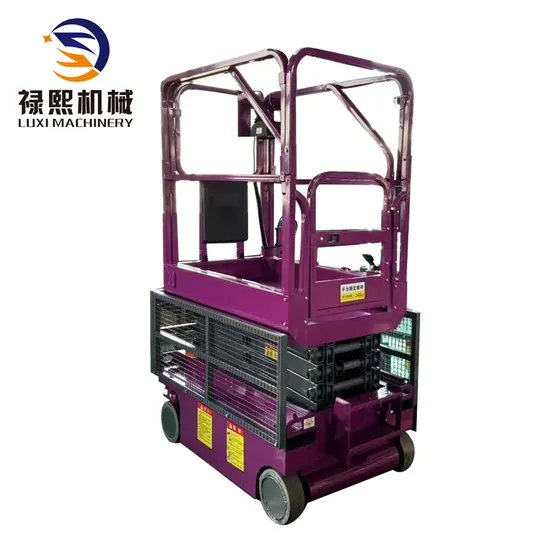

3m Full Automatic Self-Propelled Mini Scissor Lift in Battery

Product Description

3m full automatic self-propelled mini scissor lift in Battery

Parameters
Model	JCPT0507DC	JCPT0607DC
Safe Working Load(kg)	240	240
Number of passengers	1	1
Max working height(m)	5	5.8
Max height of platform(m)	3	3.8
Overall length(m)	1.3	1.3
Overall width(m)	0.76	0.76
Overall length(railsup)(m)	1.86	1.94
Overall length(railsdown)(m)	1.5	1.59
Platform size(m)	1.15×0.70	1.15×0.70
Min ground clearance(m)	0.05	0.05
Wheelbase(m)	1.03	1.03
Driving motor(DC/kw)	2×24/0.4	2×24/0.4
Lifting motor(VDC/kw)	24/0.8	24/0.8
Travel speed(stowed)(Km/h)	4	4
Travel speed(raised)(Km/h)	0.5	0.5
Up/downspeed(sec)	28/20	32/21
Accumulator(V/Ah)	2×12/55	2×12/55
Charger(V/A)	24/10	24/10
Gradeability	25%	25%
Max working slope(indoor)	2°	2°
DrivingTire(mm)	Φ230×80	Φ230×80
Fronttire(in)	6	6
Overall weight(kg)	554	588
Remarks: 1.All the Diemensions here is for your reference,The Finished Products are subject to the actual Dimensions. 2.We accept customization

Advantage: 12 years lift platform manufacturing enterprise integrating R&D, production and sales. Experienced export team World famous brand spare parts Quick responses For after-sale service,we have a complete parts supply network and can guarantee sufficient parts reserves and timely supply 24-hours technical support by email, telephone or other communication online.We could reply to you in 2 hours after received your any questions even on weekend and holidays engineers are available to your company if necessary.

FAQ
1.Q:How about your delivery time?
A: Lead time 5 days for in stock, If need customized, it will take about 15 -30 working days.
2.Q:Why should I buy from you not from other suppliers?
A:We are professional in producing the hydraulic lift equipment for logistics, warehouse, factory and construction using. We are a large-scale lifting platform manufacturing enterprise integrating R&D, production and sales.
3.Q:How long is your product warranty?
A:The product warranty period is 12 months.
6.Q:What should we do if there have quality problems?
A:During warranty period we will provide free spare parts for free.
