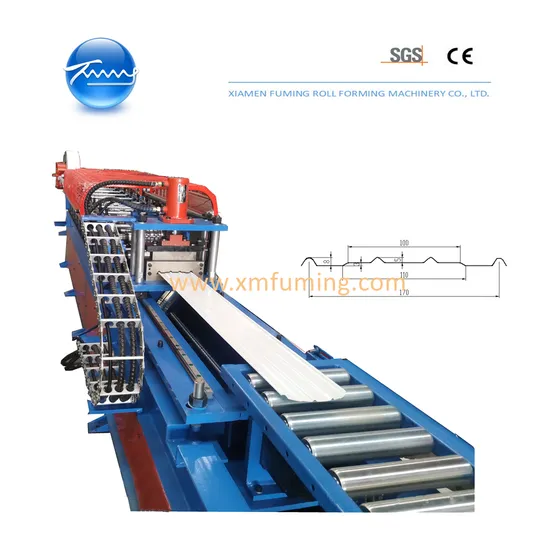

Roll Forming Machine for Yx170 Fencing Profile
| US$15,000.00-19,000.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
YX170 FENCING
Customized
Customized
Usage
Fencing
Color
Customized
Thickness
0.2mm to 0.7mm
Yield Strength
550MPa
Transport Package
Container
Specification
40GP
Trademark
FUMING
Origin
Xiamen
HS Code
8455229090
Production Capacity
15 Sets/Month
Product Description
| ROLL FORMING MACHINE FOR YX170 FENCING PROFILE | |
| Material Specification | |
| Thickness | 0.2mm to 0.7mm |
| Feeding width | Approx.200mm±3mm |
| Material | PPGI, GI |
| Yield strength | 550MPa |
| Machine Components | |
| 1.5Ton*300mm Simple Decoiler | |
| Load capacity | Max.1.5Tons |
| Coil inner-diameter | 508±30mm |
| Coil outer-diameter | Max.1200mm |
| Coil width | Max.300mm |
| Motor to drive | 1.5KW |
| Roll Forming Machine | |
| Driving system | Gear/sprocket |
| Forming stages | 10 stages |
| Roller material | 45# steel, hard chorme coated |
| Shafts Diameter | Φ60mm |
| Main motor | 4KW, frequency speed control |
| Line speed of rollformer | Approx. 0-25m/min or customized |
| Hydraulic Non-stop Cutting Device | |
| Cutting type | Non-stop to cut, Slug breaker |
| Cutting tool material | Cr12, heat treatment |
| Servo motor | 1.8KW |
| Hydraulic station | 4KW |
| PLC Control System | |
| Function | Control quantity and cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Inverter | Delta |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±2 mm |
| Control Voltage | 24V |
| 1.2 Meters Long Product Rack | |
