Hardline Cable 500 with Messenger CATV Network Aluminum Tube 500 Trunk cable with Messengerr
Seamless aluminum tube as outer conductor
Patented technology
Over 20 years of experience
High quality PE outer jacket
Asphalt or flooding compound is available
One of key OEM /ODM trunk cable suppliers in China
ISO certfied factory
Conflict Minerals DeclarationProduct description :

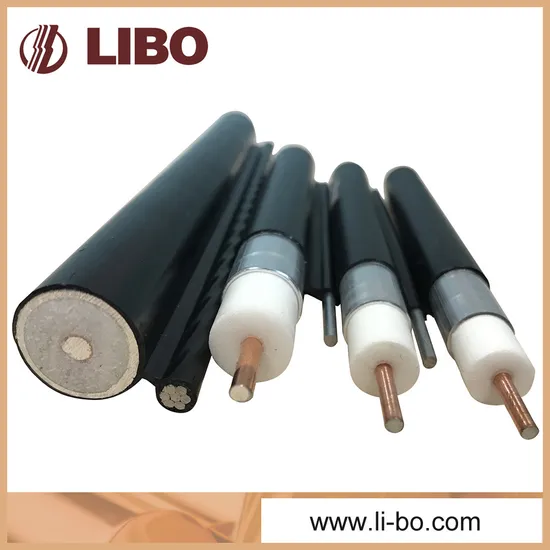

This is seamless aluminum tube trunk cableSolid aluminum tube swaged onto dielectric core, fully bonded copper clad center conductor, medium density PE jacket, "figure 8" integrated messenger.
Applications:
P3 500JCAM109 trunk cables is manufactured with a seamless conforming aluminum outer sheath, it has is used for main cable of CATV system, such as base station and equipment cabinets, it is a lower-cost alternative to the traditional, corrugated copper coaxial cables.
Shield:
Solid aluminum tube
Nominal outer conductor thickness: 0.024"(0.61mm)
Jacket:
Medium density PE
Nominal jacket diameter:0.560"(14.22mm)
Nominal Jacket thickness 0.030"(0.76mm)
Center conductor:
Copper clad aluminum (CCA)
Nominal diameter: 0.109" (2.77mm)
Dielectric:
Micro-cellular foam PE
Nominal diameter 0.450"(11.43mm)
Outer conductor:
Seamless aluminum tube
Nominal diameter: 0.50" (12.70mm)
Outer jacket:
High quality PE
Nominal diameter: 0.56"( 14.22mm)
Messenger:
Nominal diameter of steel messenger: 0.109"(2.77mm)
Minimum breaking strength of messenger: 1800lbs (816KGf)
Packing:
Mechanical characteristics:
Minimum bend radius: standard=6.0"(15.2cm)
Minimum bend radius: bonded=3.5"(8.9cm)
Maximum pulling tension=300lbs(136KGf)
Electrical characteristics:
Capacitance: 15.3±1.0pt/ft.(50±3.0nf/km)
Impedance: 75±2 ohms
Velocity of propagation: 87% nominal
Nominal DC loop resistance @68OF: 1.72 ohms/1000ft. (5.64 ohms/km)
Attenuation@ 68OF(20oC):

@Frequency MHZ	Db/100ft. (MAX.)	dB/100 meters(MAX.)
5MHZ	0.16	0.52
55MHZ	0.54	1.77
83MHZ	0.66	2.17
211MHZ	1.09	3.58
250MHZ	1.20	3.94
300MHZ	1.31	4.30
350MHZ	1.43	4.69
400MHZ	1.53	5.02
450MHZ	1.63	5.35
500MHZ	1.73	5.67
550MHZ	1.82	5.97
600MHZ	1.91	6.27
750MHZ	2.16	7.09
865MHZ	2.34	7.68
1000MHZ	2.52	8.27
