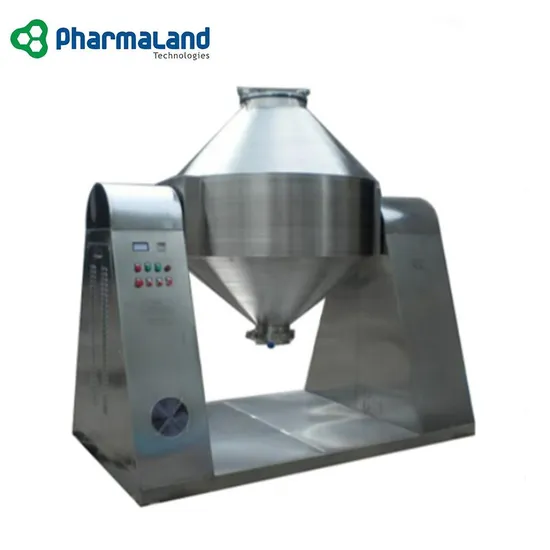

Mixing Powder Machine Double Cone Vertical Dry Powder Mixer Machine Mixing Equipment

Product Description

Mixing powder machine double cone Vertical Dry Powder Mixer Machine Mixing Equipment
Product Description Technique Parameter:

Model	Barrel Volume(L)	Max. Loading Volume (L)	Productive Capacity(kgs/time)	Motor Power(kw)	Mixing Speed (r/min)	Dimension(mm)	Weight(kg)
PSH-100	100	40	25	0.75	12	1580*650*1350	550
PSH-200	200	80	50	1.1	12	1800*750*1650	580
PSH-300	300	120	75	1.5	12	2050*850*1900	800
PSH-400	400	160	100	1.5	8~10	2300*850*1850	1000
PSH-500	500	200	120	1.5	8~10	2400*1050*2100	1200
PSH-800	800	320	200	2.2	8~10	2500*1200*2300	1400
PSH-1000	1000	400	250	3	8~10	2800*1500*2500	1800
PSH-2000	2000	800	400	4	8~10	3400*1600*2700	2100
PSH-3000	3000	1200	750	5.5	7	3500*1680*2900	2400
PSH-4000	4000	1600	1000	7.5	6	3600*1800*3100	2600
PSH-5000	5000	2000	1200	11	6	3900*1900*3300	2800
PSH-6000	6000	2400	1500	15	6	4100*2000*3500	3000
PSH-8000	8000	3200	2000	18.5	6	4300*2200*3700	4000

Advantages Application
Functionality
1. High-Efficiency Mixing:
- Ensures high uniformity mixing of powdery and granular materials.
Applications
1. Industries:
- Suitable for chemical, light industry, machinery and electronics, mining, defense, agriculture and animal husbandry, scientific research, and other enterprises.
Performance
1. Mixing Quality:
- No issues with centrifugal force, specific gravity segregation, stratification, or accumulation.
- Uniform mixing achieved under the weight ratio of suspended beads.
2. Charging Coefficient:
- Ranges from more than 40% to less than 60%.


Advantage
1. This equipment adopts a cone-shaped cylinder with a novel structure, which has a better mixing effect than normal.
2. The structure is exquisite, the appearance is beautiful, and it can be used in the workshop with a building height of four meters.
3. When the materials are mixed, there is no mechanical extrusion and strong abrasion, which can keep the material particles intact, easy to discharge, and easy to clean when changing products.
4. Equipped with an automatic timing device, which can be set to stop automatically in 0-60 minutes.
5. The stainless steel butterfly valve is used for discharging, and the mixing process is carried out in the closed state without dust leakage and flying phenomenon.
6. Adopting the principle of gravity diffusion to mix, the pressure feed to the material is small, and the material will not be sheared and crushed.
7. The cylinder body is made of high-quality stainless steel, and the inner and outer walls are polished. During the mixing process, it does not pollute the materials, has low power consumption and is easy to clean.
8. Simple operation, easy to clean, suitable for G.M.P food factories.9. The large-volume mixer can be equipped with a feeding system or a feeding platform to improve work efficiency and improve the working environment.

Detailed Images

Delivered Project
Company Information
Pharmaland Technologies Ltd, is a Canada company that was found in 2005 in Toronto with a version to offer affordable quality nutraceutical equipments and technical supports to our customers in nutraceutical and food industries. With a global source of technologies and partnerships with those strategic manufacturers mainly in China, Pharmaland offers those most competitive products of the latest technologies with the world leading brand value.

Pharmaland Technologies' machines are designed and developed with concepts and standards of Canadian mechanical quality and safety, and built up from our facilities of jointed venture and strategic partnership globally, mainly from those leading nutraceutical machinery manufacturers in China to offer solid, dependable, affordable and build-in last and long durations of production and package need.

We have our technical support team both in Toronto and Shenzhen China. We have our workshop, showroom and training center as well as parts inventory warehouse in China to provide our prompt service to global customer need.

Packaging & Shipping
FAQ Q1: How can you ensure the machines' quality?
A1: Our factory is equipped with high precision lathe, and we only adopt superior material and leading brand components, the machines are designed in accordance with GMP standard.
We have very strict internal inspection during production and before shipment, will provide photos and testing video before shipment to our clients, the machines have one year warranty but life time service .
Q2: Will validation documents provided?
A2: Yes, we can provide full set documents, IQ, OQ,PQ etc.
Q3. Any certificate you can provided?
A3: ISO9001. CE and GMP approved.
Q4: What kind of after-sales service you can provided?
A4: 1. We offer 12 months warranty and lifetime technic service .
2.Here is any technic problem, we will response within 24 hours by email or over phone, if problem can't be solved on-line, we can arrange technician to provide on-site service.
Q5: Can you provide customized manufacture?
A5: Yes, we have professional technician team to provide customized solutions, just share with us your request for evaluating.
Q6. How can I trust you for first time cooperation?
A6:
1. We provide our business license for verification.
2. With over 20 years of industry experience and good reputation on the market.
3. You're welcome to visit our factory.
4. We support online ordering.
5. Balance payment is made upon satisfactory inspection of machines
