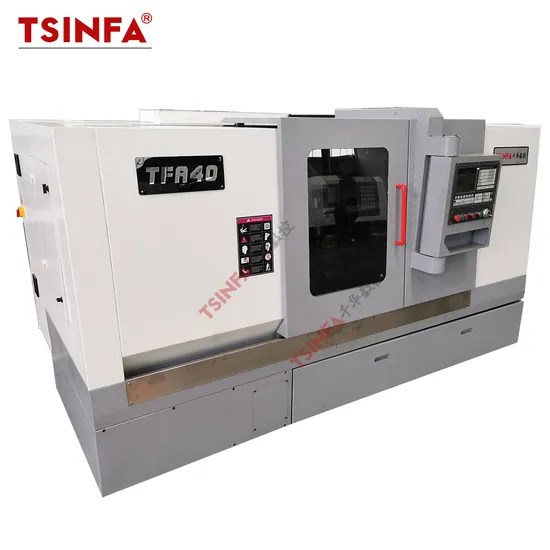

Flat Bed CNC Lathe 2 Axis CNC Turning Center Tfa40s*1000mm High Precision

Product Description

Product Description
The TFAS series horizontal turning center has good rigidity, high efficiency and convenient chip removal. After being equipped with a power turret, C-axis and Y-axis, it has turning functions as well as drilling and milling functions, so that most or all of the parts processing processes can be completed on this machine tool to improve production efficiency and processing accuracy.With C-axis function (can be indexed at any angle), one clamping can complete multiple functions such as turning, milling, drilling, tapping, etc., avoiding the error caused by secondary clamping. It is very suitable for machining shaft and disc parts, turning threads, arcs, cones, and internal and external curved surfaces of rotating bodies, and other workpieces with complex shapes and more processes. The rigidity of the spindle, bed, tailstock and other components is reasonably matched in the design, which greatly improves the rigidity of the whole machine and ensures the stability during heavy cutting. Therefore, the external circle precision of this machine tool can reach IT6~IT7 level. As a general-purpose machine tool, it is particularly suitable for high-efficiency, large-scale and high-precision machining of rotating body parts in locomotive, aerospace and other industries.
Product Parameters

Specification	Units	TFA40	TFA40S	TFA50	TFA50S
Turning Diameter over bed	mm	Φ400	Φ400	Φ500	Φ500
Turning Diameter over slide	mm	Φ195	Φ195	Φ240	Φ240
Workpiece length	mm	500/1000	500/1000	500/1000	500/1000
Bed inclination angle		45°/30°	45°/30°	45°/30°	45°/30°
Travel X-axis	mm	240	240	250	250
Travel Z-axis	mm	500/1000	500/1000	500/1000	500/1000
Spindle mount		A2-5	A2-5	A2-6	A2-6
Spindle taper		MT6#	MT6#	MT6#	MT6#
Spindle bore	mm	Φ56mm	Φ56mm	Φ65mm	Φ65mm
Pass bar diameter	mm	Φ41mm	Φ41mm	Φ50mm	Φ50mm
Maximum spindle speed	rpm	5000	5000	5000	5000
Surface roughness (steel parts)		Ra≤1.6	Ra≤1.6	Ra≤1.6	Ra≤1.6
Tool rest type		8 station hydraulic turret	12 station power turret	8 station hydraulic turret	12 station power turret
Tailstock sleeve diameter / stroke	mm	∮58mm / 120mm	∮58mm / 120mm	∮58mm / 120mm	∮58mm / 120mm
Taper of tailstock		MT4#	MT4#	MT5#	MT5#
Overall dimension	mm	2450 x 1700 x 1750	3450 x 1700 x 1750	2450 x 1700 x 1750	3450 x 1700 x 1750
Net weight	kg	2500kg	3200kg	2500kg	3200kg

Detailed Photos

Company Profile
Shandong TSINFA CNC Equipment Co., Ltd. was founded in 2005, The registered capital is 20 million yuan. The company has independent import and export rights, and obtained the European quality management council CE certification. The company is located in the south of Shandong province Mozi hometown, Beijing-Shanghai high-speed railway, Beijing-Fuzhou expressway, 104 national highway through the north and south, to the south is Weishan lake, to the north lies mount tai, convenient transportation, industrial development. As a member of China machine tool industry association (CMTBA), passed the ISO 9001:2015 quality management system certification, the company is constantly innovating in the development, relying on the strong economic strength, advanced and sophisticated professional production equipment, strong technical force, to standardize the entire operation of the enterprise management system mode. Products cover metal cutting machine and metal forming machine two categories. Metal cutting machine tools are: CNC machining center, CNC lathe, inclined bed CNC lathe, general lathe, vertical milling machine, horizontal milling machine, universal milling machine, turret milling machine, drilling and milling machine, slotting machine, gouging machine, turning milling complex machining center, etc. The equipment is exported to USA, Poland, Russia, Sri Lanka, Peru, Chile, Saudi Arabia, southeast Asia and Africa and other countries and regions. It is widely used in automobile, motorcycle, textile machinery, hardware products, 3C, construction machinery, home appliances, railway, ship, other industries. We adheres to the quality of integrity, ensures that every equipment is qualified to leave the factory, to ensure that they can do their best for employees and customers.
Certifications
Packaging & Shipping
FAQ
Q1:How can l choose the most suitable machines ?Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .Q2: What's your main products of your company?Products cover metal cutting machine and metal forming machine two categories. Metal cuttinging machine tools are: CNC machining center, CNC lathe, manual lathe, manual milling, sawing machine, etc. Metal forming machine: hydraulic press machine.Q3: Where is our factory located? How can l visit there?Our factory is located in Tengzhou City , Shandong Province, 277500 China. You are warmly welcomed to visit us.You are warmly welcomed to visit us.Q4. How do you transport it?Provide Transportation Solution DDP/CIF/FOB/FCAQ5: What's the Payment Terms ?T/T ,30% initial payment when order,70% balance payment before shipment .Q6: What's the MoQ?1 set .(Only some low cost machines will be more than 1 set )We want to know:1. We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible,
better to send us workpiece drawing, so that we can recommend you most suitable model!
2. lf need ClF Price, please kindly tell us the port of destination.
