Wenzhou Xusheng Hot Sales Sanitary Stainless Steel SS304 Kscp Series 3HP Centrifugal Beer Pump for Brewing Equipment

Product Description

Product Description

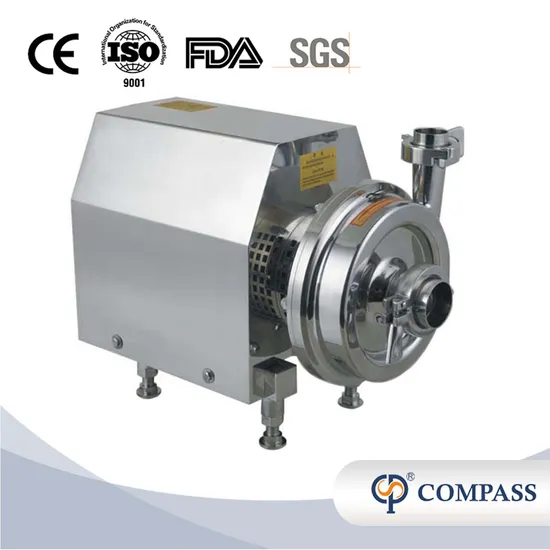

Wenzhou Xusheng Hot Sales Sanitary Stainless Steel SS304 KSCP Series 3HP Centrifugal Beer Pump For Brewing Equipment
The centrifugal pump is manufactured in stainless steel and with a hrouded motor. Its sanitary and cost-efficient design makes it perfect for the dairies, beverages, food-processing, pharmaceutical and fine chemicals industries. Operating Principles Housed inside the casing, the impeller rotates in conjunction with the pump shaft. with this arrangement, the impeller blades convey energy to the fluid in the form of kinetic energy and pressure energy. This pump is not rever sible by simple by simple reversal of the direction of rotation,the direction of rotation is clockwise when the pump is viewed from the rear side of the motor.

Product Parameters
Product Photos
Main Parameter

Material Contact Parts	SS304, SS316L (1.4301,1.4404)		Provided with material inspection report
Material Non-contact Parts	SS304 (1.4301)
Seal Gasket	SILICONE, EPDM, NBR, FPM and PTFE
Max Flow	130m³/h
Max Head	130M (13bar)
Motor Power	0.55kw~30kw
Motor Brand	SIEMENS, CHINA MOTOR
Max. Speed	3600RPM, 2900RPM, 1400RPM
Voltage	110V, 220V, 380V, 440V
Motor Frequency	50HZ, 60HZ
Type of Hertz	Single Phase, Three Phase
Available Connection	Clamp, Union, Flange, Threaded Fittings
Mechanical Seal	SIC/C/EPDM (Standard), Alloy Material
Type of Mechanical Seal	Single Mechanical Seal, Double Mechanical Seal
Type of Impeller	Open Impeller, Close Impeller, Semi-open Impeller
Temperature	-20°C ~140 °C

The Production Process of productOrder raw materials → processing of raw materials → assembly of accessories → installation of motors → semi-finished products → test performance → Screw Fastener → Visual inspection&functional testing → Packaging → Final inspection
Product Drawing

Assembly Sheet
Code	Qty	Items
1	1	Motor
2	1	Pump guard
3	4	Bolt, gasket
4	1	Coupling
5	1	shaft
6	1	Coupling guard
7	1	Connection base
8	4	Bolt, gasket
9	1	Pump cover
10	1	Pump body
11	1	O shaped ring
12	2	Nut, gasket
13	1	Impeller
14	2	Support
15	4/6	Bolt, gasket
16	4	Nut, bolt, gasket
17	1	Mechanical seal
18	1	Water cooled double-end seal

Related Product Photos
If you have any inquiry or question for our valves, please kindly do not hesitate to let us know soon.We also produce other valves and pumps, welcome to Xusheng here, we will try our best to quote you in competitive prices.

Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
If small order and choose by express , the items are packed by shrink wrap and secondly carton cases.
If heavy weight of cargos,which be packed by strongly seaworthy plywooden cases .
In order to protective items , which will be packed by safety and resistance to shock in plywooden cases.
Product Application
XuSheng & ComPass Pump are widely applied to many fileds,such as beer,beverage,dairy food,fruit juice,pharmacy,biological etc.
Company Profile
Founded in 2011,Xusheng Valves(Compass Valves), as a global sanitary valves manufacturer,has grown to become one of leading valves manufacturers for high precision stainless steel sanitary valves, pipe fittings,pumps and tanks.

Totally 112nos of workers and the factory Covers 4035m2,our warehouse covers 1000m2. We have 29 sets of LG Mazak machines and other CNC machine from Japan ; Meanwhile,we have 2 sets of automatic machining unit.

To assure better quality, we have the full inspecting quality control equipment: 1nos Ra roughness instrument, 3nos stainless steel spectrometer, numbers of roundness instrument, numbers of thickness instrument, numbers of radius instrument, 3 nos pressure testing center.

Xusheng Valves(Compass Valves) is still developing and innovating new products to ensure that the products are more energy-efficient, efficient and competitive.
FAQ
Q1. Are you a trading company or manufacturer ?
A:We are a manufacturing factory.
Q2. What's the payment terms?
A:For small testing orders,we accept Paypal,Western Union,T/T and credit Card.
For mass orders,we accept T/T and L/C.
Q3.How do you control the quality?
A:Quality control is very important to avoid material mixing and poor quality.We control the quality from beginning to the end.We only have 304 and 316L two different materials.100% inspection on raw material.During production,different materials in different place.After materials are finished,we choose 10% for inspection.If there is 0.1% problem in 10%,then no excuse to go ahead for inspecting 100% of the materials.
Q4.If there is any quality problem,how do you solve it?
A:We are proud that we never let one customer leave us.We are not 100% perfect,there is some quality problem.We try our best to provide the correct materials in the beginning,so we need less time for quality problem.If there is any quality problem,we take the responsibility.We believe what we are doing together,it will get back tomorrow.If we leave our responsibility,customer will leave us.If we always take our responsibility,we keep our customers with us.
Q5.How long is your delivery time?
A:For normal production in 7-10days.For bulk order in 15-25days.
Q6.Warranty
A:One year warranty for all of our stainless steel products.Gaskets are not included due to the different application for customers.
How to Order ?
How to Order Sanitary Centrifugal Pump ?
1.What's material quality? Such as SS304 and SS316L for optional
2.What's flow rate for centrifugal pump, such as 1500 liters per hour ? 3. What's head, such as 14 meters ? 4. What's motor power, such as 0.55kw ? 5. What's voltage and hertz, such as 380v, 50hz, three-phase? 6. What's motor brand, such as Siemens motor ?
7.What's connection end? Such as butt-weld, tri-clamp, male threaded, female threaded, union, ect. 8.What's design temperature and working temperature for pump ? 9. Do you need single mechanical seal or double mechanical seal? 10. Type of impeller, such as open impeller, close impeller, semi-open impeller ?
