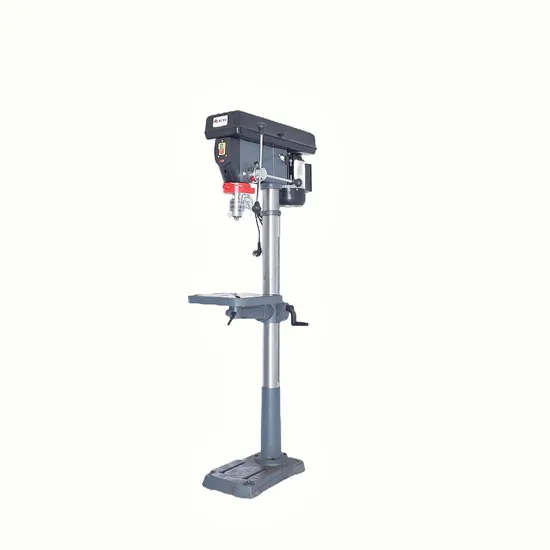

16-Speed 25mm Heavy-Duty Floor Drill Press for Workshops
Basic Info.
Model NO.
DP20104
Structure
Bench Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
0
Hole Diameter
5-20
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE
Condition
New
Model
Dp201704
Motor
750W
Swing
430mm
Speed
16
Max.Drilling Capacity
25mm
Nw/Gw.
67/72
Box Size
1400X495X245
Transport Package
Box
Specification
1400X495X245
Trademark
Jingren
Origin
China
HS Code
8459290000
Production Capacity
10000/Year
Product Description
Product Description
25 mm 16 speed floor drill, round table and sink table can be selected, laser positioning and built-in lighting options. The rotating diameter of the machine is 430mm, and the spindle travel is 80mm
Detailed Photos
Product Parameters
| MODEL | DP201704 |
| MOTOR | 750W/1100W |
| Swing | 430mm |
| Max.Drilling capacity | 25mm |
| Taper | MT2/MT3 |
| Spindle travel | 80mm |
| Spindle Speed | 16speed |
| Speed range 50HZ | 160-3000rpm |
| Speed range 60HZ | 200-3630rpm |
| Table Size | ¢290mm/330X330 |
| Base size | 480X280mm |
| Column Diameter | ¢80mm |
| Max.distance from spindle end to surface of table(mm) | 680mm |
| Max.distance from spindle end to surface of base(mm) | 1160mm |
| Table Tilting Range | 0-45° |
| Overall Height | 1635mm |
| NW./GW. | 67/72 |
| Carton size | 1400X495X245 |
| Q'ty/20 container | 96 |
https://jingrendrillpress.en.made-in-china.com/product-list-1.html Certifications
CE
FAQ
Q: Are you a manufacturer or a trading company?
A:We have been in this industry for more than ten years, with our own manufacturing plant, and our own research and development trade production team.
Q: How is your quality control?
A: We have QA & QC department to make sure qualified products us.
income raw material inspection and first unit sample confirmed by QA before assembling; processing, duration & performance testing carried out by QC before packing by 100%;
Q: What's your payment term?
A:The payment term is30% down payment and 70% balance before shipment.
Q:Can you accept smaller order?
A:Yes, our MOQ is 50pcs without customized color and package.
