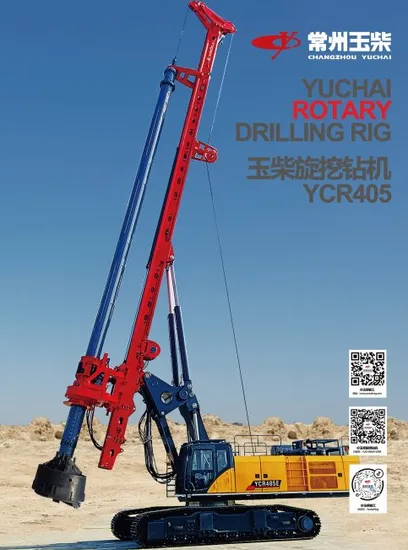

Yuchai Ycr405e Rotary Drilling Rig
| US$300,000.00-320,000.00 | 1 units (MOQ) |
Basic Info.
Model NO.
YCR495E
Type
Rotary Drilling Rig
Shotcrete Type
Dry
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
180m²/h
Feeding Height
1400mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Red
Engine Model
Qsx15
Engine Power
410kw
Rated Speed (Rpm)
1900rpm
Maximum Drilling
2600mm
Total Mass of The Entire Machine
97t
Transport Package
19605*3620*3588
Specification
11135*4900*26233
Trademark
YUCHAI
Origin
Changsha
HS Code
8705909000
Production Capacity
100units/Year
Product Description
Product Parameters| (Main parameter) | (Units) | (Parameters) | |
| Chasis | |||
| EngineModel | QSX15 | ||
| RatedPower/RotarySpeed | kW/rpm | 410/1950 | |
| Track width(margin) | mm | 4900 | |
| Track shoe width | mm | 800 | |
| Traction force | kN | 668 | |
| RotaryDrive | |||
| Max.output torque | kN.m | 405 | |
| Rotaryspeed | rpm | 6~27 | |
| Max.pull-down piston push | kN | 330 | |
| Max.pull-down piston pull | kN | 400 | |
| Max.pull-down piston strlke | mm | 6000 | |
| Mainwinch | |||
| Max.pulling force | kN | 385 | |
| Max.pulling speed | m/min | 75 | |
| Wire Rope Diameter | mm | 36 | |
| Auxiliary winch | |||
| Max.pulling force | kN | 100 | |
| Max.pulling speed | m/min | 66 | |
| Wire Rope Diameter | mm | 20 | |
| MastRake | |||
| Forwards backwards | 5 | ||
| Sidebackwards | ±4 | ||
| Hydraulic system | |||
| Max.working pressure of main pump | MPa | 33 | |
| Drilling hole | |||
| Max.Drilling Diameter | mm | 2600/3000() | |
| IThe max.drilling depthI | m | 99(18m) | |
| The max.drilling depth | m | 66(18m) | |
| Main machine | |||
| Total working weight | t | 120 | |
| Transportation weight(Removethe rotating device) | t | 97 | |
| Transporting state sizeI | mm | 19605×3620×3588 | |
| Working statesize | mm | 11135×4900×26233 | |
| Recommended drill pipe type | |||
| Friction rod configuration | MZ 530-6×18 m | ||
| Machine lock lever configuration | JS 530-4×18 m | ||
Detailed Photos
