Waterproof Hidden Electronic Lock for Outdoor Cabinet Lockers with CE

Product Description

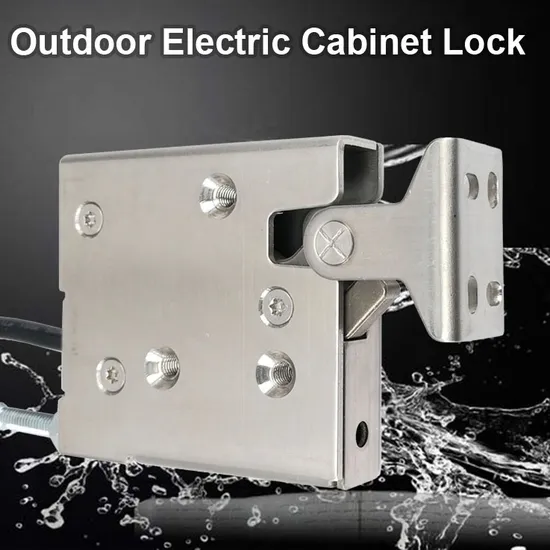

Outdoor Electronic Rotary Latch MD1220SPH is designed for outdoor locking solution. With sealed solenoid and water proof micro switch, it is rated for IP57. Robust all metal construction allows MD series lock operate against heavy mechanical load. An optional built-in door sensor provides reporting of open/ close status and mechanical kits for manual override in case of power failure.
Surface mounting either vertically or horizontally offers easy and flexible installation. The cabinet lock is compatible with any access control system or standalone cabinet locking. With easy push-to-close operation, the lock is designed with internal spring rod to push door open when electrified. It simplifies the access control of enclosures in a wild variety of applications.
Features
Stainless steel metal construction Surface-mounted compact electric lock Convenient mechanical override enables manual release during power failure Operates against heavy mechanical load Accepts access control signals from wireless RF key fobs or proximity cards, numeric keypads, card readers, Can be fitted to locker, mail box and drawers etc
Specifications

Operation Voltage	12/24VDC intermittent ±10%
Power Consumption	12V DC 2000mA
Operation Mode	Fail Locked
Holding Force	600KG
Maximum power on time	Less than 30 second
Solenoid	Rated for intermittence use
Cycle Rating	More than 1, 000, 000 times
Working Temperature	-20ºC ~ +60ºC
Dimensions LxWxH	72mm*67mm*18mm
Gross Weight	250g
Protection Class	IP35
Compliance	CE and RoHS certificate

Part No.

Part No	Operating Current	Micro switch	Manual Override	Construction
MD1215	12VDC@1500mA	Without	Hidden	Steel
MD1215S	12VDC@1500mA	With	Hidden	Steel
MD1215L	12VDC@1500mA	Without	Exposed	Steel
MD1215LS	12VDC@1500mA	With	Exposed	Steel
MD1220	12VDC@2000mA	Without	Hidden	Steel
MD1220S	12VDC@2000mA	With	Hidden	Steel
MD1220L	12VDC@2000mA	Without	Exposed	Steel
MD1220LS	12VDC@2000mA	With	Exposed	Steel
MD1215H	12VDC@1500mA	Without	Hidden	Stainless S.
MD1215SH	12VDC@1500mA	With	Hidden	Stainless S.
MD1215LH	12VDC@1500mA	Without	Exposed	Stainless S.
MD1215LSH	12VDC@1500mA	With	Exposed	Stainless S.
MD1220H	12VDC@2000mA	Without	Hidden	Stainless S.
MD1220SH	12VDC@2000mA	With	Hidden	Stainless S.
MD1220LH	12VDC@2000mA	Without	Exposed	Stainless S.
MD1220LSH	12VDC@2000mA	With	Exposed	Stainless S.
MD1215P	12VDC@1500mA	Without	Hidden	Water proof
MD1215SP	12VDC@1500mA	With	Hidden	Water proof
MD1215LP	12VDC@1500mA	Without	Exposed	Water proof
MD1215LSP	12VDC@1500mA	With	Exposed	Water proof
MD1220P	12VDC@2000mA	Without	Hidden	Water proof
MD1220SP	12VDC@2000mA	With	Hidden	Water proof
MD1220LP	12VDC@2000mA	Without	Exposed	Water proof
MD1220LSP	12VDC@2000mA	With	Exposed	Water proof

Application Vending machine Electronic locker Van door Gun or weapon cabinets Bike or scooter station Utility cabinets and drawers Museum display cases Pharmaceutical cabinets and drawers
Warranty
We guaranty that the products you order from us is true, accurate, current, and complete in all respects; You will be notified immediately of any changes to product information by e-mail. We offer two years warranty from the delivery date for any product in case of original defect or dysfunction. The buyer should return the product in the original conditions to us and should bear the shipping costs and we will bear the cost of parts replacement. We strive for 100% customer satisfaction on every sale we complete.
