Factory Price 1300*2500mm CO2 Laser Cutter Ball Screw 300W CO2 Laser Cutting Engraving Machine for 20mm Wood Acrylic

Product Description

Factory price 1300*2500mm co2 laser cutter ball screw 300w co2 laser cutting engraving machine for 20mm wood acrylic
Product Description :
Configuration of our 1325 ball screw 300w co2 laser cutting machine :
1.300W/220W watts Big power laser tube
2. High-strength integrated machine body
3. Y-axis unilateral ball screw servo drive
4. X-axis precision lead screw module servo drive
5. TBI lead screw, Taiwan CSK track
6. One-piece aluminum alloy gantry
7. Ruida edge-finding cutting system
8. Constant laser path design
9. Famous S&A brand industrial chiller CW6000
10. Super suction design, double funnel, double smoke pipe, two 750W exhaust fans
11. Multifunctional toolbox.

Model	DW-1325
Processing area	1300*2500mm
Laser tube	200W/300W
Engraving speed	0-60000mm/min
Cutting speed	0-10000mm/min
Cutting thickness	30mm Acrylic
Minimum character	Letter 1.0 x 1.0mm
Support graphic format	AI, PLT,BMP, DST, DWG, DXF,
Resolution ratio	<0.01mm
Location precision	<0.01mm
Power supply	220V±10% /50HZ , 110V±10%//60HZ
Operating temperature	5%-95% Free of condensed water
Laser tube's life	10000 hours
Interface	USB
Control system	RUIDA
Packing Weight	2000KG
Packing size	330*186*110cm

Detailed Images:
Factory price 1300*2500mm co2 laser cutter ball screw 300w co2 laser cutting engraving machine for 20mm wood acrylic

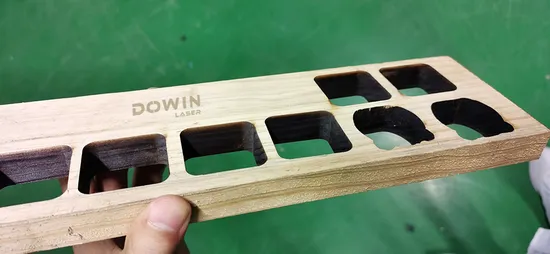

Application : Factory price 1300*2500mm co2 laser cutter ball screw 300w co2 laser cutting engraving machine for 20mm wood acrylic
Suitable for thick acrylic and wood cutting, high-precision high-gloss organic materials .acrylic products cutting related industries, advertising industry, lighting industry, photo frame and other woodworking industries, architectural model industry, handicrafts, decoration industry, clothing proofing, leather industry, shoe industry, furniture industry, packaging and printing industry , craft gift industry, etc.
About US Dowin Tech Co., Ltd. specializes in R&D and production of various laser equipment, such as laser cutting, engraving and marking. All series machines are with One-three year's warranty. Within the laser engraving and cutting field, Dowin has passed CE and FDA qualifications. Facing the chances and challenges of Global Economic Integration, as well as being offered with opportunities of Knowledge Economy Era, brave and passionate, initiatively implement the enterprise management policy: "Scientific Management, Continuous Improvement, Rapid Development, Credit First, Quality First". We aim to be a professional, branding, and International suppliers for various industrial solutions.
Quality and credit goes all the way. Dowin a company surviving fierce market competition, has very strong national culture, and develops shoulder by shoulder with the world and this Era. We are determined to achieve our dreams step by step with the advantages of high technology.
Our Service 1.Guarantee for 1 years.
2. Maintenance free of charge for 1 years .
3.We will provide the consumable parts at an agency price.
4.24 hours online service, free technical support.
5. Friendly English version manual.
6.Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
7.We have manual instruction and CD (Guiding Videos) for software Installation, operation and machine's using and maintenance.

FAQ Q: Do I need two laser machines to engrave and cut separately?
A: No, the laser machines we provide are capable of both engraving and cutting. One machine alone can fulfill the two purposes.
Q: What kind of graphic format does it support?
A: JPG, PNG, BMP, PLT, DST, DXF, CDR, AI, DSB, GIF, MNG, TIF, TGA, PCX, JP2, JPC, PGX, RAS, PNM, SKA, RAW , etc.
Q: How to distinguish laser tubes with different powers and applications?
1. Laser tube length (relatively speaking, the longer, the bigger)
2. Laser tube diameter (relatively speaking, the thicker, the bigger)
3. The bigger a laser tube power is, the deeper the machine can cut, but its light spot is bigger. So, it is better to use a machine with a low-power laser tube to engrave, such as 40W,50W , 60W or 80W.
Q: What are the applications for laser tubes with different powers? For example, what is the maximum thickness of Acrylic that laser machine can cut?
40W laser tube 5mm Acrylic
50W laser tube 6mm Acrylic
60W laser tube 10mm Acrylic
80W laser tube 15mm Acrylic
100W laser tube 18mm Acrylic
130W laser tube 20mm Acrylic
150W laser tube 25mm Acrylic
We have also document telling what cutting /engraving speed for different materials.
Q: In general, how long is the service life of a laser tube?
A: Generally, a laser tube's service life can reach 5000 hours to 10000 hours depending on the specific usage. For example, if it works 8 hours per day, the detailed data is as follows:
1. If you set the power at 20-30% of the total power, the service life is about 1-2 years.
2. If you set the power at 40-50% of the total power, the service life is about 1 year.
3. If you set the power at 70-80% of the total power, the service life is about 6-8 months.
Q: How can I tell the power of a laser tube has been exhausted?
A: The beam color of a new laser tube in operation is purple. When the power is gradually depleted, the color will become white.
Q: Is it better to increase blow to improve laser processing performance?
A: For some thick materials, it works. But, when carving some other materials, you need to blow less.
Q: How long will it take to learn to operate a laser machine?
A: If you are able to use some basic graphic design software, it will only take a few hours to master the operation. You just need to do some simple tests on different processing materials to know how to set the correct speed and laser power.
Q: Is a laser machine in operation harmful to our bodies?
A: It is not harmful as long as the laser is not exposed directly to skin and eyes.
Q: What's the guarantee, in case the machine breaks down?
A:The machine has one year guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free, if the problems are caused by quality problem under "normal use".
Q: How's the payment? How long is the delivery time?
Western Union(WU),Telegraphic Transfer(T/T) to our official company bank account or pay Via alibbaba trade assurance order.
For standard machines, it would be 3-5days; For non-standard machines and customized machines according to client's specific requirements, it would be 7-15 days.
