US$2,850.00-6,300.00
|
1 Set
(MOQ)
|
Basic Info.
Warranty
3 Years Warranty
Name

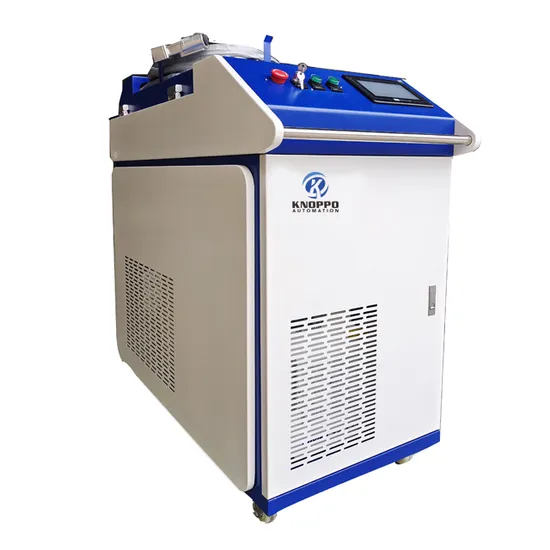

Hand Held Fiber Laser Cleaning Machine
Laser Source
Ipg Max Jpt Raycus
Laser Power
1000W 1500W 2000W 3000W
Cooling Type
Water Cooling
Auto Wire Feeder
Standard
Functions
Welding Cutting Cleaning
Color
Blue White / Red Black
Dimensions
1400*700*1200mm
Advantages
Max 300mm Cleaning Width
Transport Package
Wooden Box
Specification
1400*700*1200mm
Production Capacity
500 Sets/Month
Packaging & Delivery
Package Size
140.00cm * 70.00cm * 120.00cm
Package Gross Weight
200.000kg
Product Description
Product Description
APPLICATION :
Metalsurface rust removal, Surfacepaint removal and paint treatment, Surfaceoil, stains, dirt cleaning, Surfacecoating, clear coating, Weldingsurface / spray surface pretreatment, Stonesurface dust and attachment removal, Rubbermold residue cleaning.A Metal surface cleaningB Removal paint of metal surfaceC stains cleaning on the surfaceD Surface coating cleaningE Pre-treatment of welding surface cleaningF Stone surface cleaningG Rubber mold residue cleaning
Detailed Photos
Raycus Laser Source and S&A Water Chiller
Raycus is largest manufacturer of laser source in China , can weld carbon steel , stainless steel and aluminium etc . Good quality
and long life . Suitablef for 24 hours continuous working.
Relfar Laser Cleaning Head
With hot temperature alarm and double protections lens , very sale . small and light , easy to operation.
Relfar Control Sytsem
Different cleaning parameters is saved on system , when you weld metal , you need only choose it . Also support multi languages , such as English , Polish , Spainish , Russian , Korean , Japanese , Portugal etc .
France Schineider Electric Parts
European CE standard , good quality and long lifetime .
Product Parameters
NO | Description | Parameter |
1 | Model | KC-M |
2 | Laser Power | 1000W 1500W 2000W 3000W |
3 | Laser Type | MAX / Raycus |
4 | Central wavelength | 1064nm |
5 | Line length | 10 M |
6 | Cleaning efficiency | 12 m3/h |
7 | Support language | English, Chinese, Japanese, Korean, Russian, Spanish, Polish |
8 | Cooling Type | Water cooling |
9 | Average Power (W), Max | 1000W / 1500W/ 2000W/3000W |
10 | Average Power (W), Output Range(If adjustable)
| 0-100 |
11 | Pulse-Frequency (KHz),Range | 20-200 |
12 | Scanning Width (mm) | 10-150/300
|
13 | Expected Focal Distance(mm) | 160mm |
14 | Input Power | 380V/220V, 50/60H |
15 | Dimensions | 1300mm×700mm×1150mm |
16 | Weight | 270KG |
Packaging & Shipping
Wooden box package , safedelivery
Certifications
Our fiber laser welding machine have CE certificates , all electric drawing and quality is suitable European standard .
After Sales Service
*3 years guarantee of the whole machine and we give lifetime maintenance free of charge.
*Free training to make sure you master the operating of machine at our factory.
* 24 hours online services through Whatsapp, Skype, Email or on the phone.
*Engineers available for overseas training and after-sale services.
* Friendly English version manual and operation video CD disk.
Company Profile
Knoppo Automation is one of the world's leading manufacturers of high-tech industrial laser solutions, dedicated to providing laser intelligent equipment solutions and enabling our customers in various branches around the world to become more efficient and competitive. With more than 15,000 laser cutting systems in the market and a rapidly increasing global base, Knoppo Automation is in a favorable position to serve the international customer base, guaranteeing highest quality and shortest response times in already more than 100 countries. Our focus is on the innovation, continuous improvement and rapid development of technologies, all of which aim to increase efficiencies and flexibility, minimize costs while generating the highest levels of environmental friendliness and sustainability to our all benefit. We aim to provide key technologies and customized integration solutions for Industry 4.0 and smart factories, helping enterprises to make perfect use of the many opportunities arising in the digital age.
The product range not only comprises of flat sheet cutting systems in various designs and dimensions, but also of laser tube cutting systems, CO2 laser cutting engraving machine , laser welding machine etc . With our focused, highly skilled and experienced R & D team and a perfectly equipped and trained systematic after-sales technical department, we truly provide customer-oriented service experience.
