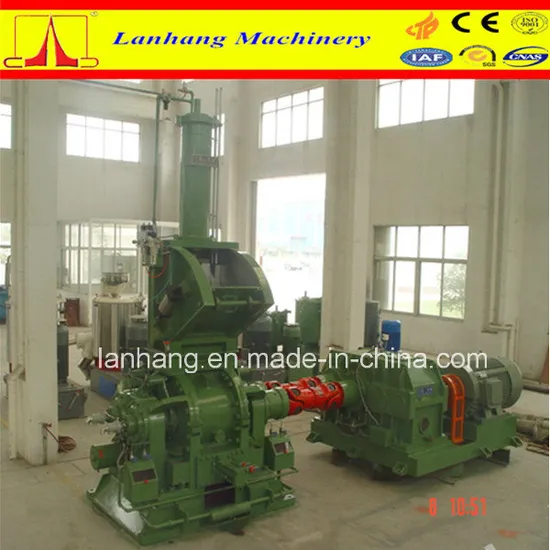

Lanhang Brand Natural Lx-110L Rubber Banbury Mixer

Product Description

Company Information
Founded in 1992, Zhangjiagang Lanhang Machinery Co., Ltd. is a private enterprise integrating scientific research, production, marketing and service of plastic machinery into one complete whole. After 10 years of hard work and continued efforts to improve product quality, we passed ISO9001 certification for our products.
Our "Lanhang" brand of planetary roll extruders, straining extruders, powerful horsepower dense mixers, mixing rolls, and high-speed mixers are the backbone of our company.
At Lanhang Machinery, we adhere to the business ideals of relying on high quality for continued success and credibility for sustained development.

we sincerely welcome customers to cooperate with us to develop rewarding business partnerships.
Product name : best seller and intensive natural 120L rubber banbury mixer
key word : rubber banbury mixer

Application:
This intensive mixer has a wide range of applications, including in mixing raw materials, such as raw rubber, synthetic rubber, resin, asphalt, celluiese, PP, PVC or EVA into even mixed stock. The body and the structure of thid machine is strong amd druable, making it possible for heavy-duty mixing and refining operation.
Dust stop device has been specially designed to effectively prevent leakage of raw materials and other ingredients.

Features:
1. long service life
2. simple operation
3. good results
4. east maintence
5. convenient of worn-out parts

Two types of discharge door:
1. downward door type
2. the slide door type

Main Technical Parameter:

project\model	LX-75L	LX-100L	LX-120L	LX-160L	LX-255L	LX-270L	LX-410L	LH-100Y	LH-145Y	LH-200Y	LH-250L	LH-330L
roter style	tangential							intermesh
total volume of mixer	75	100	120	160	255	270	410	100	145	200	250	330
fill factor	0.75							0.65
rotating speed of rear rotor(r/min)	40	40	40	40	4-40 6-60	4-40	6-60	10-60
ram max pressure(Mpa)	0.55				0.58	0.58	0.62	0.55	0.58	0.58	0.62	0.62
max capacity(T/H)	1.25	1.6	1.95	2.64	4.6	4.6	7.4	1.36	2.2	3.05	4.2	5
main motor power(kw)	160	220	310	355	1500	1250	2500	520	720	1100	1320	1700
weight(t)	20	24	26	26	55	55	76	19	29	48	65	80
