US$40.00-180.00
|
1 Piece
(MOQ)
|
Basic Info.
Number of Stator
Single-Phase
Species
Yc Series Single Phase
Rotor Structure
Squirrel-Cage
Casing Protection
Protection Type
Starting Mode
Direct on-line Starting
Certification
ISO9001, CCC, CE
Power Rating
0.37to 7.5kw
Performance Duty
S1, Continuous Duty,Standard
Voltage
110V/220V/230V/240V
Transport Package
Carton Box/Wooden Case
Specification
80 to 132mm
Production Capacity
1000PCS/Day
Product Description
Product Description

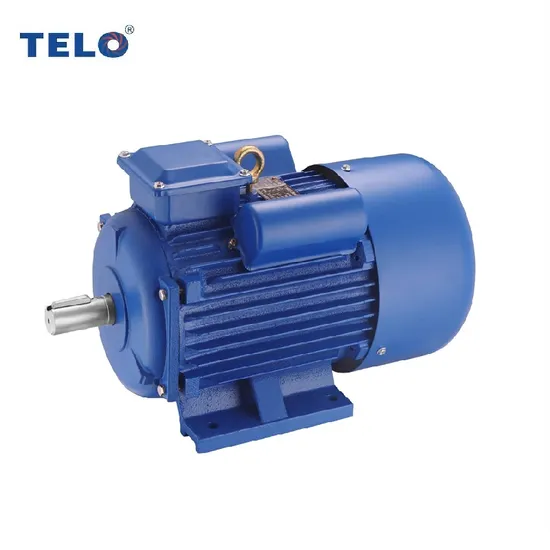

Telo IE2 YC/YCL High Starting Torque Single Phase Asynchronous Induction Electric Motors
Usage: Air compressors, refrigerators, medical equipment and other machine tools.
Features: High starting torque, low energy consumption.Cast iron and cast aluminum frames.The rated voltage of the basic type is 220V/50Hz.Can be equipped with 110V/220v, 110V, 240V, 60Hz.
Description | Standard |
Type | Squirrel cage, Totally Enclosed Fan Cooled, TEFC, Induction motor |
Power Rating | 0.37 to 7.5 kW; 2,4 Poles |
Efficiency | IE2 |
Frame size | 80 to 132 mm |
Frame materials | cast iron body |
Enclosure | IP 54 or IP 55 |
Insulation class | Class F (optional: Class H) |
Frequency | 50Hz/60Hz |
Direction of rotation | Bi-directional |
Terminal box | Top |
Ambient temp. | -15ºC to +40ºC |
Altitude | Below 1000m sea level |
Performance Duty | S1, continuous duty, standard |
INSTALLATION SIZE
TECHNICAL PARAMETER
Application
Company Profile
Certifications
Our Advantages
FAQ
1. Are you a manufacturer or trading company?
Manufacturer and we have focused on developing and producing electric motors for more than 20 years. Welcome to visit us at your convenience or during your business trip to China
2. ls a customized service available?
Of course, OEM & ODM both are available.
3. What certificates do you have? CE, CCC, ISO9001, etc
4. Can you supply a sample for testing market? Yes, we are a professional manufacturer and can accept samples and small orders.
5. What is your delivery time? It refers to the specific products. Usually, we deliver the motors in 10-45 days, please get in touch with us for details.
6. Payment terms? T/T, L/C at sight, Western Union, etc.
7. Can mix different models in one container? It's ok, we will calculate the space and give suggestions.
8. How does your factory do regarding quality control?
Quality is of the first importance and we always pay high attention to quality control from the beginning to the end of the production. Each product is completely assembled and carefully tested before packaging and shipping
Feel free to contact us!^_^~
