Single Head Qingdao Computer Control Wool and Cotton Draw Frame for OE Spinning Machine Line

Product Description

Product Description

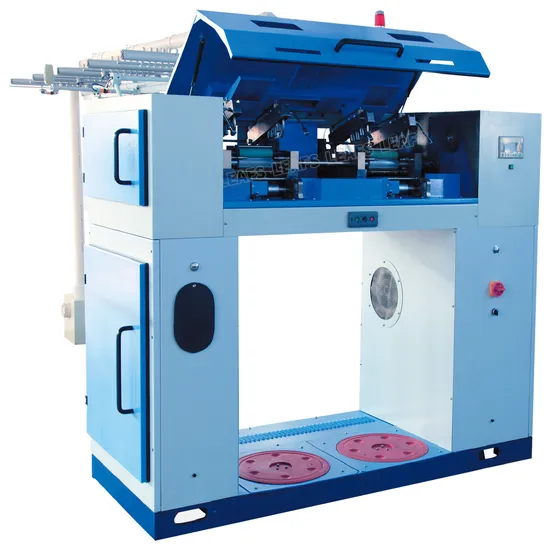

The new type FA316 Draw frame is a new generation draw frame designed on the basis of the advanced technology of the same products at home and abroad. The curvilinear drafting system of 3 over 3 with pressure bar is suitable for cotton, cotton type fiber and middle fiber and their blends of 22-76mm.All kinds of slivers processed by this machine can be high quality after the last passage. The gear box of driving system is in fully-enclosed oil bath. Rocking the handle of the drive changing gear in the headstock can adjust draft and weight change.The front pressure roller is equipped with a multi-speed shifting device, which is suitable for spinning a variety of fibers.

Product Parameters

Delivery number	2 holes
Maximum output speed	600m/min
Total drafting mutiple	5-14 times
Drafting style	4 over 3 with pressure bar
Feeding sliver number	6-8 pcs
Suitable fiber length	15-76mm
Input can dimension	Φ400,Φ500,Φ600,Φ800,Φ900,Φ1000
can height	900,1100(1200)mm
Output can dimension	Φ300,Φ350,Φ400,Φ500 can height: 900,1100mm
Mainframe OAD	2790x950x1645mm
Weight	2200KG
Motor power	4kw

Features
1. This machine is suitable for a wide variety of spinning fiber, and output rate is high.
2. Four up and four down attached guide roller, and pressure bar type dual zone curve drafting structure, makes sure to have an excellent quality and a quality stability
3. Main motor users can control stepless speed regulation with choice of frequency converter, it ensures steady increase in speed and strip quality
4. Programmable controller PLC and text screen operation is conducive to the stability and the reliability of electrical control
5. The ideal guide photoelectric automatic stop device, machine holds a photoelectric automatic stop device , sliver flowing frame automatic stop device , so that the fault automatic stop more reliable
6. The user can choose the automatic doffing device, can reduce the labor intensity of operators, in order to improve work efficiency07. The user can choose eight-way detection device
Customer Show


Related machine
Long fiber worsted drawing frame machine
The long fiber worsted draw frame machine is suitable for the blending and drafting of cotton, wool, hemp, synthetic fibers,and blended long and short fibers ranging from 22 to 126mm in length, making different fibers more uniform,straight, and parallel in mixing.
This machine operates with both eyes, with a strip production speed of max.500m/min and a feeding rate of 3-8 pieces. The maximum feed rate per meter for a single eye is 80g,and the maximum strip production weight can reach12.5g/meter.
Due to the weight and thickness of woolen fabric,the head and roller working surface we use is specially designed and extended. During fine adjustment,there is no need to change the light and heavy teeth. It can be adjusted by shaking the handle.

Delivery number	2 holes
Max output speed	500m/min
Total drafting mutiple	5-11 times
Drafting style	3 over 3 with pressure bar
Feeding sliver number	6-8 pcs
Suitable fiber length	80-120mm
Input can dimension	Φ400,Φ500,Φ600,Φ800,Φ900,Φ1000
can height	900,1100(1200)mm
Output can dimension	Φ300,Φ350,Φ400,Φ500 can height: 900,1100mm
Dimension	2490x1000x2110mm
Weight	2000KG
Motor power	4.75 kw
